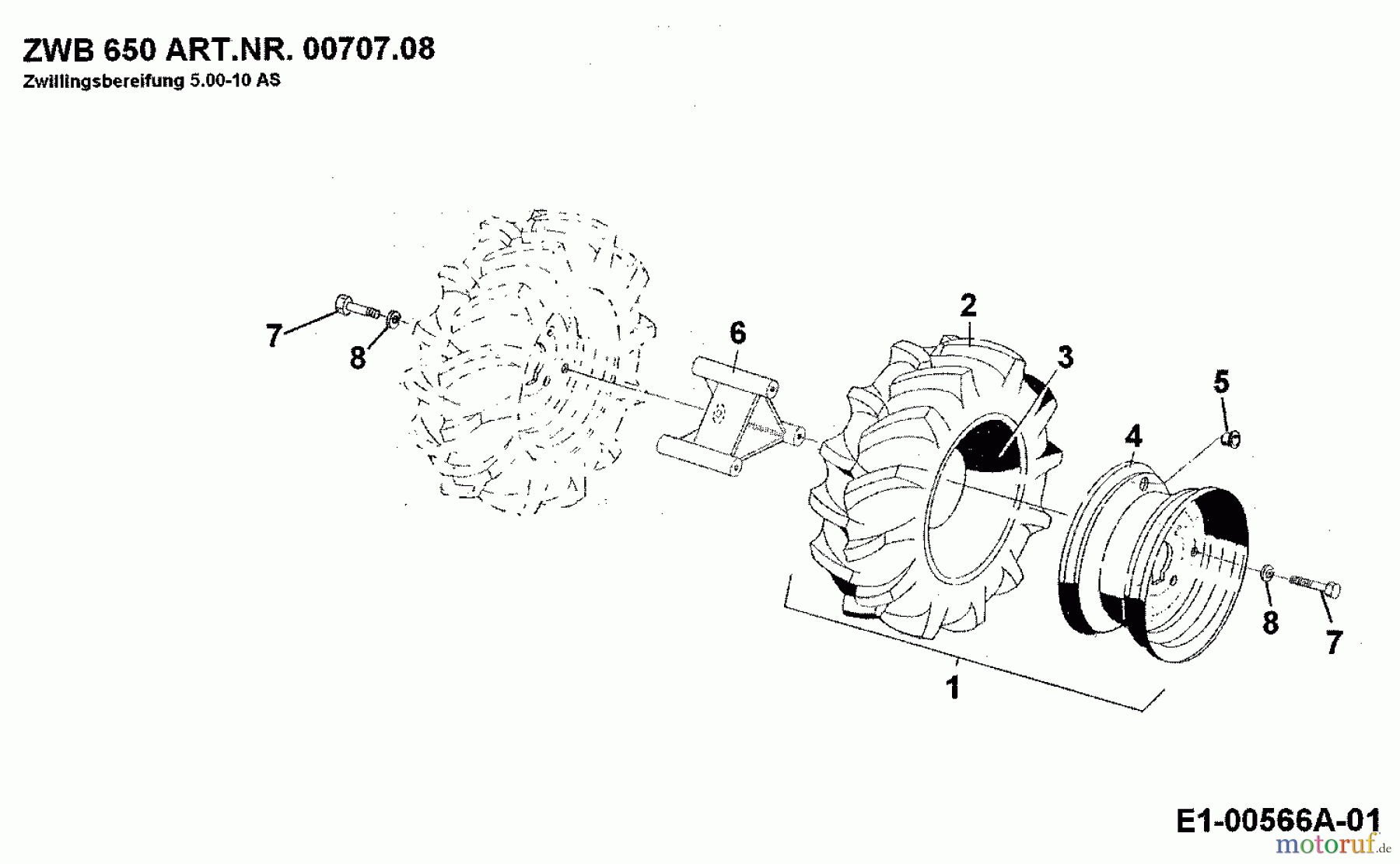

MTD Accessories Double tires ZWB 650 (5.00-10 AS) for 550, 650 00707.08 (1992) Basic machine Spareparts
Basic machine 00707.08 (1992)
| Pos | Article Number | Description | |
| 1 | 071.29.827 | Wheel assy | |
| 1A | 071.29.817 | Wheel assy | |
| 2 | 000.76.013 | Tire | |
| 3 | 000.76.014 | Hose | |
| 4 | 071.29.833 | Rim assy. | |
| 5 | 000.34.042 | BUSHING | |
| 6 | 071.29.828 | ADAPTER | |
| 7 | 21.1444.15 | Screw | |
| 8 | 24.8195.60 | Spring washer | |
