BOSTITCH PNEUMATIC STAPLER 650S5-1 Spareparts

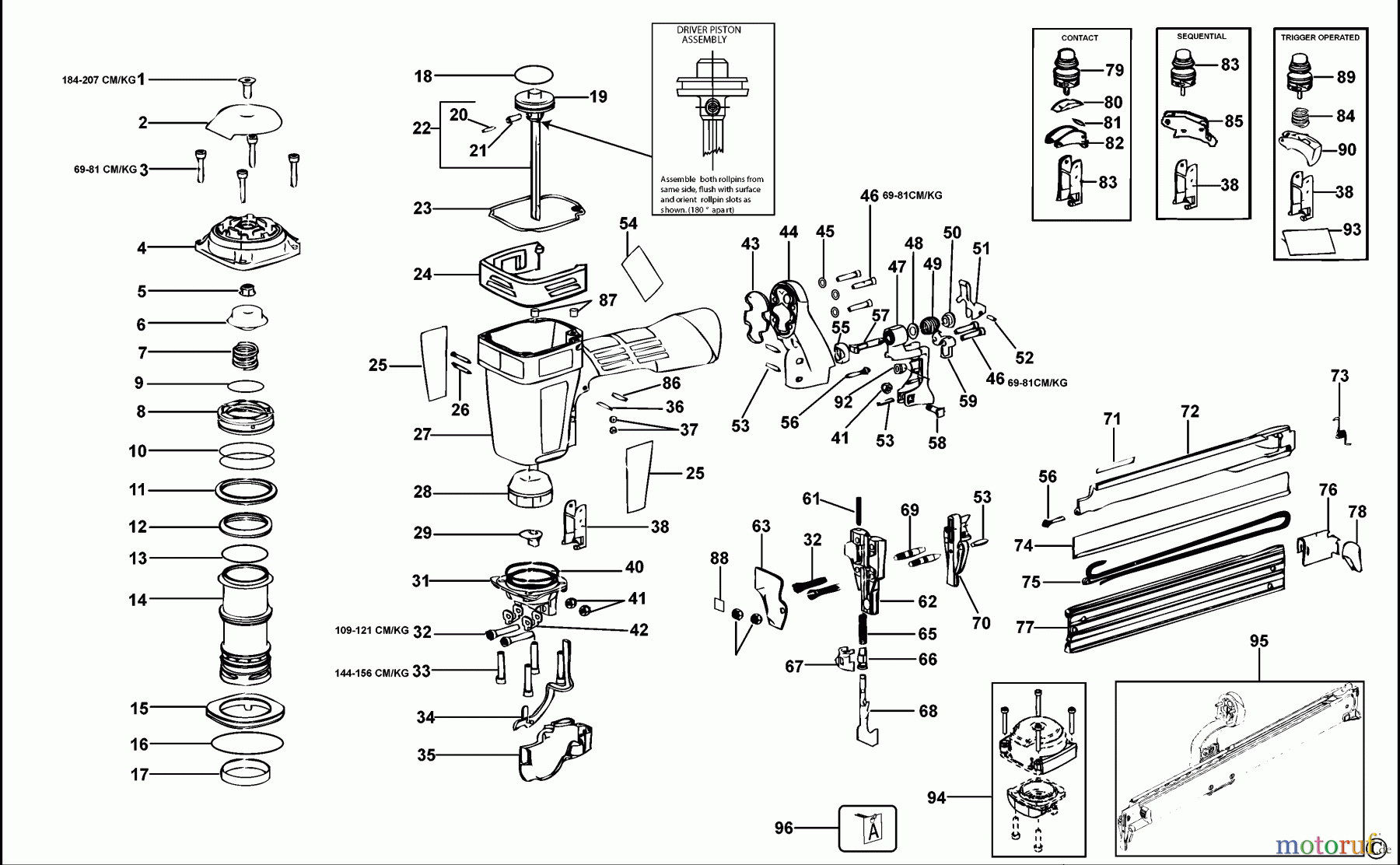

650S5-1 PNEUMATIC STAPLER
| Pos | Article Number | Description | |
| 2 | SB-104585 | DEFLECTOR | |
| 4 | SB-105787 | CAP | |
| 6 | SB-105812 | BUMPER | |
| 8 | SB-104569 | VALVE | |
| 11 | SB-112729 | RETAINER | |
| 12 | SB-104594 | SEAL | |
| 14 | SB-105796 | CYLINDER | |
| 15 | SB-105815 | O RING | |
| 16 | SB-104580 | RING | |
| 18 | SB-105817 | O RING | |
| 19 | SB-103881 | PISTON | |
| 22 | SB-106079 | SERVICE KIT | |
| 23 | SB-104620 | SEAL | |
| 24 | SB-107148 | PROTECTOR | |
| 31 | SB-104609 | FRAME | |
| 34 | SB-105775 | ARM | |
| 35 | SB-105818 | COVER | |
| 38 | SB-106954 | GUIDE SA | |
| 43 | SB-104619 | SEAL | |
| 62 | SB-107219 | NOSE SA | |
| 65 | SB-105784 | SPRING | |
| 68 | SB-103793 | CONTACT PLATE | |
| 70 | SB-103873 | TIP | |
| 71 | SB-105799 | IDENTITY LABEL | |
| 77 | SB-105793 | CORE | |
| 87 | SB-105778 | SLEEVE | |
