WUERTH SANDING FRAME 702589001 Spareparts

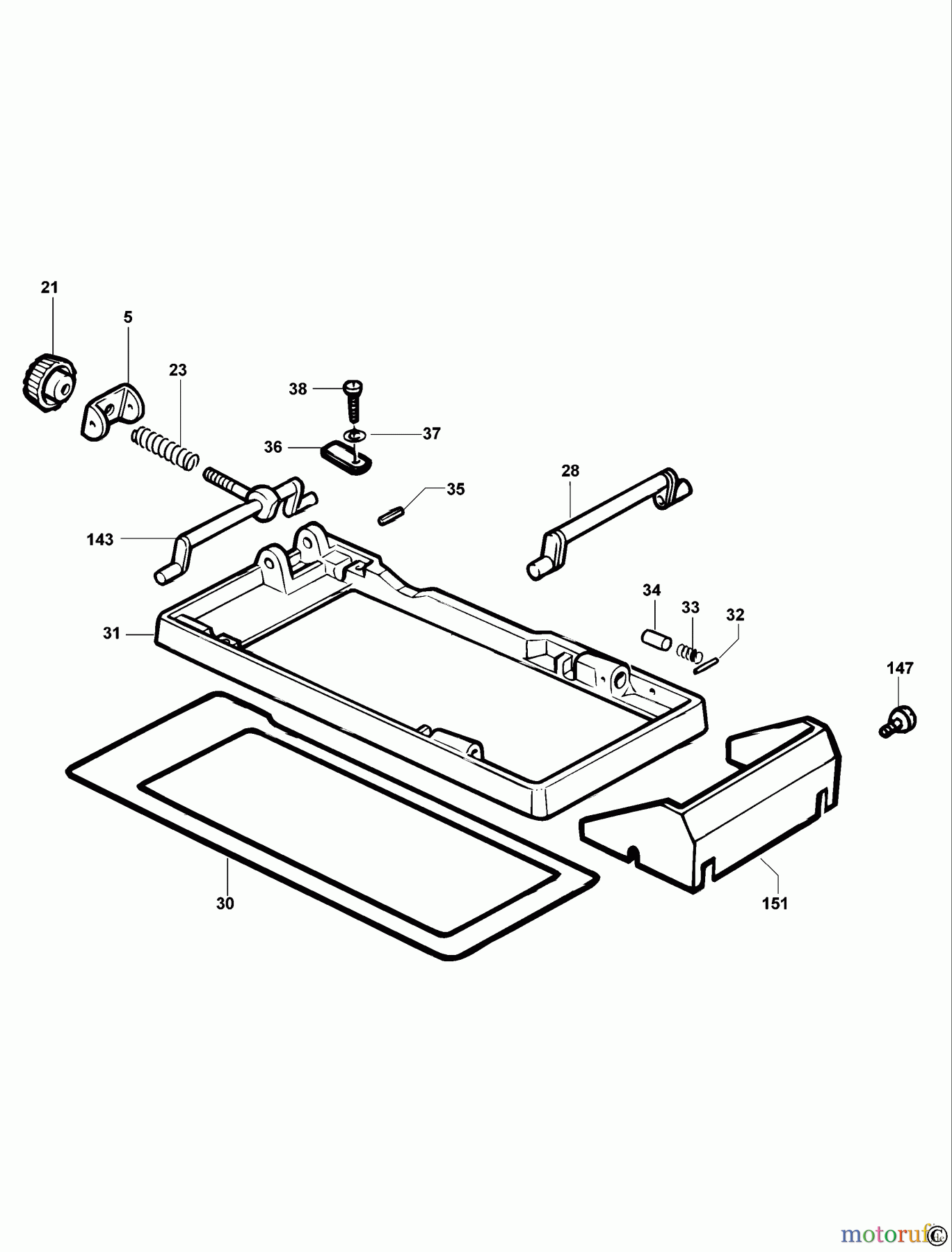

702589001 SANDING FRAME
| Pos | Article Number | Description | |
| 5 | SB-324919-00 | BRACKET | |
| 21 | SB-248428-00 | KNOB | |
| 23 | SB-325094-00 | SPRING | |
| 28 | SB-050239700 | SHAFT | |
| 30 | SB-050252200 | PLATE | |
| 31 | SB-248832-00 | FRAME SA | |
| 32 | SB-069913906 | PIN | |
| 33 | SB-013931037 | SPRING | |
| 34 | SB-050230401 | SCREW | |
| 35 | SB-248769-00 | PIN | |
| 36 | SB-050230000 | PLATE | |
| 37 | SB-725163 | WASHER | |
| 38 | SB-249415-01 | SCREW | |
| 143 | SB-248096-00 | SHAFT SA | |
| 147 | SB-249424-01 | SCREW | |
| 151 | SB-324127-06 | COVER | |
