DEWALT 5000RPM LAG D28493P Spareparts

D28493P 5000RPM LAG

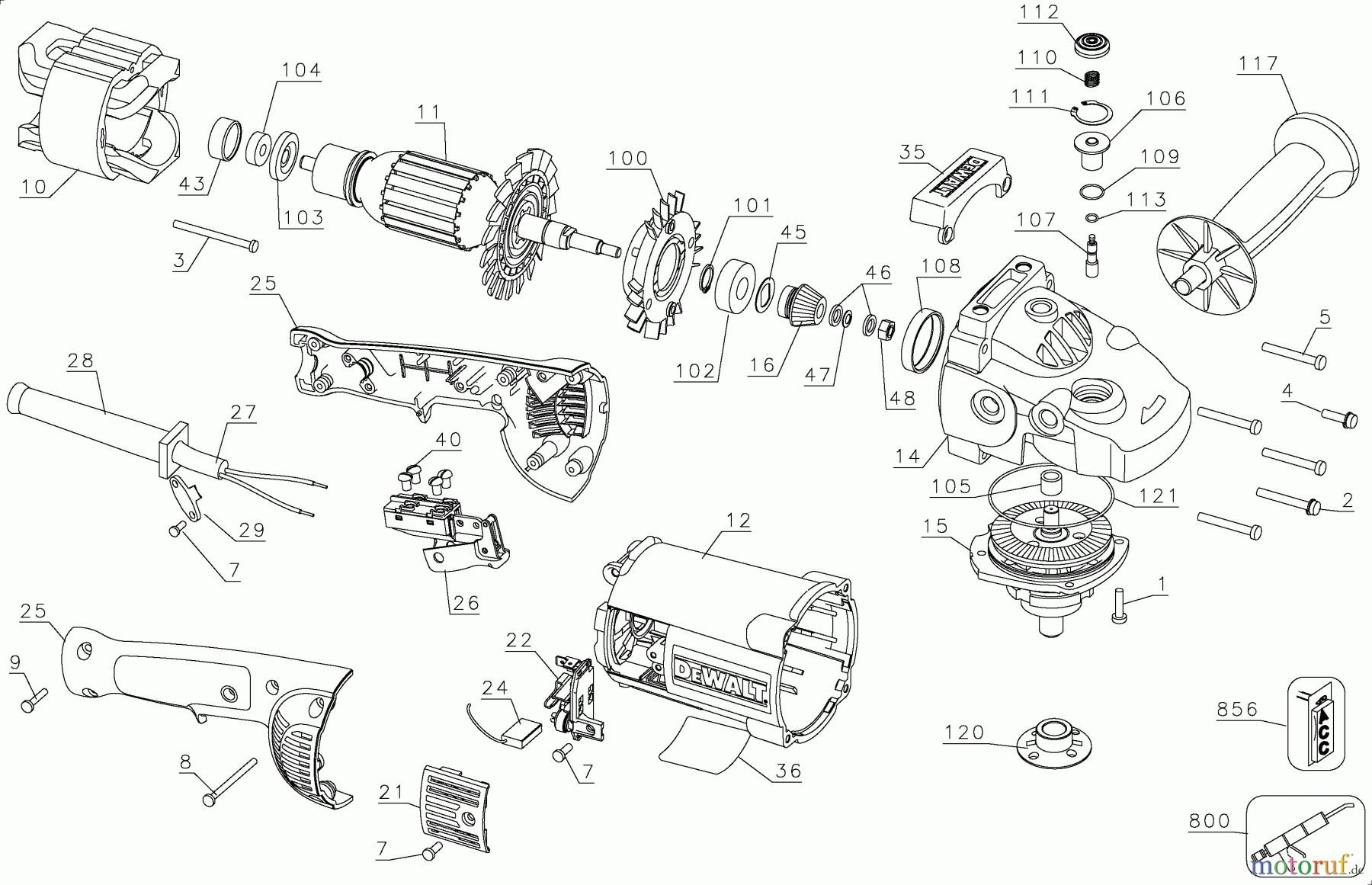

DEWALT Divers 5000RPM LAG D28493P Seite 1
PosArticle NumberDescription
1 SB-330045-15SCREW
2 SB-330019-26SCREW
3 SB-330019-19SCREW
4 SB-330045-70SCREW
5 SB-330045-67SCREW
7 SB-330019-11SCREW
8 SB-330019-18SCREW
9 SB-330019-32SCREW
10 SB-187272-02FIELD 220V
11 SB-394379-28ARM.,FAN & BRG.
12 SB-393239-00FIELD CASE
14 SB-N920128GEAR CASE SA
15 SB-398621-14GEAR CASE COVER ASSY.
16 SB-610239-00PINION ASSY.
21 SB-394387-00BRUSH COVER
22 SB-617001-00BRUSH HOLDER SA
24 SB-N253999BRUSH PAIR 230V
25 SB-395184-00HANDLE SA
26 SB-394375-00SWITCH
28 SB-604118-00CORD PROTECTOR
29 SB-608780-00CORD CLAMP
35 SB-620579-00BUMPER
36 SB-606186-13NAME PLATE
40 SB-384127-01SCREW
43 SB-609970-00SLEEVE INSULATING
45 SB-608568-00WASHER
46 SB-607502-00WASHER
47 SB-614045-00WASHER SPRING
48 SB-609125-00LOCK NUT
100 SB-393222-00SPACER
101 SB-398605-00RETAINER
102 SB-605040-27BEARING
103 SB-393238-00SHIELD
104 SB-N110359BEARING
105 SB-330004-06BEARING NEEDLE
106 SB-611213-00SLEEVE
107 SB-611212-00LOCK PIN
108 SB-609971-00SLEEVE
109 SB-50049-00RING
110 SB-395029-00SPRING
111 SB-603470-00RETAINER
112 SB-610999-00CAP
113 SB-603608-00O RING
117 SB-651858-00SIDE HANDLE
120 SB-947215-00LOCKING RING
121 SB-397031-00O RING
800 SB-429954-00GREASE
856 SB-352783-04BACKING PAD
