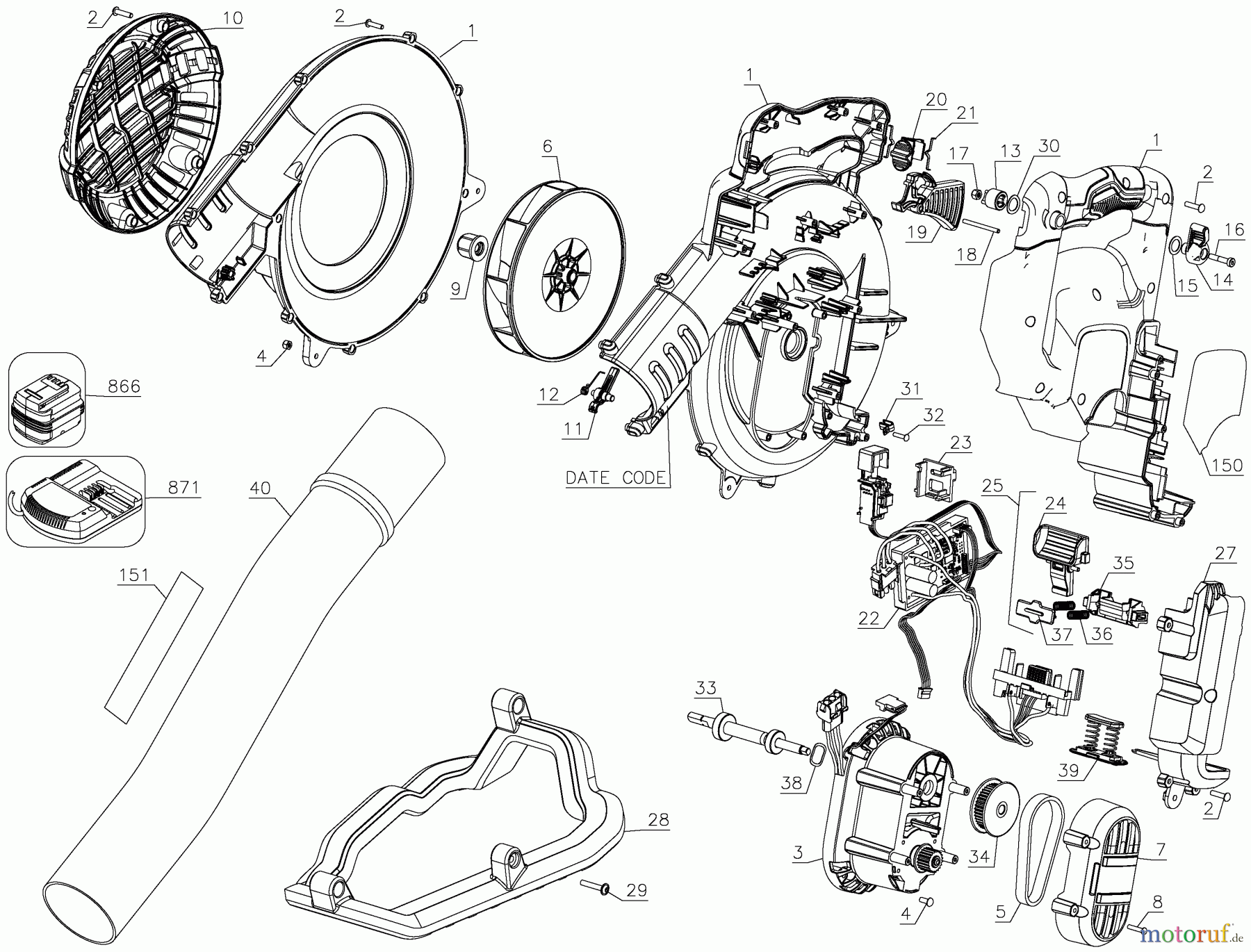

DCBL790H1 40V XR BLOWR-6AH PK

Pos		Article Number	Description
1		SB-90611824	HOUSING&HANDLE
2		SB-330019-03	SCREW
3		SB-90609682SV	MOTOR ASSEMBLY
4		SB-330019-02	SCREW
5		SB-90611527	BELT
6		SB-90614555	FAN SA
7		SB-90606965	COVER
8		SB-330019-00	SCREW
9		SB-90556361	LOCK-NUT
10		SB-90605747	INTAKE COVER
11		SB-90605748	CLIP
12		SB-90609997	SPRING TORSION
13		SB-90605734	CAM
14		SB-90605686	ACTUATOR
15		SB-90608646	WASHER THRUST
16		SB-90611827	SCREW
17		SB-330021-00	STOP NUT
18		SB-90614091	PIN
19		SB-90605685	TRIGGER
20		SB-90610298	SWITCH
21		SB-N014681	LEAF SPRING
22		SB-90635517	MODULE
23		SB-90605114	SWITCH
24		SB-90606556	BUTTON
25		SB-90619743	LATCH
27		SB-90605818	BATTERY CASE SA
28		SB-90606012	FOOT
29		SB-90610772	SCREW
30		SB-90605688	SPRING
31		SB-90611771	CLIP
32		SB-330019-28	SCREW
33		SB-90609681SV	SHAFT ASSEMBLY
34		SB-90604687	PULLEY
35		SB-90606555	LATCH
36		SB-90606558	SPRING
37		SB-90607453	SUPPORT
38		SB-90609683	WASHER
39		SB-90605769	EJECTOR
40		SB-90605738	BLOWER TUBE
150		SB-90619955	RATING LABEL
151		SB-90610659	ID LABEL
866		SB-DCB404	BATTERY PACK
871		SB-DCB114	CHARGER
