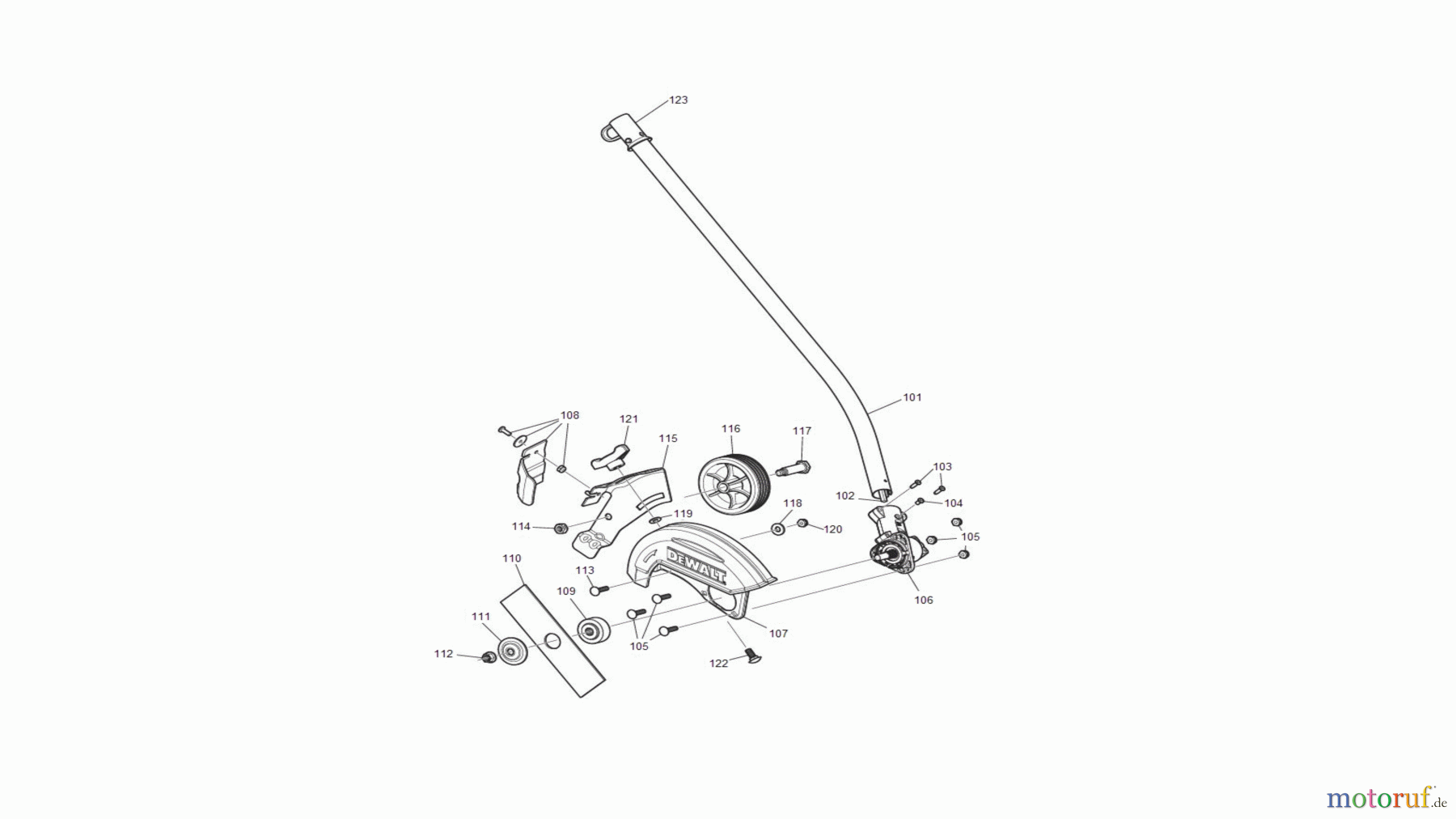

DEWALT LAWNEDGER DCED472B Spareparts
DCED472B LAWNEDGER
| Pos | Article Number | Description | |
| 101 | SB-841-090516S | HOUSING HANDLE | |
| 102 | 753-05267 | DRIVE SHAFT | |
| 103 | 791-182195 | SCREW | |
| 104 | 791-182519 | SCREW | |
| 105 |  | 712-04105 | NUT |
| 106 | 753-04258 | GEAR CASE SA | |
| 107 | SB-N840764 | GUARD | |
| 108 | SB-753-11109 | DEFLECTOR | |
| 109 | 792-10785 | SPACER | |
| 110 | 791-613223B | BLADE | |
| 111 |  | 791-147490 | WASHER |
| 112 | | 712-04105 | NUT |
| 113 | SB-710-04063 | BOLT | |
| 115 | 753-08021 | GUARD | |
| 116 | SB-6356 | WHEEL | |
| 117 | 791-180776 | BOLT | |
| 118 | SB-3010-DW | WASHER | |
| 119 | 736-04107 | WASHER | |
| 120 |  | 2952 | NUT |
| 121 |  | 720-04122 | KNOB |
| 122 |  | 710-0451 | BOLT |
| 123 | 731-08926 | HANGER | |
