DEWALT 18V Self Levelling Laser DW078KH Spareparts

• Start
• DEWALT
• Divers
• 18V Self Levelling Laser
• DW078KH
• Seite 1

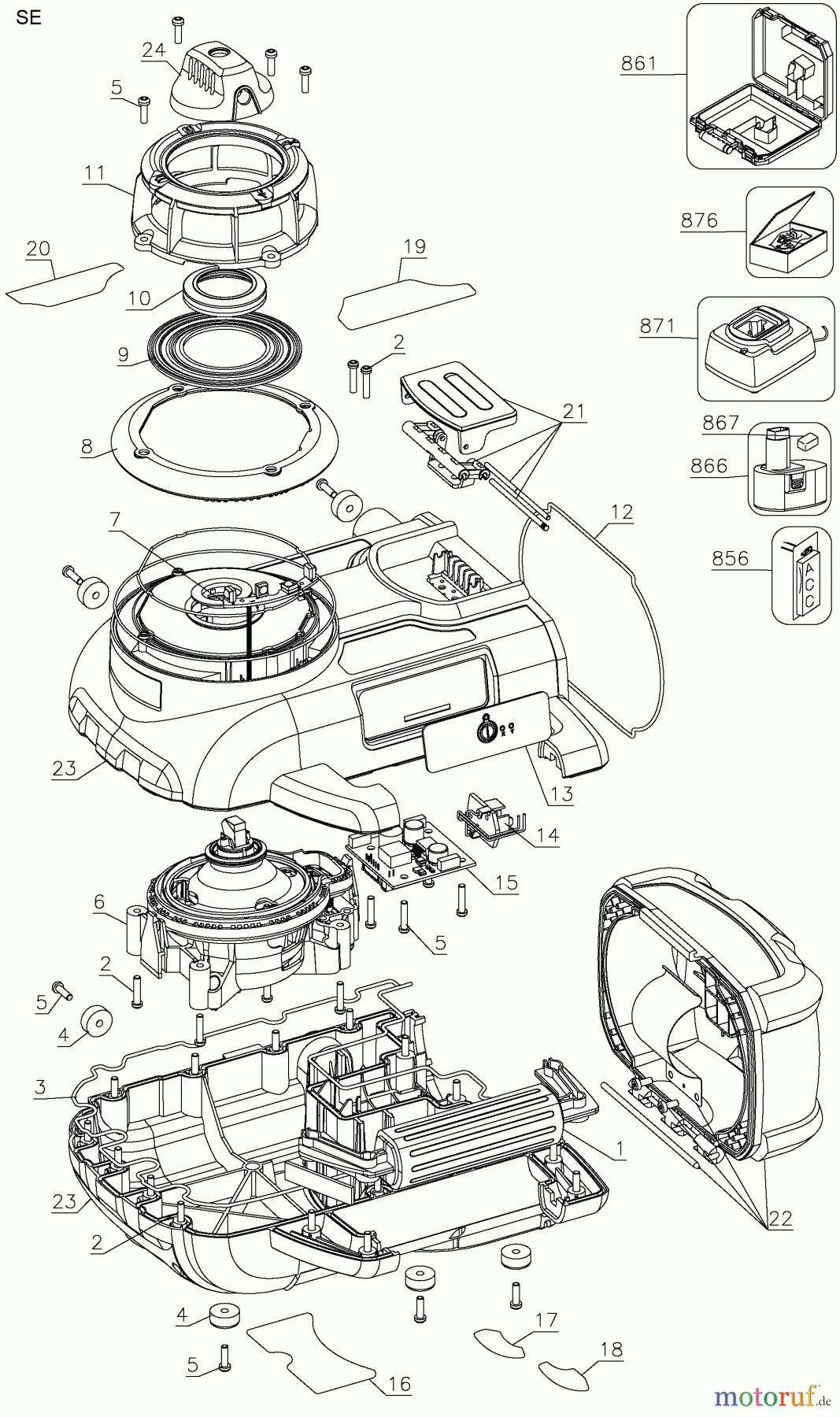

DW078KH 18V Self Levelling Laser

Pos		Article Number	Description
1		SB-5140048-00	HANDLE
2		SB-5140048-14	SCREW
3		SB-5140048-08	O RING
4		SB-5140117-88	FOOT
5		SB-5140048-15	SCREW
6		SB-5140048-05	LASER HEAD SA
7		SB-5140048-17	PCB SA
8		SB-5140048-18	WINDOW
9		SB-5140048-10	RETAINER
10		SB-5140048-13	BELLOWS
11		SB-5140048-01	CAGE
12		SB-5140048-09	O RING
13		SB-650590-00	SELECTOR
14		SB-5140048-11	TERMINAL BLOCK
15		SB-5140048-07	SPEED REGULATOR
16		SB-659409-00	NAMEPLATE
17		SB-647205-00	LABEL
18		SB-647206-00	LABEL
19		SB-647203-00	WARNING LABEL
20		SB-648561-00	WARNING LABEL
21		SB-5140048-04	LATCH
22		SB-5140048-03	DOOR
23		SB-5140048-02	CLAMSHELL SET
24		SB-5140056-85	PRISM COVER
856		SB-5140056-83	DOOR
861		SB-648493-00	KITBOX
866		SB-DC9096	BATTERY 18V - 2.4AH
867		SB-645221-00	CAP
871		SB-649164-00	CHARGER 120V
876		SB-5140048-06	SHIPPING CARTON
