DEWALT HEAVY DUTY CUT-OUT TOOL DW660 Spareparts

• Start
• DEWALT
• Divers
• HEAVY DUTY CUT-OUT TOOL
• DW660
• Seite 1

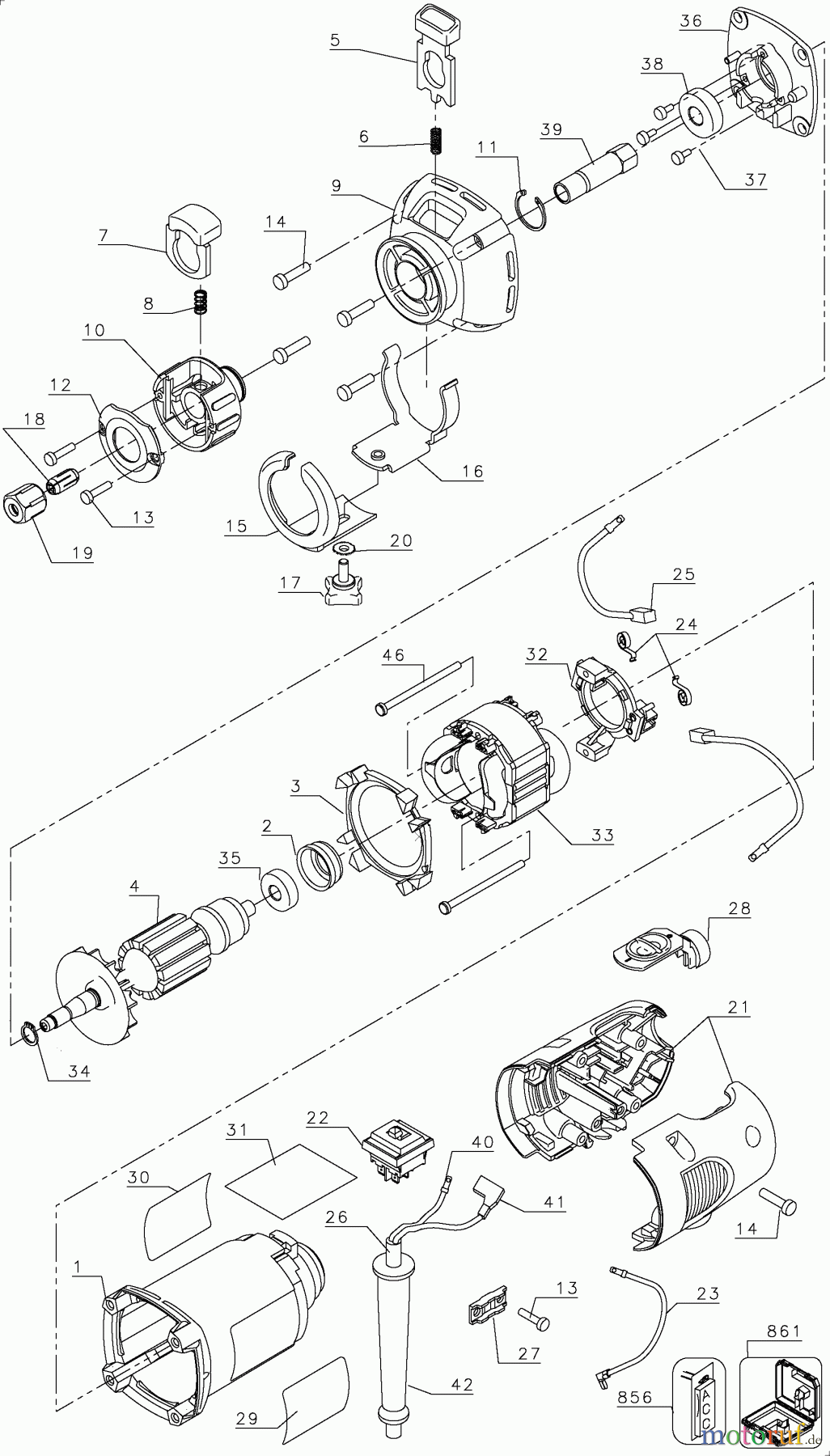

DW660 HEAVY DUTY CUT-OUT TOOL

Pos		Article Number	Description
1		SB-445857-03	FIELDCASE
2		SB-5140017-69	BEARING KIT
3		SB-445876-00	BAFFLE
4		SB-391175-00	ARMATURE
5		SB-394593-00	SPND.LOCK BUT.
6		SB-389461-00	SPRING
7		SB-394594-00	COLL.LOCK BUT.
8		SB-392448-00	SPRING
9		SB-389462-00	SHROUD
10		SB-389457-00	COLLET GRIP
11		SB-391177-00	RETAIN. RING
12		SB-389458-00	COVER
13		SB-330019-03	SCREW
14		SB-330019-13	SCREW
15		SB-389459-00	GUIDE
16		SB-389460-00	GUIDE SUPPORT
17		SB-147801-01	KNOB
18		SB-389243-00	COLLET
19		SB-389245-00	COLLET NUT
20		SB-45687-00	STAR WASHER
21		SB-394595-00	END CAP
22		SB-151462-01	SWITCH
23		SB-391448-00	LEADWIRE
24		SB-445860-00	BRUSH SPRING
25		SB-445861-06	BRUSH 120V
26		SB-330072-97	CORDSET
27		SB-450877-00	CORD CLAMP
28		SB-392389-00	ACTUATOR
29		SB-395047-00	BRAND LABEL
30		SB-392454-00	NP: DW660 T1
31		SB-392677-00	INSTR. LABEL
32		SB-148325-01	BRUSH HOLDER
33		SB-447859-02	FIELD
34		SB-444793-00	CIRCLIP
35		SB-5140017-69	BEARING KIT
36		SB-389454-00	BEARING PLATE
37		SB-385676-00	SCREW
38		SB-605040-17	BEARING BALL
39		SB-398685-00	SPINDLE
40		SB-825209-00	CONNECTOR
41		SB-395035-00	TERMINAL
42		SB-N918736	CORD PROTECTOR
46		SB-448269-00	SCREW
856		SB-391022-00	GP BIT
861		SB-613598-00	KITBOX
