DEWALT TILECUTTER DW861B Spareparts

DW861B TILECUTTER

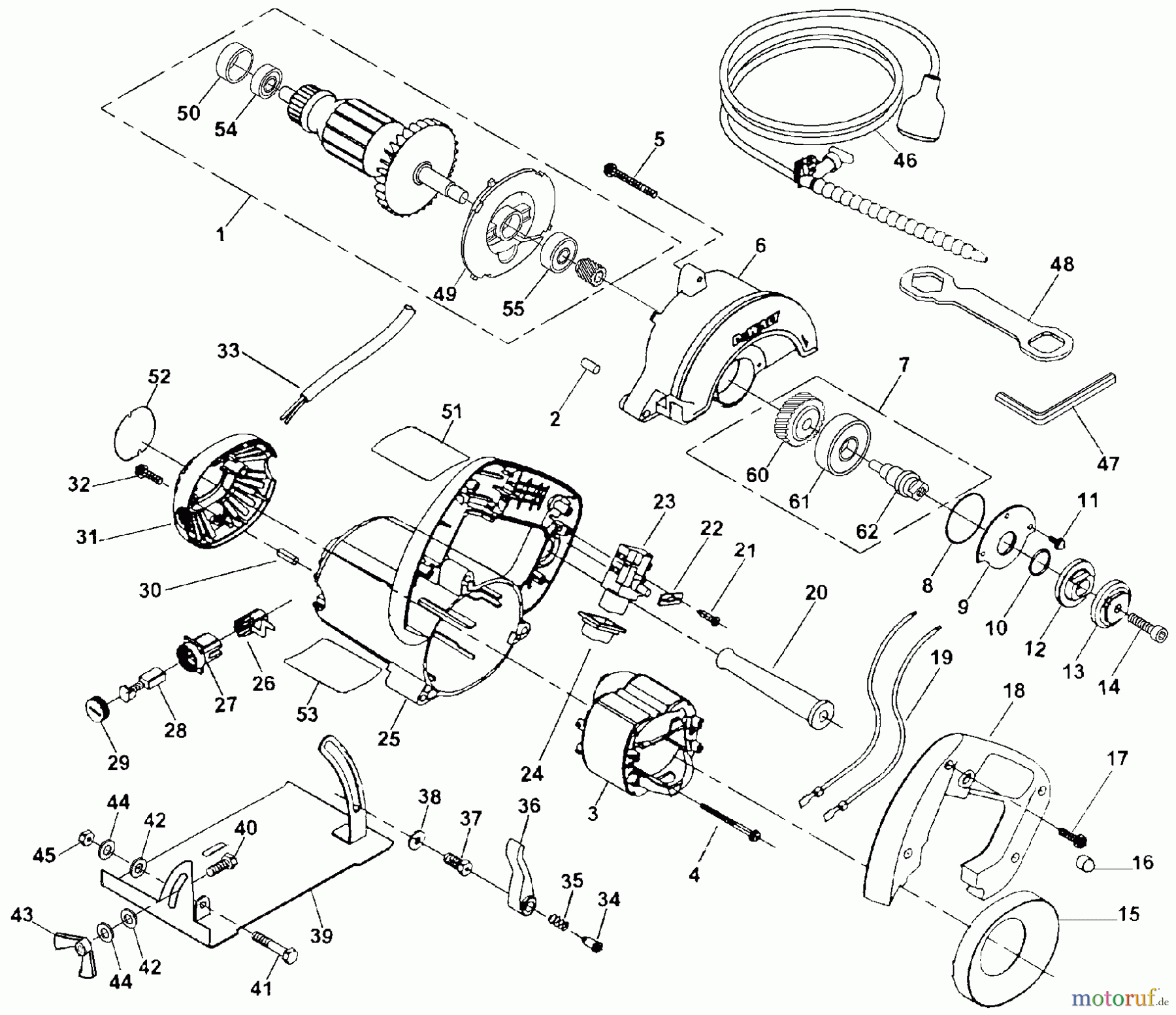

DEWALT Divers TILECUTTER DW861B Seite 1
PosArticle NumberDescription
1 SB-185441-01ARMATURE
2 SB-000000-00NO LONGER AVAILABLE
3 SB-185440-01FIELD
4 SB-000000-00NO LONGER AVAILABLE
6 SB-000000-00NO LONGER AVAILABLE
7 SB-000000-00NO LONGER AVAILABLE
8 SB-000000-00NO LONGER AVAILABLE
9 SB-562252-00GEARCASE COVER
10 SB-000000-00NO LONGER AVAILABLE
11 SB-000000-00NO LONGER AVAILABLE
12 SB-562231-00INNER FLANGE
13 SB-562232-00OUTER FLANGE
14 SB-185335-00SCREW
15 SB-562215-00BAFFLE
16 SB-562225-00BUTTON
17 SB-562097-03SCREW
18 SB-000000-00NO LONGER AVAILABLE
19 SB-561913-00LEAD
20 SB-N918736CORD PROTECTOR
21 SB-562097-00SCREW
22 SB-185328-00CORD CLAMP
23 SB-185251-00SWITCH
25 SB-187379-00FIELD CASE KIT
26 SB-562227-00BRUSH HOLDER
27 SB-562218-00BRUSH FRAME
28 SB-562217-01BRUSH 230V
29 SB-562219-00BRUSH CAP
30 SB-561928-00PIN
31 SB-562222-00END CAP
32 SB-562097-05SCREW
33 SB-185108-01CORD
34 SB-561920-00PIN
35 SB-562210-00SPRING
36 SB-561918-00LEVER
37 SB-562235-00BOLT
38 SB-561916-00WASHER
39 SB-561934-02SHOE
40 SB-562369-00SQUARE BOLT
41 SB-569657-00HEX BOLT
42 SB-403148-00WASHER
43 SB-562368-00WING NUT
44 SB-185244-00SPRING WASHER
45 SB-330015-02NUT
46 SB-562239-00ACCESSORY KIT
47 SB-098000-11HEX KEY
48 SB-389848-00WRENCH
49 SB-569723-00DEFLECTOR
50 SB-949721-05SLEEVE
51 SB-562230-00IDENTITY LABEL
52 SB-561922-00LABEL
53 SB-185109-01NAMEPLATE
54 SB-330003-03BEARING
55 SB-605040-42BALL BEARING
60 SB-562249-00GEAR
61 SB-330003-47BEARING
62 SB-562250-00OUTPUT SHAFT
