DEWALT 12V HAMMERDRILL DW924K Spareparts

DW924K 12V HAMMERDRILL

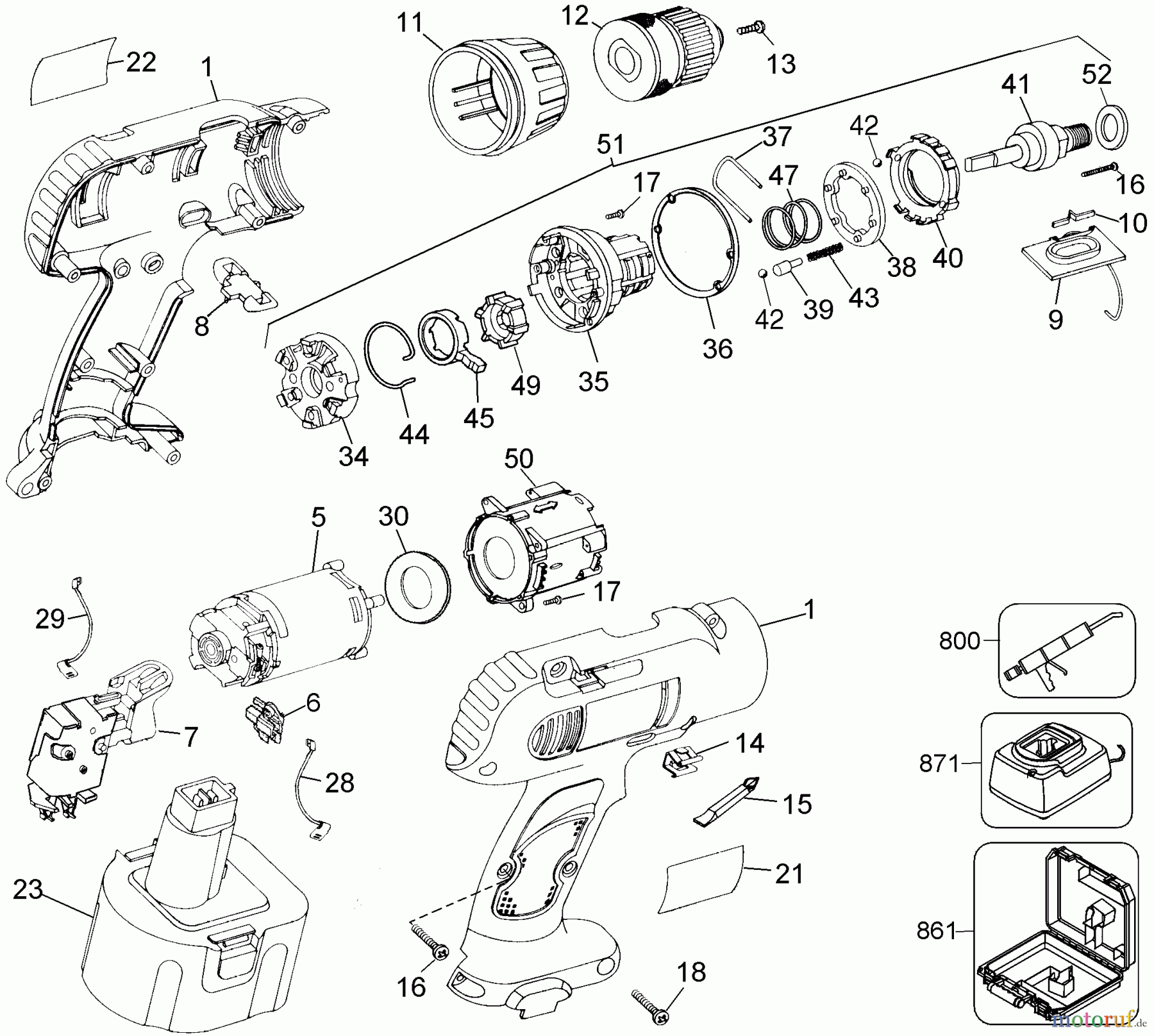

DEWALT Divers 12V HAMMERDRILL DW924K Seite 1
PosArticle NumberDescription
1 SB-151755-01CLAMSHELL SA
5 SB-393111-05MOTOR & PINION
6 SB-389025-00BRUSH PAIR
7 SB-152274-10SWITCH
8 SB-151296-00SLIDER
9 SB-153281-00SLIDER SA
10 SB-144658-00SPRING
11 SB-613455-00COLLAR,ADJ.
12 SB-330075-46CHUCK KEYLESS
13 SB-605256-01SCREW
14 SB-148354-03HOLDER
15 SB-607918-41BIT SCREWDRIVER
16 SB-682211-00SCREW
17 SB-98091-10SCREW
18 SB-330019-04SCREW
21 SB-392430-01NP: DW924-B2 T2
22 SB-395657-00BRAND LABEL
23 SB-397745-01BATTERY PACK
28 SB-388913-00LEAD RED
29 SB-388914-00LEAD BLACK
30 SB-152482-00SEAL
34 SB-370506-03END CAP
35 SB-798966-01HOUSING SA
36 SB-805004-00WASHER
37 SB-798959-00CLIP
38 SB-380792-00PLATE
39 SB-380793-00PIN
40 SB-798709-00NUT
41 SB-391486-00SPINDLE SA
42 SB-386690-00BALL
43 SB-152347-00SPRING
44 SB-395300-00SPRING
45 SB-384917-00CAM
47 SB-799981-00SPRING
49 SB-384919-00RATCHET FIXED
50 SB-391108-03GEARBOX SA
51 SB-391106-12COMBI MODULE
52 SB-395468-00WASHER
800 SB-284778-00GREASE
861 SB-386903-00KITBOX
871 SB-386335-04CHARGER
