PROTO PJEYY J138WA Spareparts

J138WA PJEYY

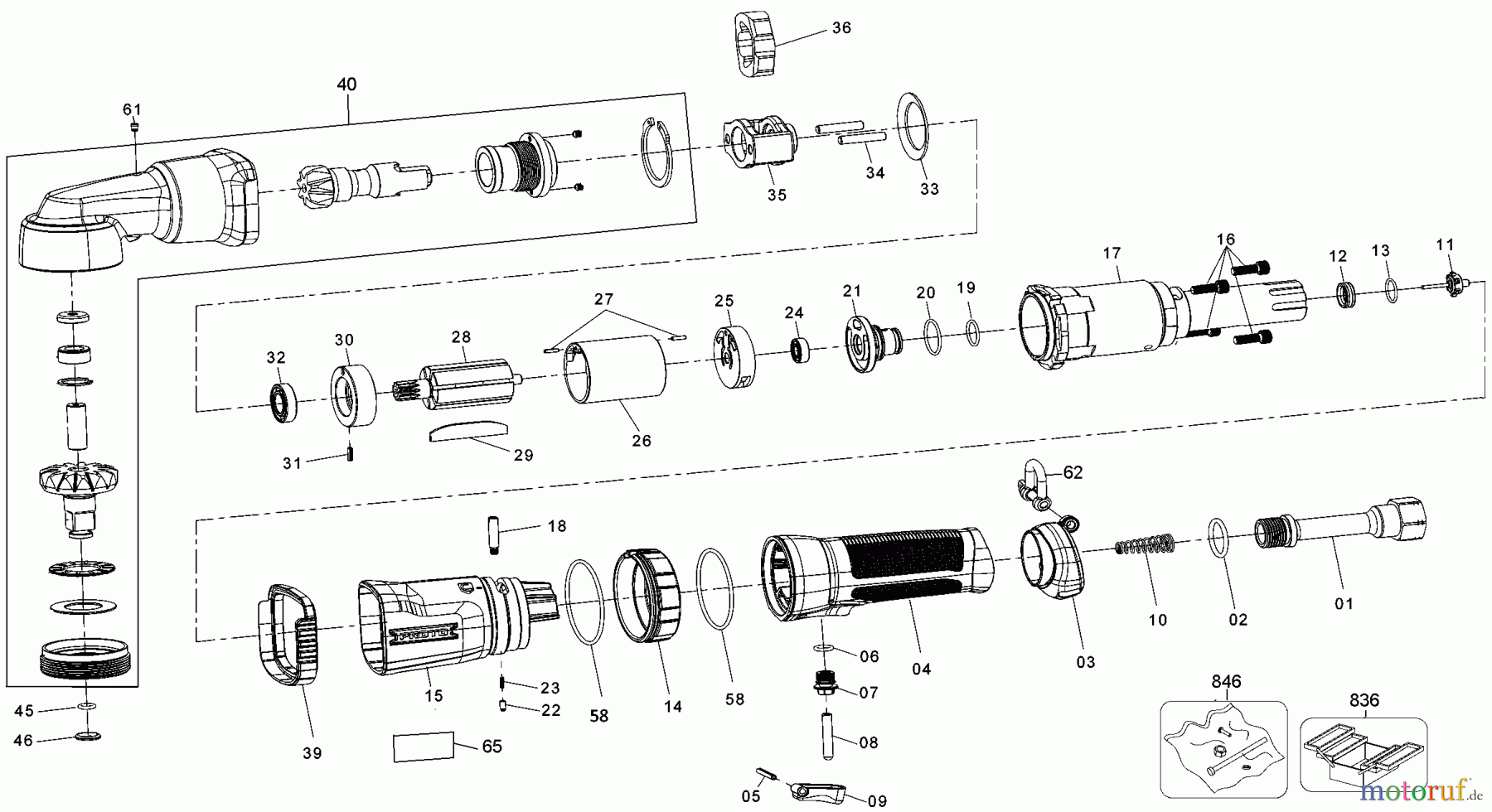

PROTO Divers PJEYY J138WA Seite 1
PosArticle NumberDescription
1 SB-30P200035INLET
2 SB-30R200270O-RING
3 SB-30H200432EXHAUST DEFLECTOR
4 SB-30H100035-02HANDLE
5 SB-30R200271LOCK PIN
6 SB-30R200272O RING
7 SB-30P200038VALVE BODY
8 SB-30P200039VALVE CORE
9 SB-30P200023TRIGGER
10 SB-30R200273VALVE SPRING
11 SB-30P100040VALVE NEEDLE
12 SB-30P200036SEAT
13 SB-30R200274O-RING
14 SB-30H200381REVERSER
15 SB-30H200430HOUSING
16 SB-30R200275SCREW M5X16
17 SB-30H200435HANDLE
18 SB-30R200276PIN
19 SB-30R200277O-RING
20 SB-30R200278O RING
21 SB-30P200037REVERSE VALVE
22 SB-30R200279PIN
23 SB-30R200280SPRING
24 SB-30R200281BEARING
25 SB-30M200085BACKPLATE
26 SB-30M200086CYLINDER
27 SB-30R200282PIN
28 SB-30M200087ROTOR
29 SB-30M200088BLADE
30 SB-30M200089END PANEL. FRONT
31 SB-30R200283LOCK PIN
32 SB-30R200284BEARING
33 SB-30R200285WASHER
34 SB-30D200150PIN
35 SB-30D200151HAMMER FRAME
36 SB-30D200152HAMMER
39 SB-30H200382-01GASKET
40 SB-30D100042HEAD SA
45 SB-30R200292O RING
46 SB-30R200293RETAINER
58 SB-30R200323O RING
61 SB-31R200207SEAL
62 SB-30H200434-01SHACKLE
65 SB-30L200100SPEC. LABEL
836 SB-30V100146S.T.WRENCH
846 SB-30Y100005O RING KIT
