PROTO 1/2 IMP THROUG J150WP-TH Spareparts

J150WP-TH PROTO 1/2 IMP THROUG

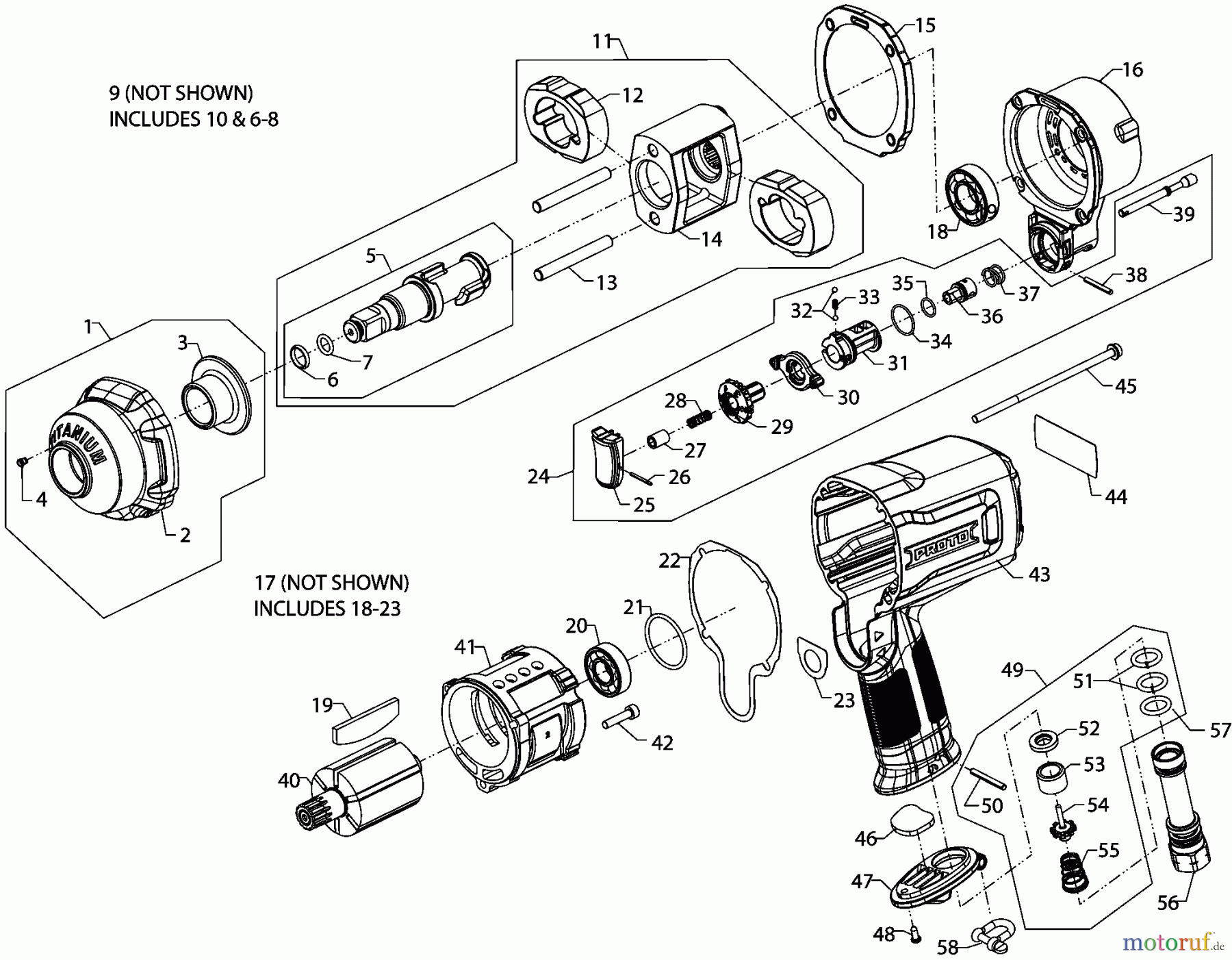

PROTO Divers PROTO 1/2 IMP THROUG J150WP-TH Seite 1
PosArticle NumberDescription
1 SB-30H100053HAMMER CASE ASSY.
3 SB-30R200016BUSHING
4 SB-30R200017STOP
5 SB-30D100000-1ANVIL ASSY.
6 SB-30R200015RETAINER RING - SOCK
7 SB-30R200014O-RING
11 SB-30D100002IMPACTOR
12 SB-30D200002HAMMER
13 SB-30D200003HAMMER
14 SB-30D200001FRAME (CAGE)- HAMMER
15 SB-30H200425GASKET
16 SB-30M100011BEARING HOUSING
17 SB-30M100100SERVICE KIT
18 SB-30R200011BEARING-FRONT MOTOR
19 SB-30M200004BLADE-MOTOR
20 SB-30R200010BOLT
21 SB-30R200012O-RING
22 SB-30G200106GASKET (PACKING)- MO
23 SB-30G200113GASKET (PACKING)- TH
24 SB-30P100009THROTTLE CONTROL
25 SB-30P100007TRIGGER
26 SB-30R200003ROLL (SPRING) PIN-TR
27 SB-30Y200864BUSHING-TRIGGER-TIP
28 SB-30R200022SPRING-TRIGGER-TIP V
29 SB-30P100006REGULATOR-KNOB
30 SB-30Y200830LEVER-REVERSE
31 SB-30Y200376REVERSE VALVE
32 SB-30R200020DETENT
33 SB-30R200002SPRING
34 SB-30R200006VALVE
35 SB-30R200005REGULATOR
36 SB-30Y200371REGULATOR VALVE
37 SB-30R200004SPRING-REGULATOR
38 SB-30R200021ROLL (SPRING) PIN
39 SB-30Y200866TRIGGER PIN-TIP VALV
40 SB-30M200003ROTOR
41 SB-30M200001HOUSING MOTOR
42 SB-30R200013SCREW
43 SB-30H100047HOUSING ASSEMBLY
44 SB-30L200092SPEC-LABEL
45 SB-30R200019SCREW
46 SB-30Y200379MUFFLER
47 SB-30H200419EXHAUST DEFLECTOR
48 SB-30R200008SCREW
49 SB-30P100020-01INLET
50 SB-30R200009ROLL PIN
51 SB-30R200018INLET
52 SB-30Y200861SEAL
53 SB-30Y200862BUSHING-TIP VALVE
54 SB-30Y200863VALVE
55 SB-30R200023VALVE
56 SB-30Y200360-01INLET
57 SB-30R200320O-RING
58 SB-30R200312SHACKLE
