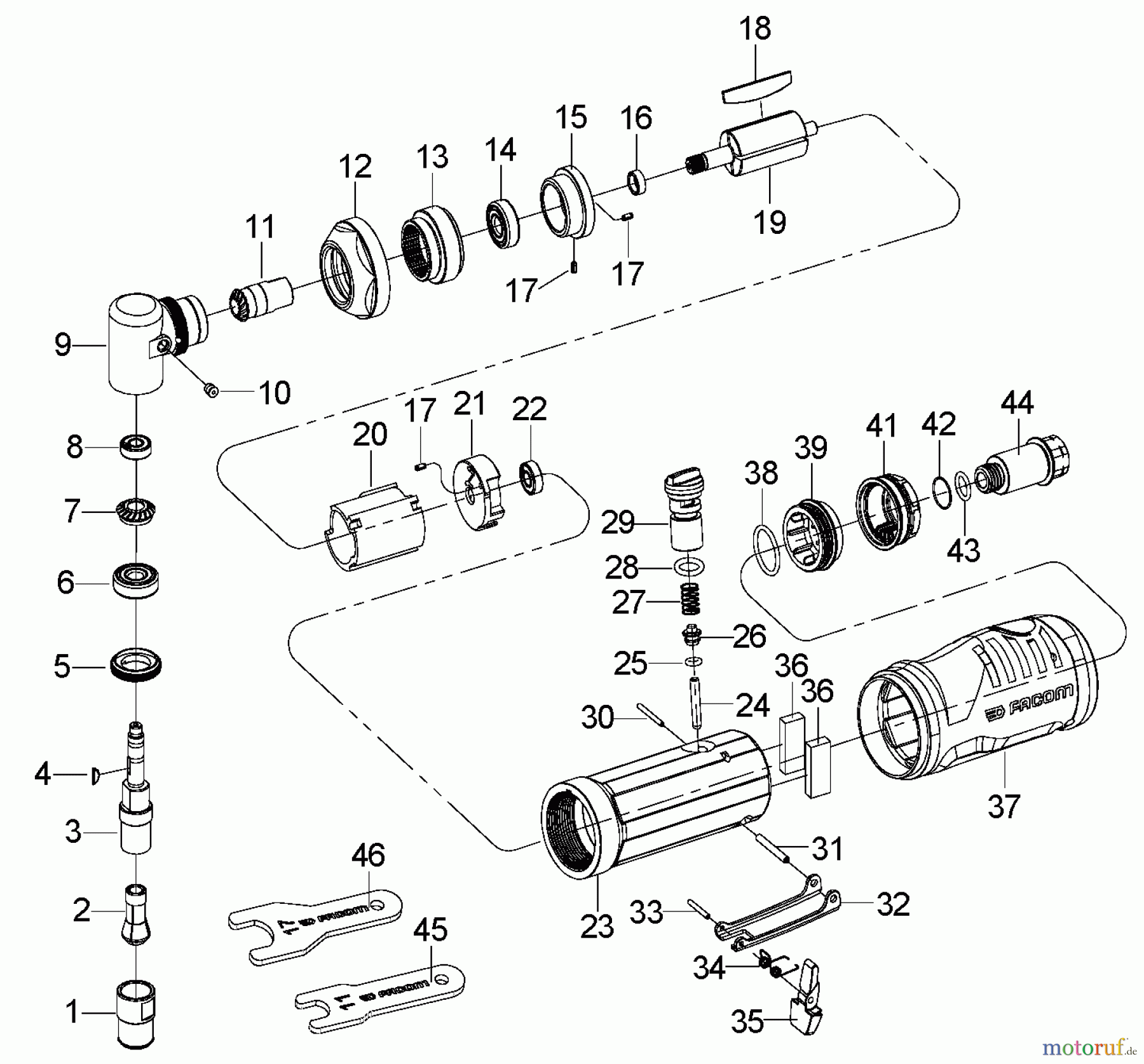

J525AGAH90 1/4 90D ANG IN DIE G

Pos		Article Number	Description
1		SB-N444813	COLLET NUT
2		SB-N458667	1/4 COLLET
3		SB-N444879	SPINDLE
4		SB-N444880	WOODRUFF KEY
5		SB-N444881	NUT
6		SB-N444882	BEARING,BALL
7		SB-N444883	GEAR
8		SB-N444884	BEARING,BALL
9		SB-N444885	HEAD
10		SB-N444886	CAP
11		SB-N444887	PINION
12		SB-N444888	COUPLING
13		SB-N444889	LOCKING RING
14		SB-N444845	BEARING,BALL
15		SB-N444846	END PANEL. FRONT
16		SB-N461444	BEARING SPACER
17		SB-N444847	SPIROL PIN
18		SB-N444850	ROTOR BLADE
19		SB-N461445	ROTOR
20		SB-N444851	CYLINDER
21		SB-N444852	END PANEL. REAR
22		SB-N444853	BEARING,BALL
23		SB-N444854	HOUSING MOTOR
24		SB-N444783	SHAFT
25		SB-N444785	O RING
26		SB-N444786	VALVE
27		SB-N444784	VALVE SPRING
28		SB-N444855	O RING
29		SB-N444856	REGULATOR
30		SB-N444787	SPIROL PIN
31		SB-N444788	SPIROL PIN
32		SB-N444857	TRIGGER
33		SB-N444858	SPIROL PIN
34		SB-N444789	SPRING
35		SB-N444790	LEVER
36		SB-N444859	MUFFLER
37		SB-N444865	HOUSING COVER
38		SB-N444791	O RING
39		SB-N444792	SEAT
41		SB-N444793	TUBE.EXHAUST
42		SB-N444861	O RING
43		SB-N444860	O RING
44		SB-N444862	BUSHING
45		SB-N444811	SPANNER
46		SB-N444812	SPANNER
