PROTO TORQUE WR 3/4 DR 120-800 J6020NM Spareparts

• Start
• PROTO
• Divers
• TORQUE WR 3/4 DR 120-800
• J6020NM
• Seite 1

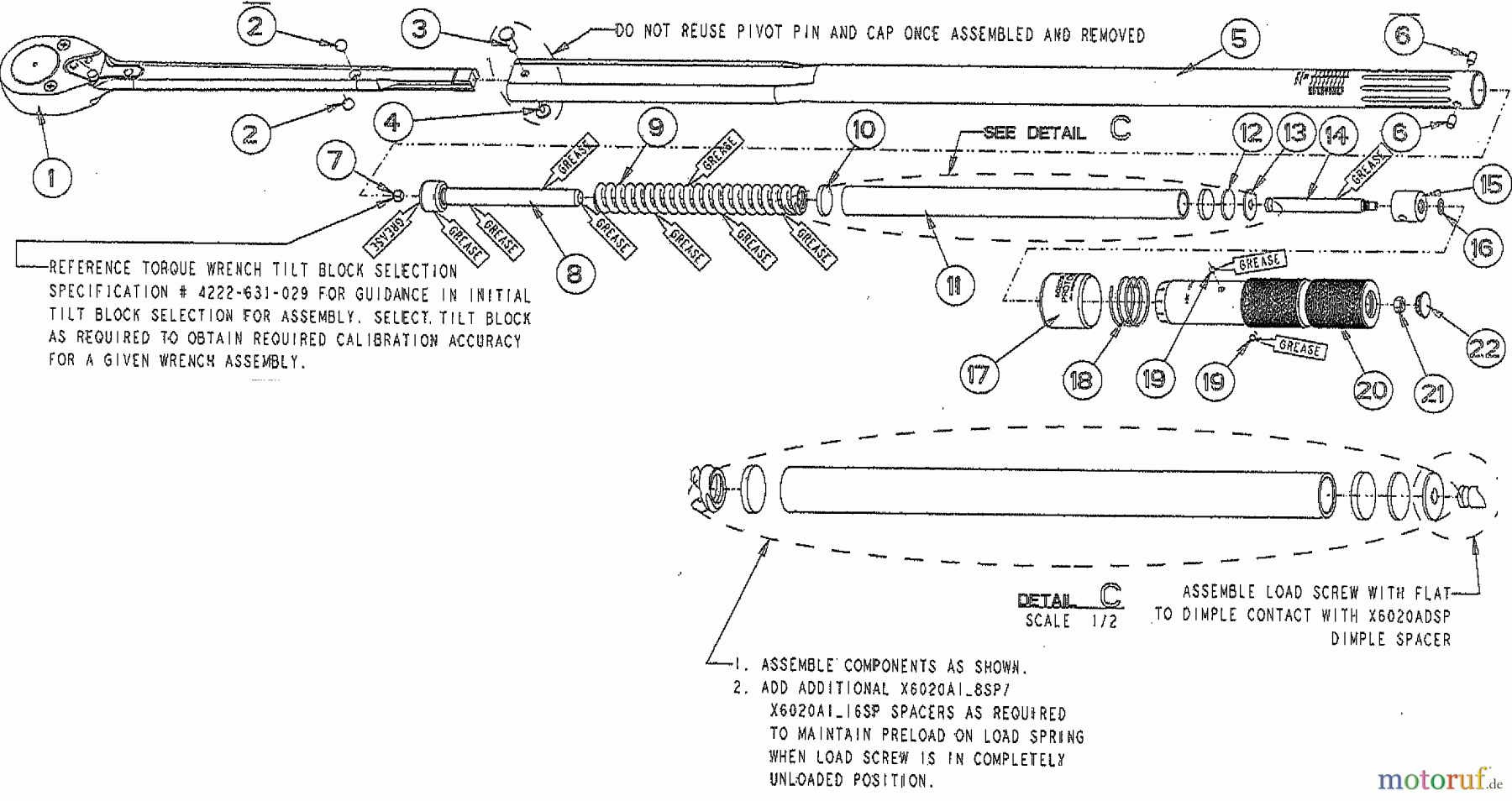

J6020NM TORQUE WR 3/4 DR 120-800

Pos		Article Number	Description
1		SB-J6020BRTFNS	6020 SHORT TANG
2		SB-J5800BL	3/8 BALL REPAIR KIT
3		SB-J6020CPB	PIVOT PIN BODY
4		SB-J6020BPES	T/W PIVOT PIN END ST
5		SB-J6020NMACMS	FLAT CASE FOR SHORT
6		SB-J6020ARP	T/W RETAINER PIN
7		SB-J6020NMTB3	T/W TILT BLOCK .430
8		SB-J6020APL	T/W PLUNGER
9		SB-J6020ALOS	T/W LOAD SPRING
10		SB-J6020A1/8SP	T/W SPACER
11		SB-J6020ATSPS	TUBE SPACER FOR SHOR
12		SB-J6020A1/16SP	T/W SPACER
13		SB-J6020ADSP	T/W DIMPLE SPACER
14		SB-J6020ALS	T/W LOAD SCREW
15		SB-J6020ALSN	T/W LOAD SCREW NUT
16		SB-J6016AGSP	T/W GRIP SPACER
17		SB-J6020NMALR	T/W LOCK RING
18		SB-J6020ALRS	T/W LOCK RING SPRING
19		SB-J5200BL	3/16 DIA STAINLESS S
20		SB-J6020NMBG	T/W GRIP
21		SB-J6016AHN	T/W HEX NUT
22		SB-J6016AGBP	T/W BUTTON PLUG
