PROTO TORQUE WR 1/4DR 10-50 IN J6060A Spareparts

• Start
• PROTO
• Divers
• TORQUE WR 1/4DR 10-50 IN
• J6060A
• Seite 1

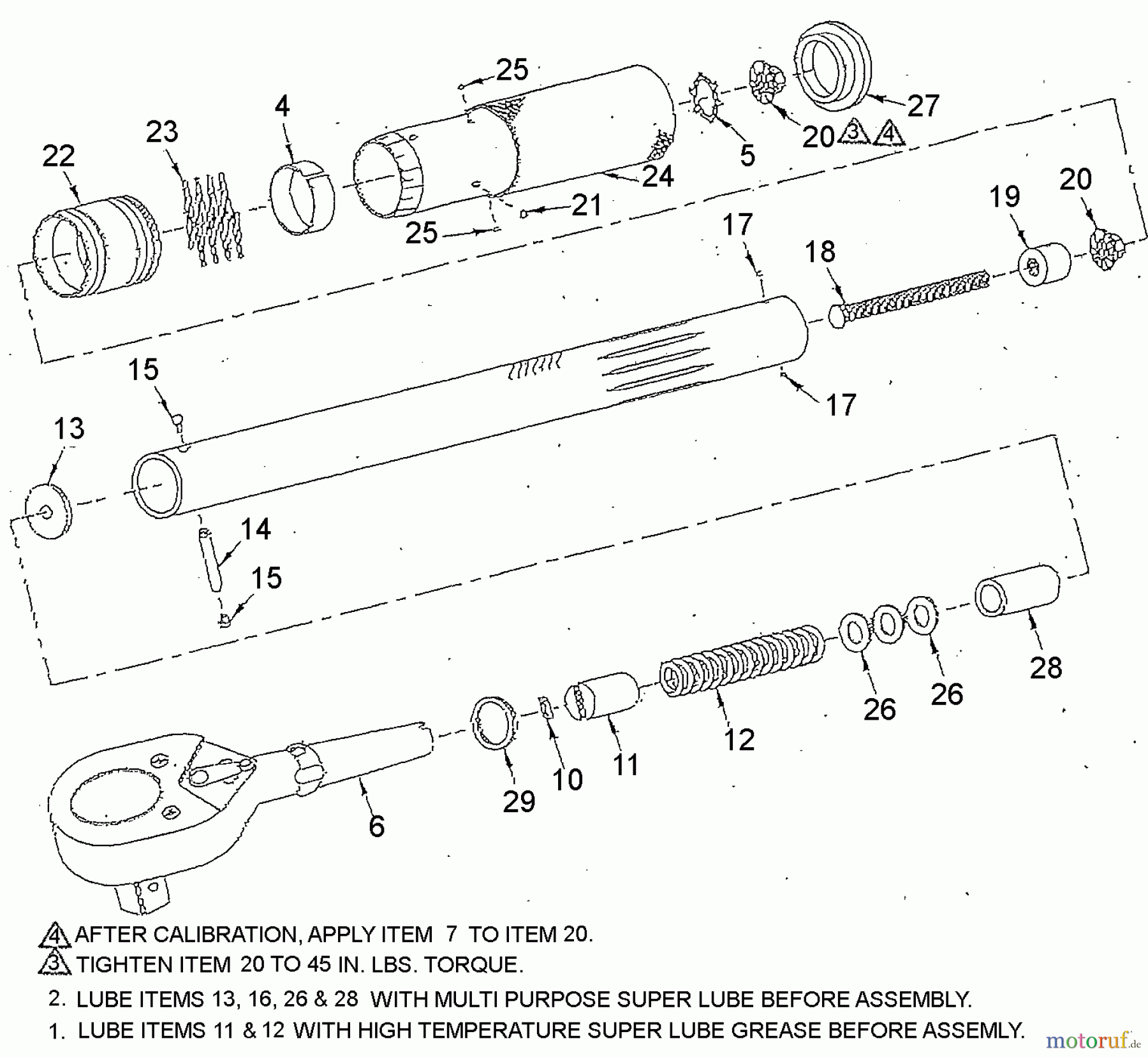

J6060A TORQUE WR 1/4DR 10-50 IN

Pos		Article Number	Description
4		SB-5140178-42	NYLON BUSHING
5		SB-5140178-43	RETAINING RING
6		SB-5140178-44	BODY ASSY.
10		SB-5140186-38	PAWL
11		SB-5140178-46	CAM
12		SB-5140178-47	TORQUE SPRING
13		SB-5140178-48	THRUST WASHER
14		SB-5140178-49	PIVOT PIN
15		SB-5140178-50	RIVET
17		SB-5140178-51	BALL
18		SB-5140178-52	ADJUSTING SCREW
19		SB-5140178-53	TUBE
20		SB-5140178-54	FLANGE NUT
21		SB-5140178-06	BALL
22		SB-5140178-55	LOCK RING
23		SB-5140178-56	SPRING
24		SB-5140178-61	HANDLE ASSEMBLY
25		SB-5140178-04	BALL
26		SB-5140178-57	FLAT WASHER
27		SB-5140178-58	END PLUG
28		SB-5140178-59	SPACER
29		SB-5140178-60	O-RING
