PROTO TQUE WR 1/4DR 40-200 IN L J6062CX Spareparts

• Start
• PROTO
• Divers
• TQUE WR 1/4DR 40-200 IN L
• J6062CX
• Seite 1

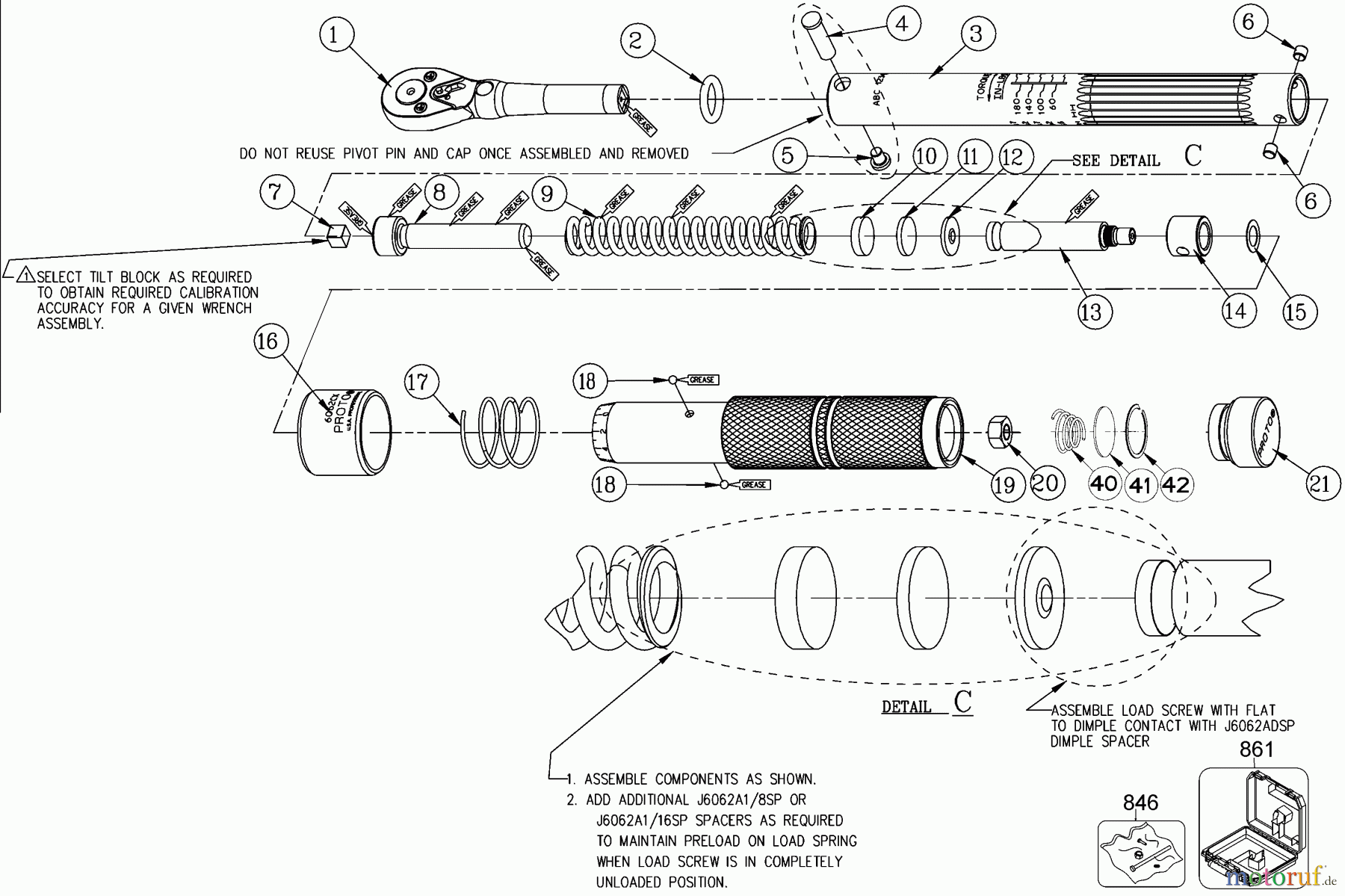

J6062CX TQUE WR 1/4DR 40-200 IN L

Pos		Article Number	Description
1		SB-J6062RTFNC	TW TANG 1/4 DR RATCH
2		SB-J6006ORF	O-RING
3		SB-J6062ACMF	ROUND CASE TW
4		SB-J6006PVF	PIVOT PIN BODY
5		SB-J6062APES	T/W PIVOT PIN END ST
6		SB-J6006ARP	T/W RETAINER PIN
7		SB-J6062TB6	T/W TILT BLOCK .340
8		SB-J6062APLM	T/W PLUNGER
9		SB-J6062ALOS	T/W LOAD SPRING
10		SB-J6062A1/8SP	T/W SPACER
11		SB-J6062A1/16SP	T/W SPACER
12		SB-J6062ADSP	T/W DIMPLE SPACER
13		SB-J6062ALS	T/W LOAD SCREW
14		SB-J6062ALSN	T/W LOAD SCREW NUT
15		SB-J6016AGSP	T/W GRIP SPACER
16		SB-J6062CXLR	TW LOCK RING FOR J60
17		SB-J6006ALRS	T/W LOCK RING SPRING
18		SB-J4700BL	1/8 DIA STAINLESS ST
19		SB-J6061BG	METAL GRIP 3/8 STEEL
20		SB-J6016AHN	T/W HEX NUT
21		SB-J6011EC	METAL END CAP 3/8 PR
40		SB-J216041	SPRING
41		SB-J216039	END CAP WASHER
42		SB-J216040	RETAINING RING
846		SB-J6062WP	TW S5 STAKED WHEEL
861		SB-J6062PBF	BOX TORQUE WRENCH
