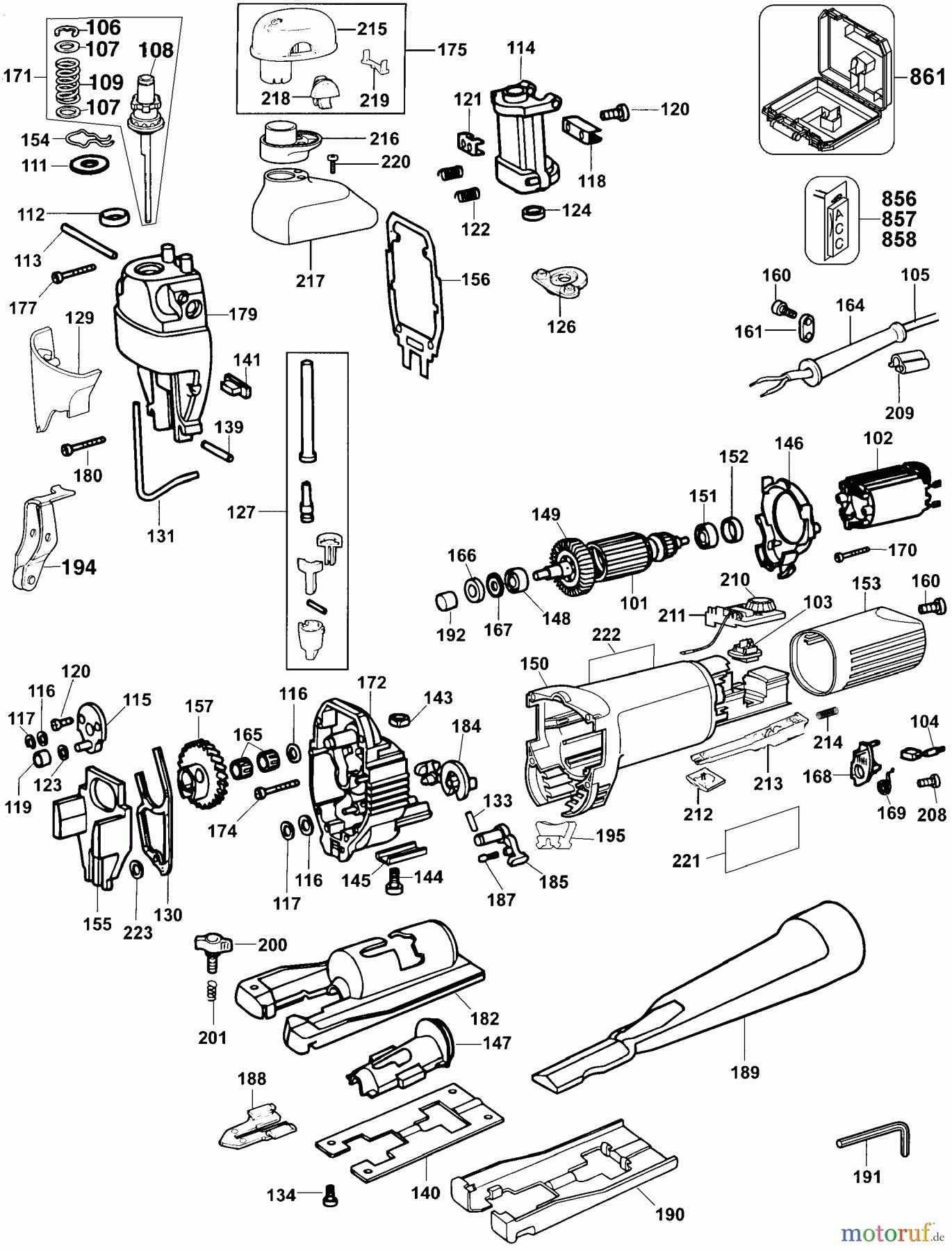

DEWALT JIGSAW ST74EC Spareparts

ST74EC JIGSAW

Pos	Article Number	Description
101	SB-387658-01	ARMATURE 230V
102	SB-402051-02	FIELD 230V
103	SB-402434-00	SWITCH SA
104	SB-939539-01	BRUSH CUT OFF
105	SB-330080-58	CORDSET
106	SB-860322-01	CIRCLIP
107	SB-606410-00	WASHER
108	SB-402960-00SV	CLUTCH
109	SB-402110-00	SPRING
111	SB-949876-21	WASHER
112	SB-402154-00	RUBBER
113	SB-402105-00	PIN
114	SB-402153-00	SUPPORT
115	SB-402161-00	ECCENTRIC SA
116	SB-932302-00	WASHER
117	SB-949728-04	CIRCLIP
118	SB-402118-00	YOKE
119	SB-402155-00	BUSH
120	SB-603215-00	SCREW.SPECIAL
121	SB-399146-00	CLAMP
122	SB-933524-00	SPRING
123	SB-949876-20	WASHER
124	SB-949400-00	FELT
126	SB-402177-00	SEAL SA
127	SB-948603-00SV	SPINDLE
129	SB-389599-00	SCREEN
130	SB-402097-00	CAM
131	SB-402116-00	GUARD
133	SB-330041-08	PIN
134	SB-327136-00	SCREW
139	SB-330041-29	PIN
140	SB-389652-01	SOLE PLATE
141	SB-402151-00	RUBBER
143	SB-860310-00	NUT
144	SB-931976-00	SCREW
145	SB-402652-00	PLATE
146	SB-429909-00	REPAIR KIT
147	SB-402176-00	ADAPTOR
148	SB-330003-59	BEARING
149	SB-176838-00	FAN
150	SB-402429-00	FIELDCASE
151	SB-330003-56	BEARING
152	SB-930029-00	HOLDER BEARING
153	SB-402430-00	END CAP
154	SB-402111-00	SPRING
155	SB-402098-00	COUNTERWEIGHT
156	SB-402112-00	GASKET
157	SB-611147-00	GEAR SA
160	SB-330065-07	SCREW
161	SB-935616-00	CORD CLAMP
164	SB-N918736	CORD PROTECTOR
165	SB-611147-00	GEAR SA
166	SB-949400-03	FELT
167	SB-402125-00	COVER
168	SB-949880-05	BRUSH HOLDER SA
169	SB-930090-00	BRUSH SPRING
170	SB-330019-02	SCREW
171	SB-402158-04	CLUTCH SA
172	SB-387850-00	GEARCASE SA
174	SB-930079-01	SCREW
175	SB-402962-00	KNOB SA
177	SB-330045-09	SCREW
179	SB-389870-03	GEARCASE COVER
180	SB-930082-01	SCREW
182	SB-429802-00	REPAIR KIT
184	SB-429909-00	REPAIR KIT
185	SB-329977-00	LEVER
187	SB-326467-00	DETENT
188	SB-402140-00	ANTI SPLINTER DEVICE
189	SB-402138-00	TUBE
190	SB-329982-00	PLATE
191	SB-930574-00	HEX KEY 5 MM
192	SB-607973-00	BUSHING
194	SB-388577-00	SUPPORT SA
195	SB-388911-00	SUPPORT
200	SB-326573-01	SCREW WING
201	SB-868082-00	SPRING
208	SB-330065-06	SCREW
209	SB-403192-00	CLIP CABLE
210	SB-402447-00	WHEEL
211	SB-402187-04	ELECTRONIC & SWITCH
212	SB-402433-01	BUTTON
213	SB-402432-00	LEVER
214	SB-943051-00	SPRING
215	SB-402133-00	KNOB
216	SB-402131-00	KNOB
217	SB-402128-00	COVER
218	SB-402659-00	BUTTON
219	SB-402959-00	INSERT
220	SB-330045-05	SCREW
222	SB-388067-00	BRAND LABEL
223	SB-609364-00	SPACER
