STANLEY 700W 1/2IN HAMMER DRILL - STDH7013K Spareparts

• Start
• STANLEY
• Divers
• 700W 1/2IN HAMMER DRILL -
• STDH7013K
• Seite 1

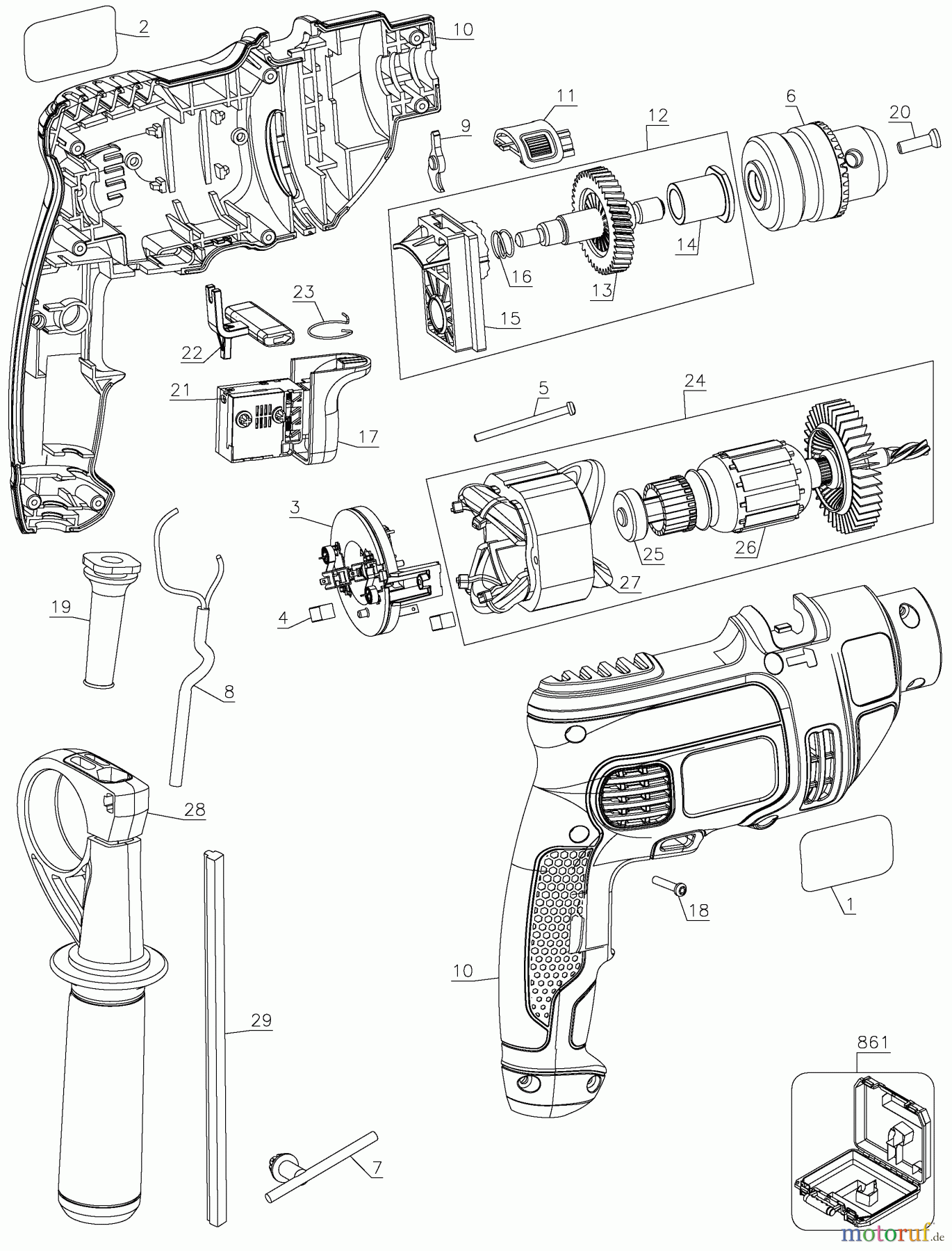

STDH7013K 700W 1/2IN HAMMER DRILL -

Pos		Article Number	Description
1		SB-90615130	NAME PLATE
2		SB-90610933	BRAND LABEL
3		SB-90547780	BRUSH PLATE SA
4		SB-90547781	BRUSH
5		SB-330019-63	SCREW
6		SB-330033-23	CHUCK 13MM
7		SB-330034-07	CHUCK KEY
8		SB-90552592	CORDSET
9		SB-186452-00	PLATE THRUST
10		SB-90547569-02	CLAMSHELL ASSY.
11		SB-90547739	ACTUATOR
12		SB-90542854	TRANSMISSION SA
13		SB-90579736	SHAFT SA
14		SB-574297-00	SLEEVE BEARING
15		SB-90579738	HOUSING SA
16		SB-90542852	SPRING
17		SB-90548878	SWITCH SA
18		SB-330019-03	SCREW
19		SB-770236	PROTECTOR
20		SB-805434	SCREW.SPECIAL
21		SB-90512961	SCREW
22		SB-90547146	BAR
23		SB-629167-00	SPRING
24		SB-90549483	MOTOR ASSEMBLY
25		SB-574853-08	BEARING
26		SB-90547326	ARMATURE 230V
27		SB-90547141	FIELD SA 230V
28		SB-376556-11	HANDLE SA
29		SB-372814-00	DEPTH STOP
861		SB-90578242-01	KIT BOX
