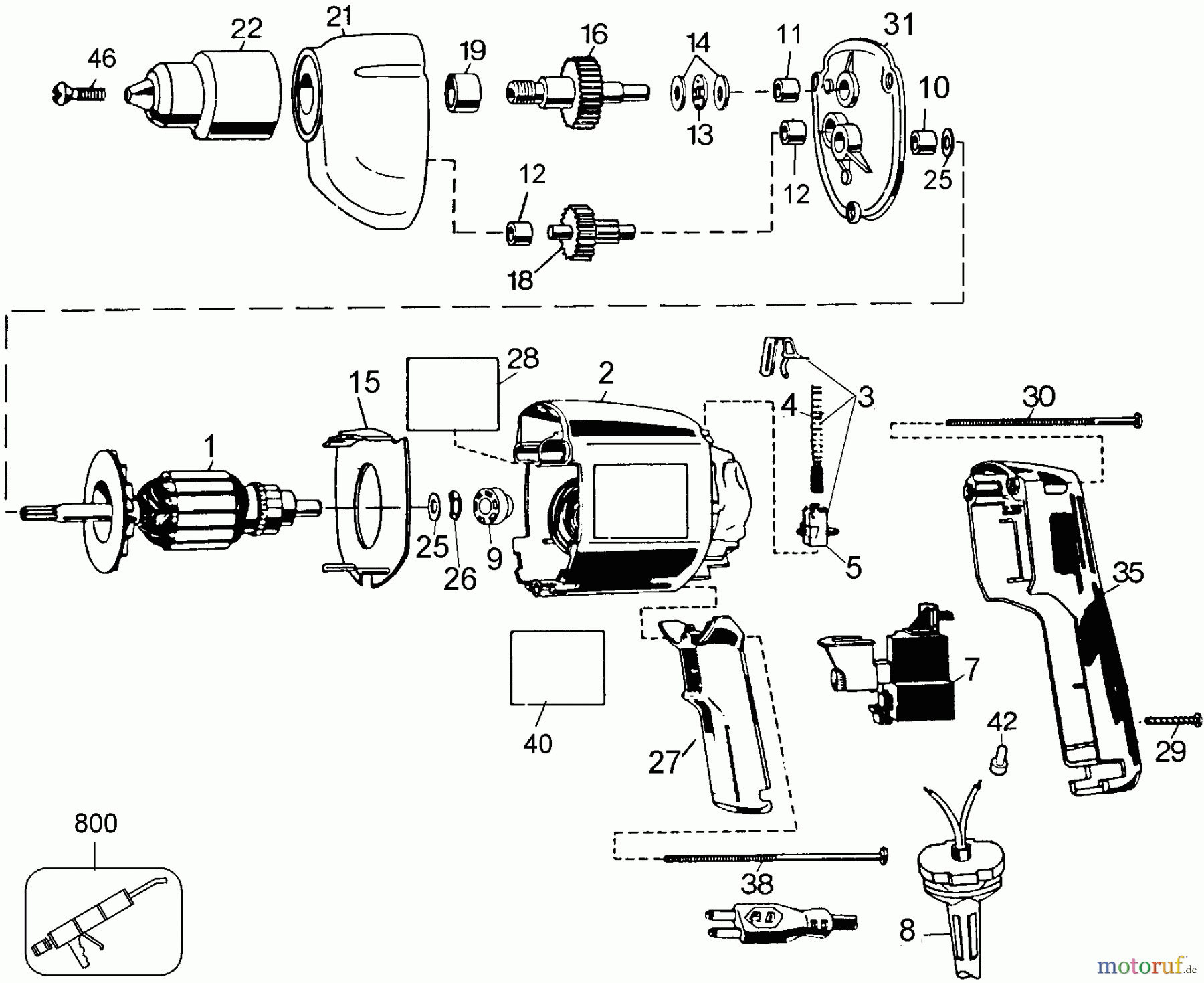

TV310 T.V. 3/8 KYLS.DRIL

Pos		Article Number	Description
1		SB-140647-31	ARMATURE & FAN
2		SB-141609-47	FIELD & CASE
3		SB-133688-00	BRUSH & HOLDER
4		SB-136506-02	BRUSH HOLDER
5		SB-134252-00	BRUSH HOLDER
7		SB-140762-06	SWITCH,VSR
8		SB-330073-96	CORD/8'/18-2SJT
9		SB-399752-00	BEARING
10		SB-85908-00	BEARING
11		SB-85909-00	SLEEVE
12		SB-85899-00	BEARING,SLEEVE
13		SB-10511-00	RETAINER
14		SB-87471-00	WASHER
15		SB-85939-00	BAFFLE FAN
16		SB-679115-03	SPINDLE & GEAR
18		SB-85955-00	GEAR & PINION
19		SB-85894-00	SLEEVE
21		SB-140610-00	CASE,GEAR
22		SB-330075-25	KEYLESS CHUCK
25		SB-037381-00	WASHER FIBRE
26		SB-157315-00	WASHER SPRING
27		SB-91903-10	COVER,SWITCH
28		SB-386248-00	NAMEPLATE
29		SB-330019-13	SCREW
30		SB-140837-02	SCREW
31		SB-137132-00	COVER,GEAR CASE
35		SB-91904-17	HANDLE,SWITCH
38		SB-140837-03	SCREW
40		SB-386247-00	ID LABEL
42		SB-32114-00	CONNECTOR
46		SB-157312-00	SCREW.SPECIAL
800		SB-429698-00	GREASE
