AS-Motor (neu) Zero-Turn - Ride On IKON 915331 IKON-X ARIENS 42' CE-KAWASAKI 915331 (080000 - ) Ikon-X 42 CE Transmission - 05172800 Spareparts

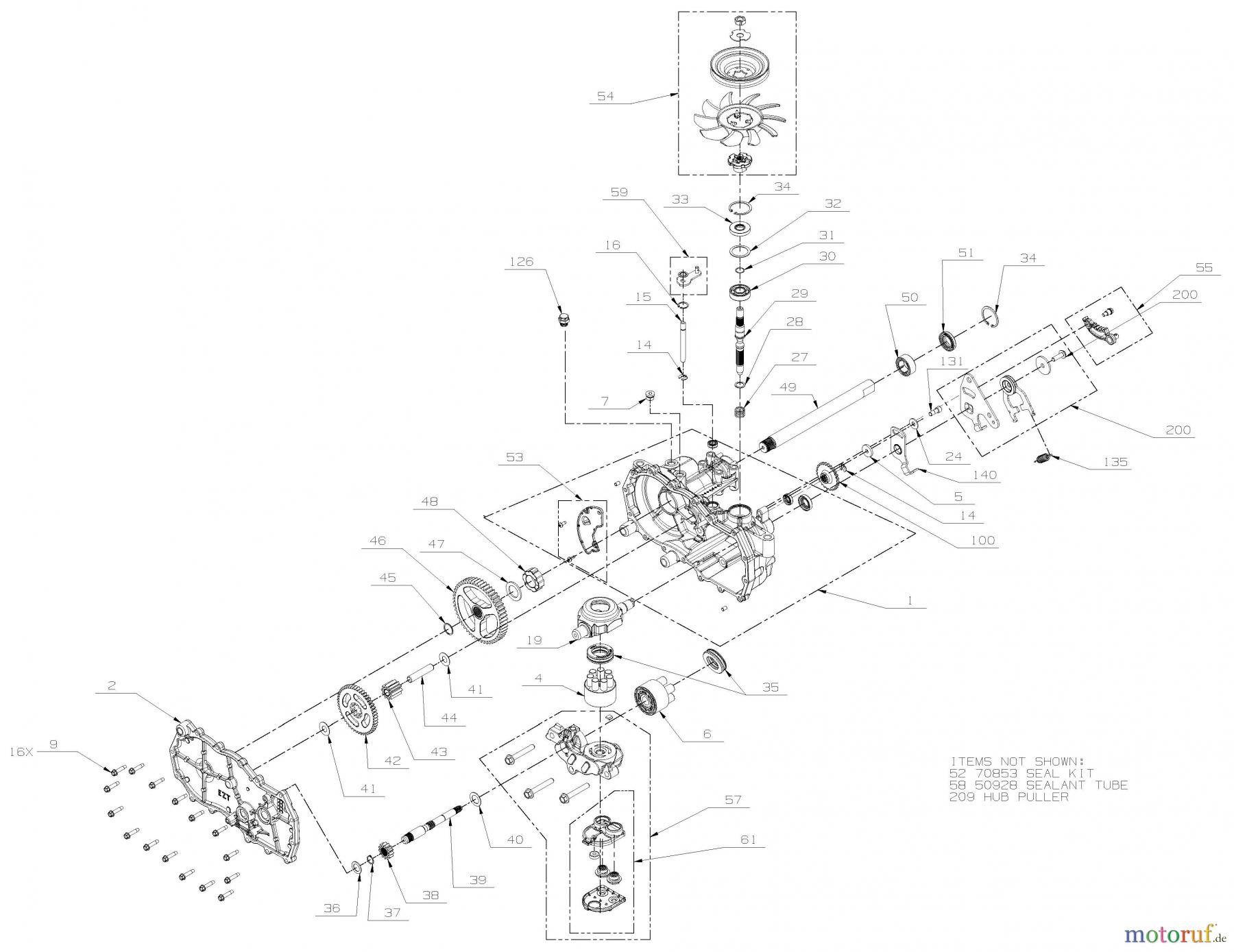

Transmission - 05172800 915331 (080000 - ) Ikon-X 42 CE

AS-Motor (neu) Ariens Rasen Zero-Turn - Ride On IKON 915331 IKON-X ARIENS 42' CE-KAWASAKI 915331 (080000 - ) Ikon-X 42 CE Transmission - 05172800
PosArticle NumberDescription
2
4 21543921zzASSY BLOCK 7 PISTON
5 21543870zzSPACER
6 21543889zzKIT 10 CC BLOCK
9 27105900SCREW
14 08622500zzRING. RETAINING
15 21543844zzROD BYPASS DISCONTINUED
16 21543846zzRING RET .750
19 21543783zzTRUNNION SWASHPLATE
24 08611200zzWASHER
27 08621500zzSPRING. BLOCK
28 08609400zzWASHER. THRUST
29 21543785zzSHAFT INPUT
30 21543738zzBRG BALL 17X4
31 21543960zzRING RET WIRE
32 21543773zzWASHER 1.23X1.
33 21543816zzSEAL LIP 17X4
34 21543741zzRING RET 1.56
35 08609100zzBEARING. THRUST 30 X 52 X 13
37 21543704zzRING RET 62 EXT
38 21543807GEAR 13T PINNION
39 21543859zzSHAFT MOTOR
40 21543788zzWASHER .71 X 1.16 X .04
41 21543724zzWASHER .5X1.0X.032
42 21543806GEAR 10T48T
43 21543781zzGEAR 10T JACKSHAFT
44 21543793JACK SHAFT
52 21543935KIT SEALS AND RETAINING
53 21543987KIT EXPANSION PLATE LH
54 21543736FAN
55 00362400zzKIT- RH-BRAKE
58 21543771zzSEALANT TUBE 10.1OZ.
61 21543958KIT FILTER
100 21543851DISC COG BRAK
135 21544001SPRING HYDROG
140 21543867ARM NEUTRAL LEFT
