Wolf-Garten 2.40 E 4961680 Series A (2003) Deck housing Spareparts

• Start
• Wolf-Garten
• Electric mower
• 2.40 E
• 4961680 Series A (2003)
• Deck housing

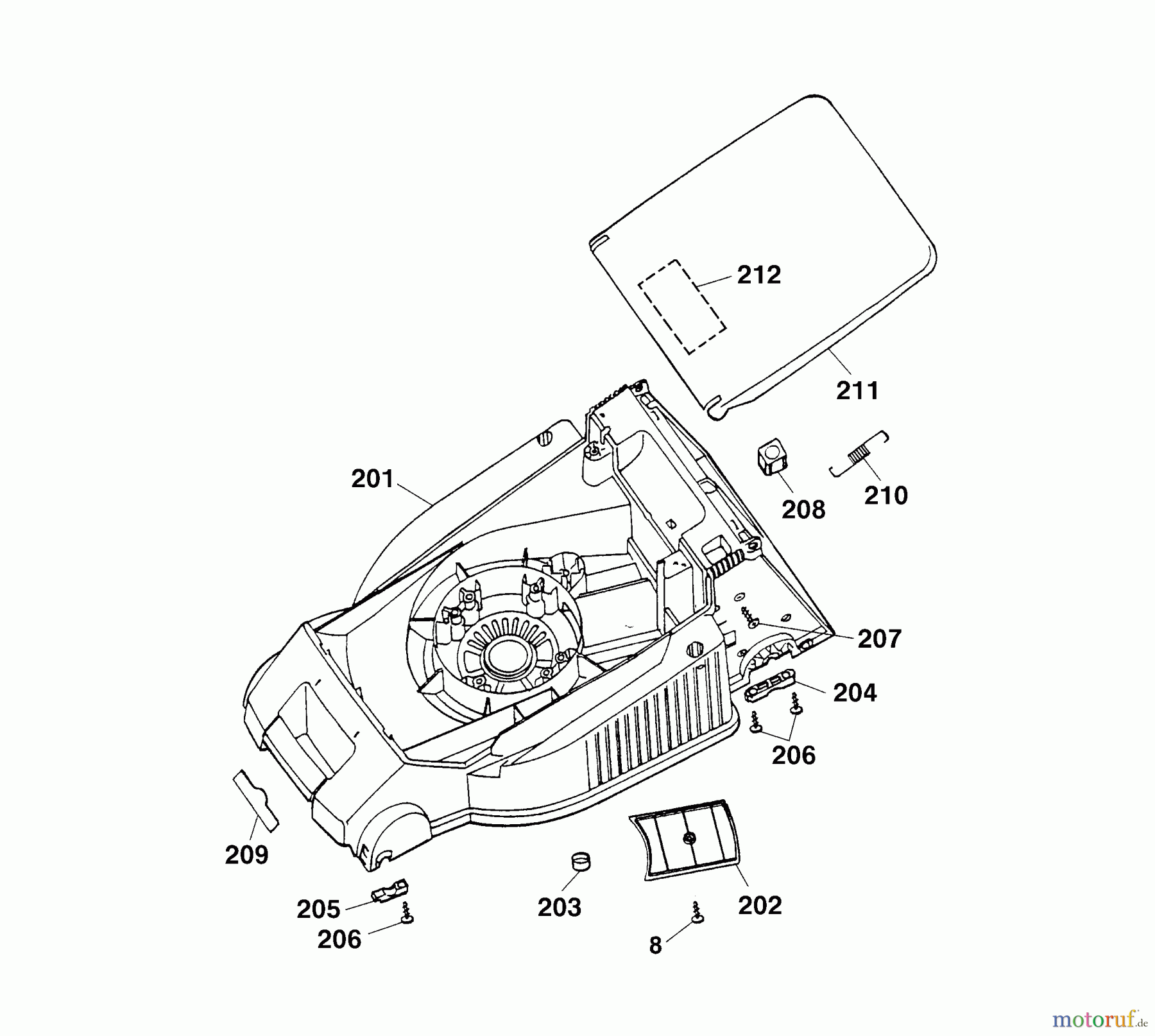

Deck housing 4961680 Series A (2003)

Pos		Article Number	Description
202		4961324	COVER
203		4961305	PLUG
204		4961313	SHELL
205		4961312	SHELL
206		0012631	SCREW
207		0010931	SCREW
208		4961304	KNOB
209		0051115	WOLF-GARTEN-MARKE (103MM)
210		4961108	EXTENSION SPRING
211		4620302	REAR FLAP, YELLOW
212		0051244	SAFETY LABEL
