Wolf-Garten HB 40 E 4961005 Series A (2002) Handle Spareparts

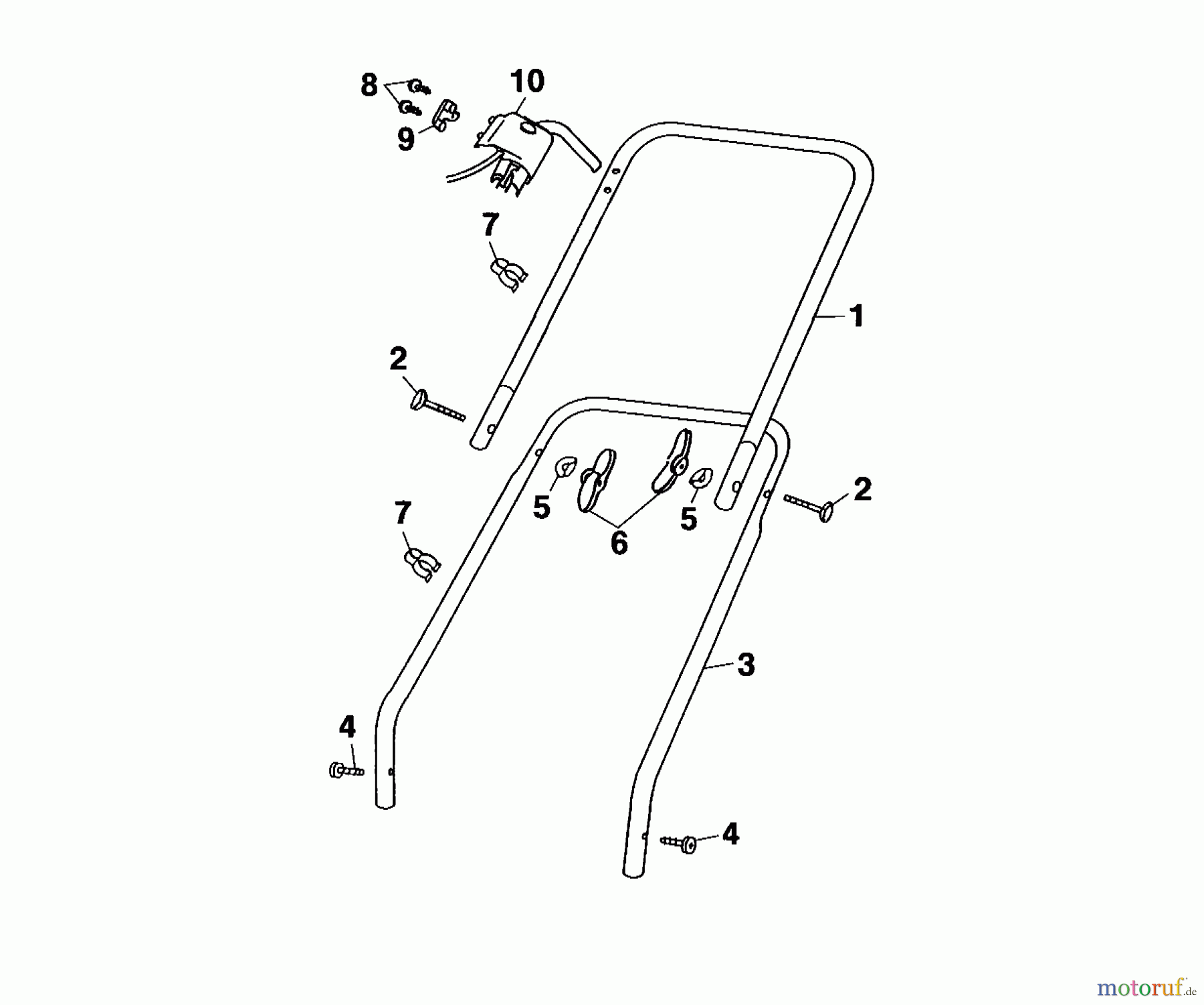

Handle 4961005 Series A (2002)
| Pos | Article Number | Description | |
| 1 | 4961023 | UPPER HANDLEBAR | |
| 2 | 4901101 | SCREW | |
| 3 | 4961120 | LOWER HANDLEBAR | |
| 4 | 0015660 | SCREW | |
| 5 | 0017275 | WASHER, RECESSED | |
| 6 | 0016717 | WING NUT | |
| 7 | 4950307 | CABLE CLIP | |
| 8 |  | 0012883 | SCREW, PT KA 40 X 22 |
| 9 |  | 4901325 | CABLE GUIDE |
| 10 | 4961051 | SWITCH CCS59 | |
