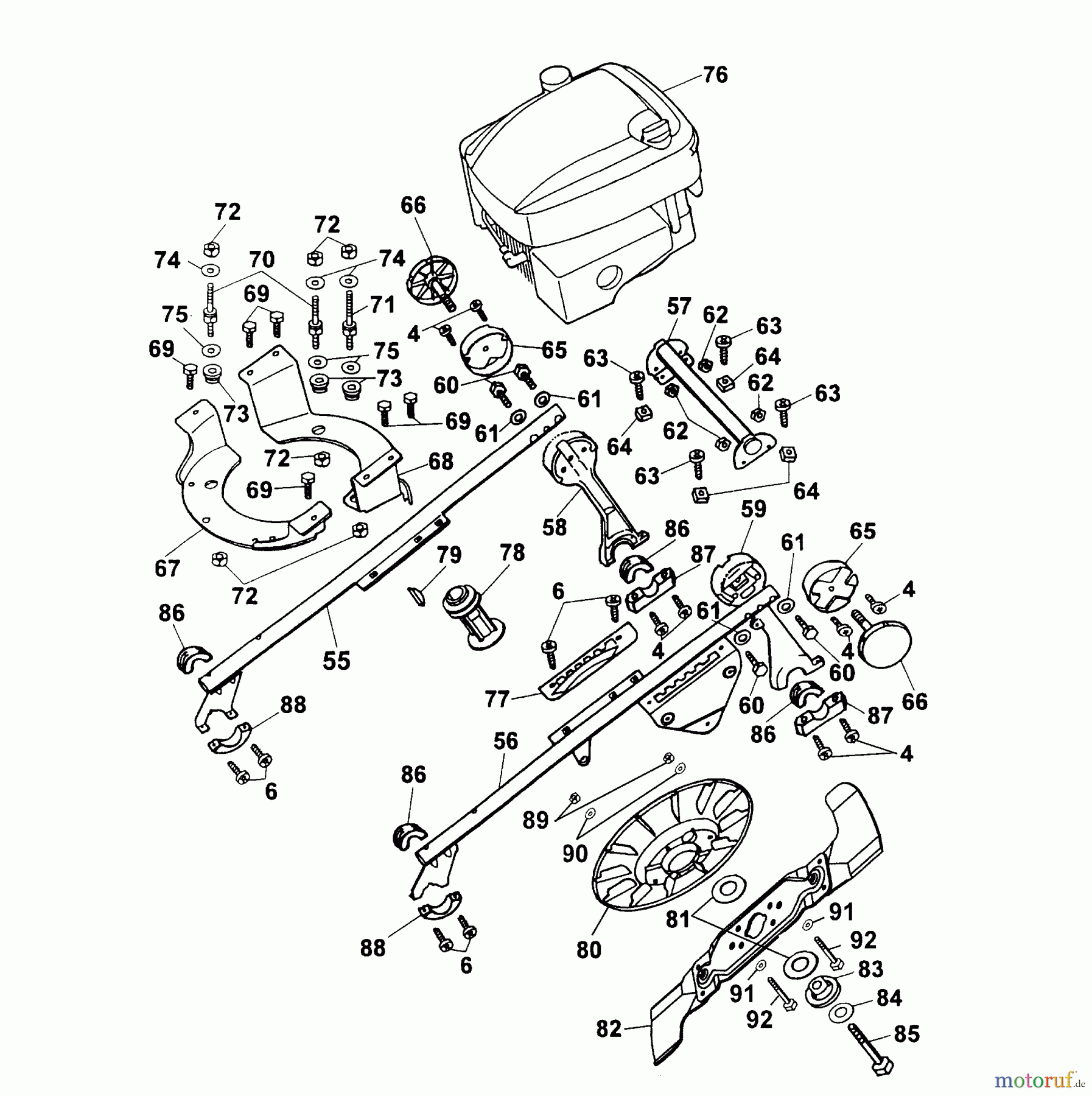

Frame, Blade, Motor 4342000 Series B-E (2003)

Pos		Article Number	Description
4		0012607	SCREW
6		0012605	SCREW
55		6450010	FRAME
56		6450012	FRAME
57		6450014	PIPE
58		6450100	SUPPORT
59		6450102	SUPPORT
60		0010313	SCREW
61		6150182	DISC, CURVED
62		0016311	NUT M6
63		0012831	SCREW
64		0016405	NUT
65		6450188	FIXING CASE
66		4317010	HANDWHEEL
67		6450112	MOTOR SUPPORT
68		6450114	MOTOR SUPPORT
69		0010386	SCREW
70		6450170	BOLT
71		6450171	BOLT
72		0016312	HEXAGON NUT M8
73		6450319	Rubber buffer
74		6450138	Bush
75		0017291	WASHER
76		2069070	MOTOR
77		6450136	CRANK
78		6450141	COUPLING
79		0029130	WASHER
80		6450317	FAN
81		4005403	Clutch 1,3MM Cosid110
82		4350094	4350094
***		4350040	BLADE TIPS
83		4840402	COUPLING CAP
84		0017105	STRAIN WASHER
85		0010264	SCREW 3/8"-24+3 3/8"-DIN931-10
86		6450309	BUSHING
87		6430323	SHELL
88		6450305	SHELL
90		0016311	NUT M6
91		0017110	WASHER 6,4 / 25X2,0
92		0017289	DISC
93		0010365	SCREW
