Wolf-Garten TC 32 MAC 3617000 Series A (2004) Battery, Motor Spareparts

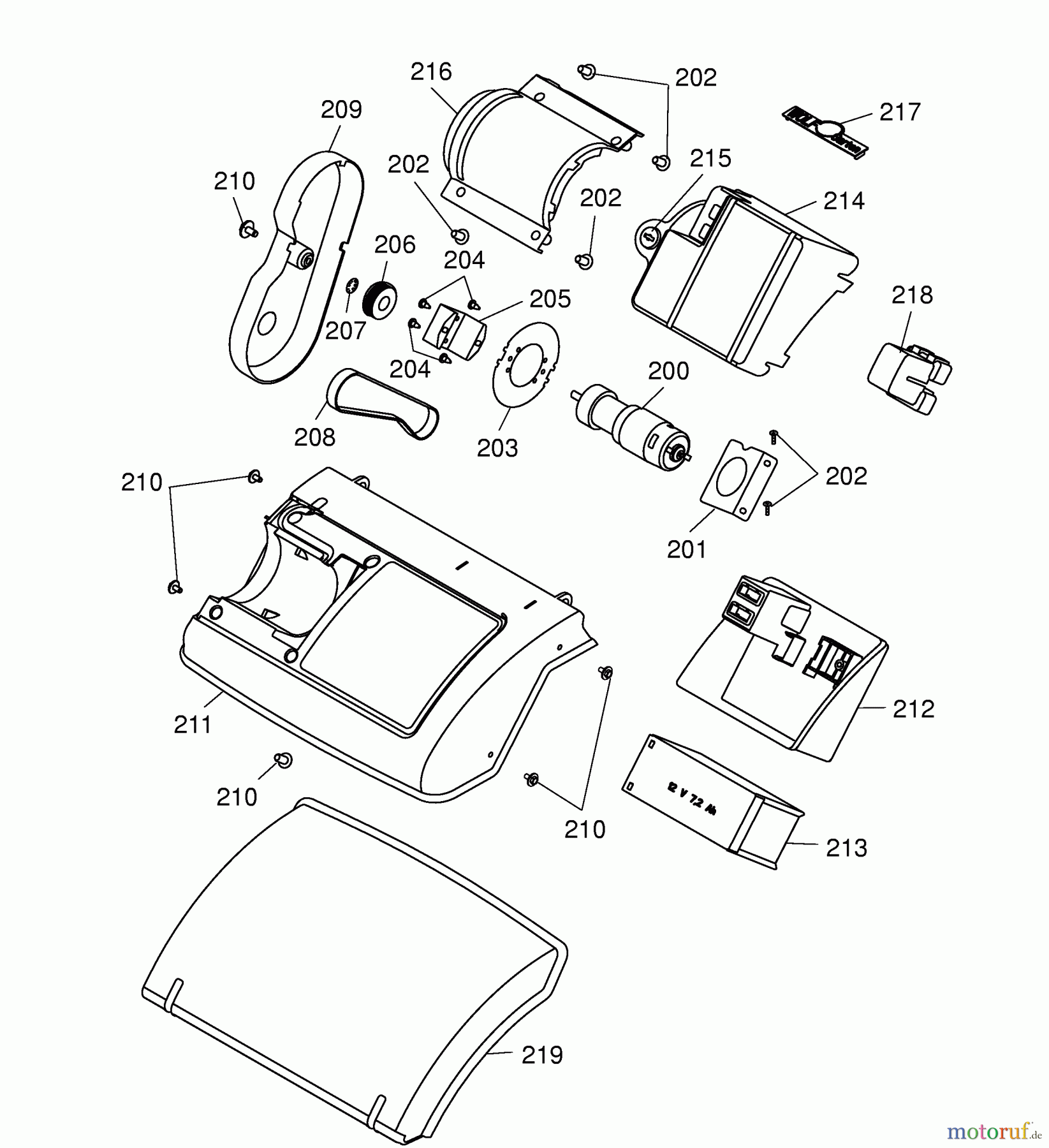

Battery, Motor 3617000 Series A (2004)
| Pos | Article Number | Description | |
| 200 | 1068000 | MOTOR | |
| 201 | 3617108 | Motor Holder, Rear | |
| 202 |  | 0012630 | SCREW |
| 203 | 3617103 | MOTOR SUPPORT | |
| 204 | 0012854 | SCREW | |
| 205 | 3617150 | Motor Holder | |
| 206 | 3617315 | CROWN GEAR DW= 36,61 | |
| 207 |  | 0020694 | SPEEDFIX RETAINER |
| 208 | 0039010 | BELT TC32MAC | |
| 209 | 3617305 | BELT GUARD | |
| 210 | 0015962 | Sheet Metal Screw 4,8X16 | |
| 211 | 3617300 | Chassis cover | |
| 212 | 3617311 | BATTERY BOX DOWN | |
| 213 | 3617060 | BATTERY | |
| 214 | 3617310 | BATTERY BOX UP | |
| 215 | 3617317 | SCREW CAP QTS 124 BLK | |
| 216 | 3617303 | MOTOR COVER | |
| 217 | 0051115 | WOLF-GARTEN-MARKE (103MM) | |
| 218 |  | 4911070 | BATTERY PLUG |
| 219 | 3620303 | REAR FLAP | |
