Cub Cadet RZT 50 17AA5D7P603 (2006) Complete governor lever Spareparts

• Start
• Cub Cadet
• Zero Turn
• RZT 50
• 17AA5D7P603 (2006)
• Complete governor lever

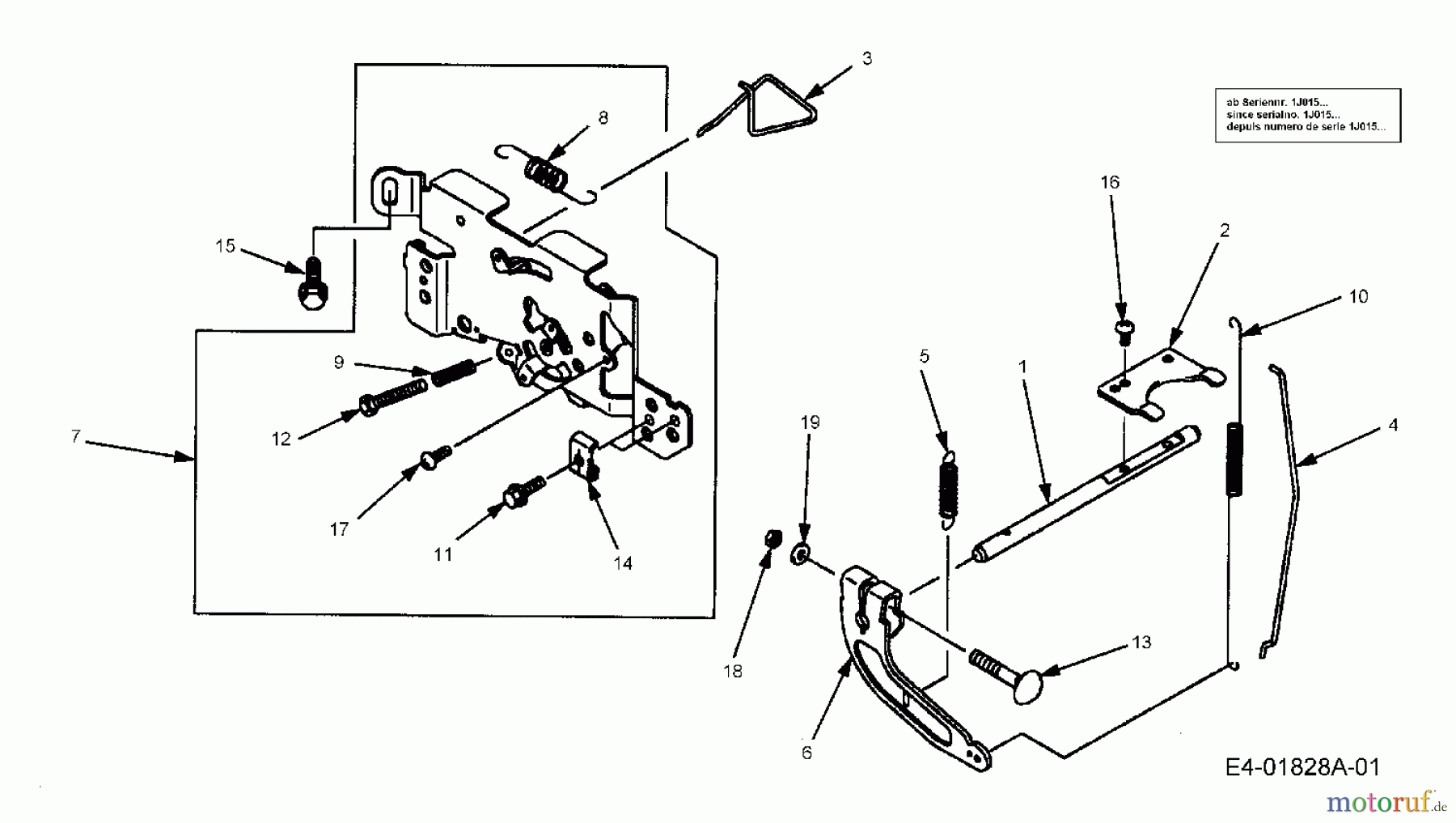

Complete governor lever 17AA5D7P603 (2006)

Pos		Article Number	Description
1		KM131077013	SHAFT-TINE
2		KM132717018	PLATE
3		KM161697006	LEVER,CHOKE
4		KM161717004	Governor link
5		KM391297004	Return spring
6		KM491037004	LEVER-GOVERNOR
7		KM491137017	PLATTE KPL.
8		KM921457004	Spring
9		KM921457005	Spring
10		KM921457034	Spring-governor link
11		KM921502182	BOLT-5X18
12		KM921517014	Screw
13		KM921537005	BOLT 6X35
14		KM921707001	CLAMP
15		KM130B0612	BOLT,FLANGED
16		KM214B0408	SCREW-PAN
17		KM-214B0412
18		KM311B0600	315B1000/KM-315B1000
19		KM411B0600	WASHER
