Goldpower GP 155/96 13DM458F631 (2008) Engine accessories Spareparts

• Start
• Goldpower
• Lawn tractors
• GP 155/96
• 13DM458F631 (2008)
• Engine accessories

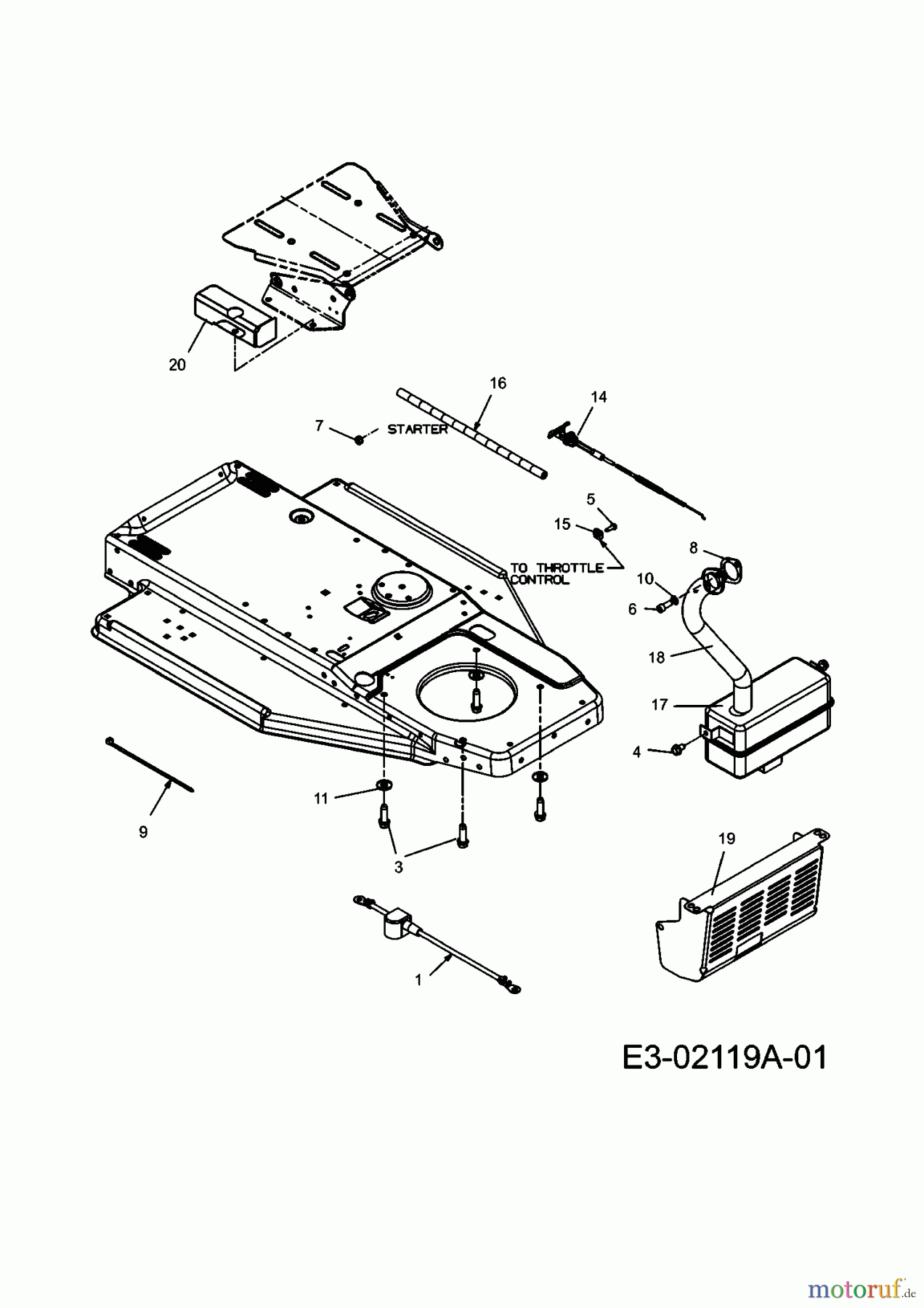

Engine accessories 13DM458F631 (2008)

Pos		Article Number	Description
1		629-0705	WIRE ASM 6X14LG:RED W/BOOT
3		710-0502A	SCR:TTSEMS:3/8-16:1.250:HXLWSH
4		710-0604A	SCREW:TT:5/16-18:0.625HXINDWSH
5		710-1237	HEXSCREW:T:10-32:.625:HXINDWSH
6		710-1314A	SCR:SOC HD:5/16-18:.750 GR8
7		712-0271	NUT:SEMS:1/4-20
8		721-0208	EXHAUST GSKT 10 & 11 HP
9		725-0157	CBL:TIE: 3/16 X .05 X 7.4
10		736-0119	WASHER:LOCK:5/16:SPLT:REG
11		736-3072	WASH:FLAT:.38 x.93 x.110:HT
14		746-0616A	CHOKE CONTROL 23" GREEN
15		751B213146	CLAMP:CASNG:B&S THROTTLE
16		751-0535	FUEL LINE HOSE BLACK
17		751-0627	MFLR:OHV 400
18		751-0628A	EXHAUST PIPE
19		751-0631A637	SHEILD-HOOD STYLE 8 2.58LG
20		783-0297	SHIELD: SWITCH SEAT
