> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 9000001 > 12 Volt Start Engine Kit 37-4640

Spare Parts Lists for Toro Roth / TORO 12 Volt Start Engine Kit 37-4640

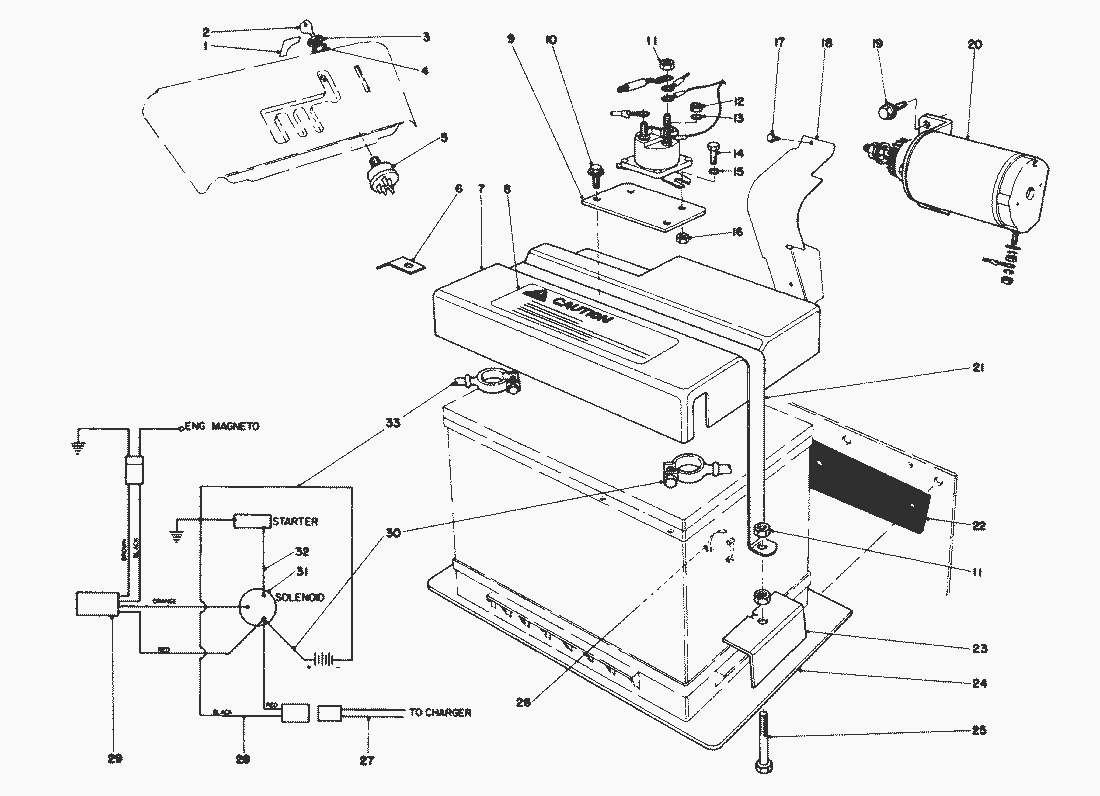

spare parts list


pos.decriptionspare part number
1Decal Key Switch38-0640
2Key218-412
3Hex Nut218-461
4Lockwasher3254-5
5Starter Switch23-0660
6Bracket Wire Clamp22-9060
7Battery Cover (Incl. Ref.8-2839
8Decal-Caution38-0630
9Solenoid Mounting Bracket22-8880
10Screw Thread Forming32144-10
11Hex Nut3217-6
12Hex Nut3219-14
13Lockwasher3254-1
14Capscrew321-2
15Lockwasher3255-7
16MUTTER3296-42
17Self Tapping Screw32108-57
18Pinion Shield20-7060
19Hex Hd. Sems Screw32140-45
20
21Strap Battery Cover22-8850
22Battery Isolation Pad24-6150
23Battery Hold Downs22-8870
24Battery Mounting Plate22-8830
25Capscrew322-10
26Tie Wrap3290-378
27Wire Assembly29-7830
28Wire Assembly29-7820
29Wire Harness29-7810
30Battery Cable22-9320
31Solenoid6-1600
32Wire Assembly22-9310
33Battery Cable22-9330
Charger 110V (U.S. &Canada)26-3870
Charger 220V (Europe)26-7140
