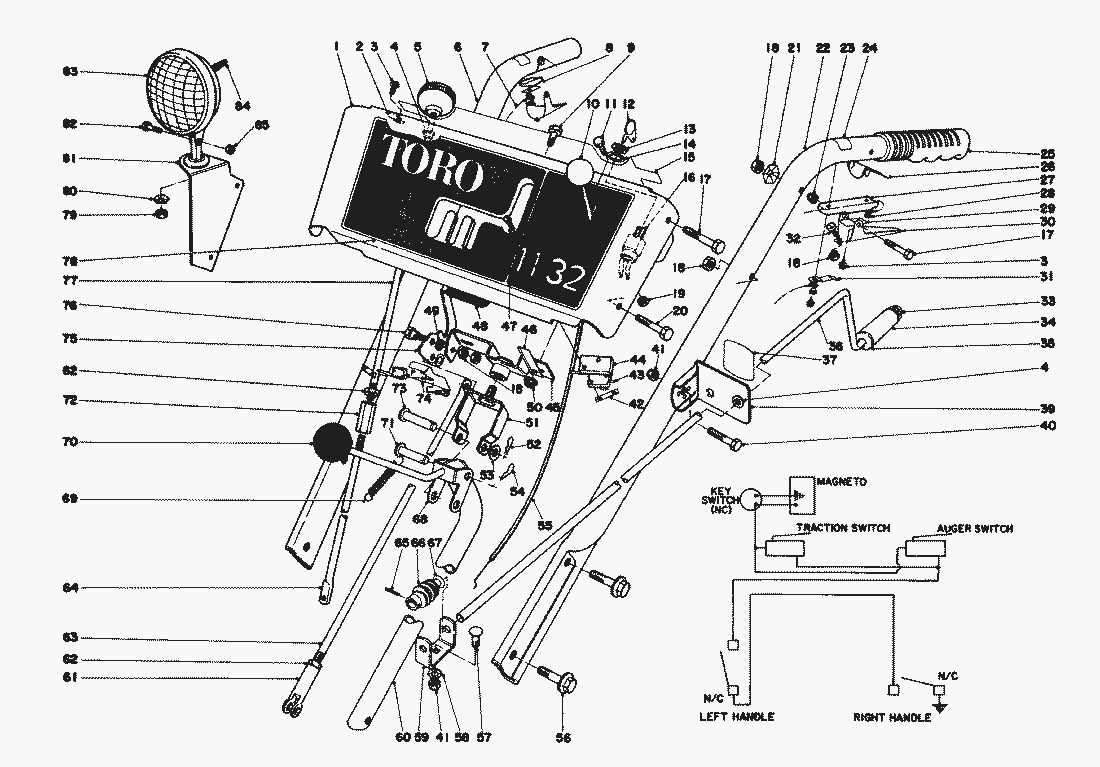

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
		8-1569

pos.	decription	spare part number
2	Clip	20-2810
3	Screw Thread Forming	33-2270
4	Nyliner	256-249
5	Knob	233-10
6	Handle Right	29-6430
7	Wire Harness	29-6580
8	Insulator-Interlock	17-5680
9	SCHRAUBE	321-3
10	Knob	233-36
11	Hex Sems Screw	32140-99
12	Keys	33-2010
13	Hex Nut	218-461
14	Lockwasher	3254-5
15	Decal Escutcheon Back	29-6330
16	Key Switch	29-5560
17	Capscrew	321-11
18	Lock Nut	32152-4
19	Locknut	32146-18
20	Hex. Hd. Capscrew	321-9
21	Washer Pyramidal	3290-257
22	Handle Left	29-6440
23	Capnut	32111-7
24	Decal Safety Interlock	29-6360
25	Handle Grip	6-0450
26	Spring Interlock	17-5720
27	Dual Bracket Insulator	27-0260
28	Washer Insulator	17-5700
29	Contact Interlock	17-5690
30	Lever Interlock	27-0450
31	Bracket Contact	17-6510
32	Nylon Pan Hd. Screw	3290-401
33	Push-On Speed Nut	3290-320
34	Chute Control Grip	20-2060
35	Flat Washer	3256-24
36	Rod Chute Control	8-8570
37	Decal Chute Direction	29-6370
39	Bracket Chute Control Mounting (Incl. Ref. 4 & 37)	6-3069
40	Capscrew	322-9
41	MUTTER	3296-29
42	Speed Nut	3290-354
43	Micro Switch	12-3320
44	Pad Switch Mounting	22-7950
45	Swivel Block	8-7930
46	Retainer Wire	26-9410
47	Machine Screw	3290-313
48	Grip Auger Handle	11-8970
49	Washer	3256-23
