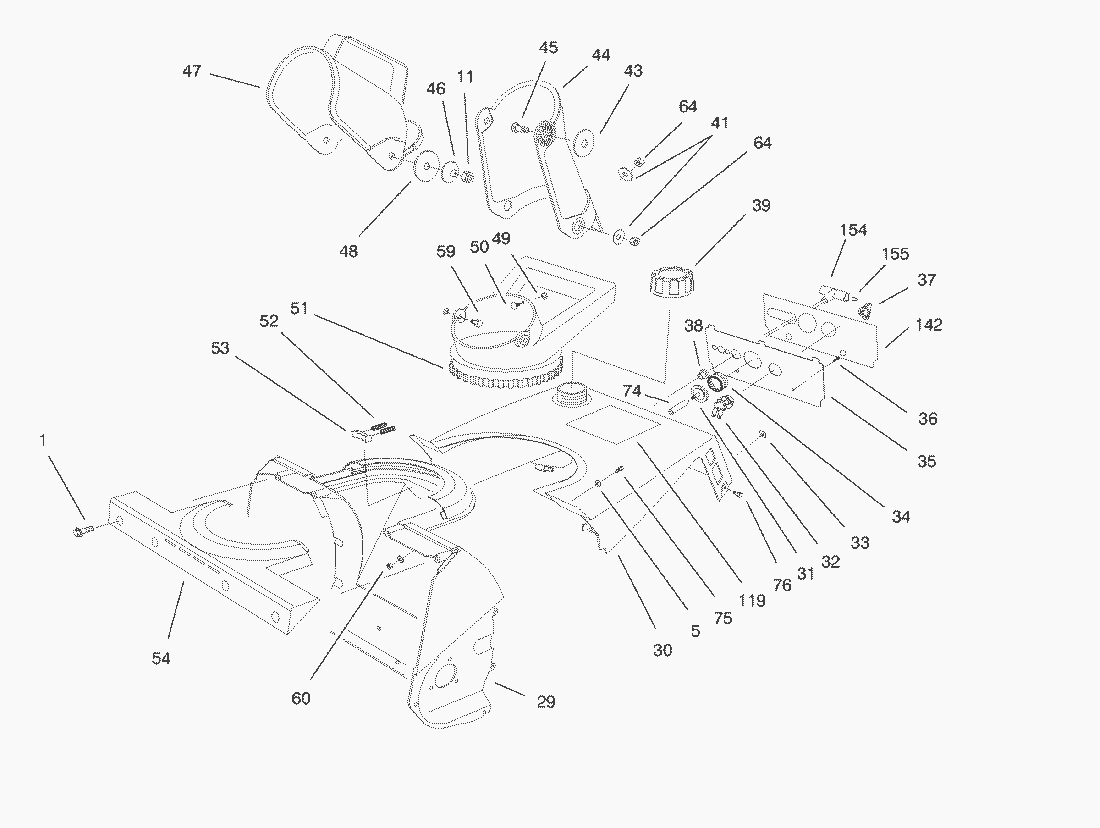

Spare Parts Lists for Toro Roth / TORO Chute Assy.

pos.	decription	spare part number
1	Screw-Hex Washer Hd.	46-8094
5	Washer-Plain	3256-1
11	MUTTER	3296-29
29	Housing	75-8660
30	Shroud-Upper	75-8800
31	Body-Primer	44-2750
32	Switch	40-5940
33	Nut	49-1490
34	Bulb-Primer	66-7460
35	Panel-Control (Model No. 38170 Only)	75-9031
36	Screw-Slotted Flange Hd.	32144-53
37	Key-Ignition	63-8360
38	Guide-Starter Rope	23-7470
39	Gas Cap Assembly	55-3573
41	Washer-Flat	3256-81
43	Washer-Rubber	95-1905
45	Carriage Bolt	3230-2
46	Washer Belleville	3290-340
47	Deflector-Chute	75-8770
48	Washer	3256-68
49	Retainer	32115-15
50	Screw-Carriage	3229-11
51	Handle-Chute	75-8670
52	Spring-Compression	75-9170
53	Detent-Chute	75-9160
54	Retainer-Chute	75-8650
59	SCHRAUBE	321-3
60	MUTTER	3296-42
64	STOPMUTTER	3296-56
74	Hose-Primer	44-3173
75	Screw-Phillips	3250-32
76	Screw-Thread Forming	32144-89
118	Chute-Discharge	75-8762
119	Decal-Toro (Model No. 38170 Only)	80-0680
139	Decal-Control Panel (Model No. 38171 only)	94-2565
154	Handle-Starter	92-4853
155	Staple-Handle	92-5424
