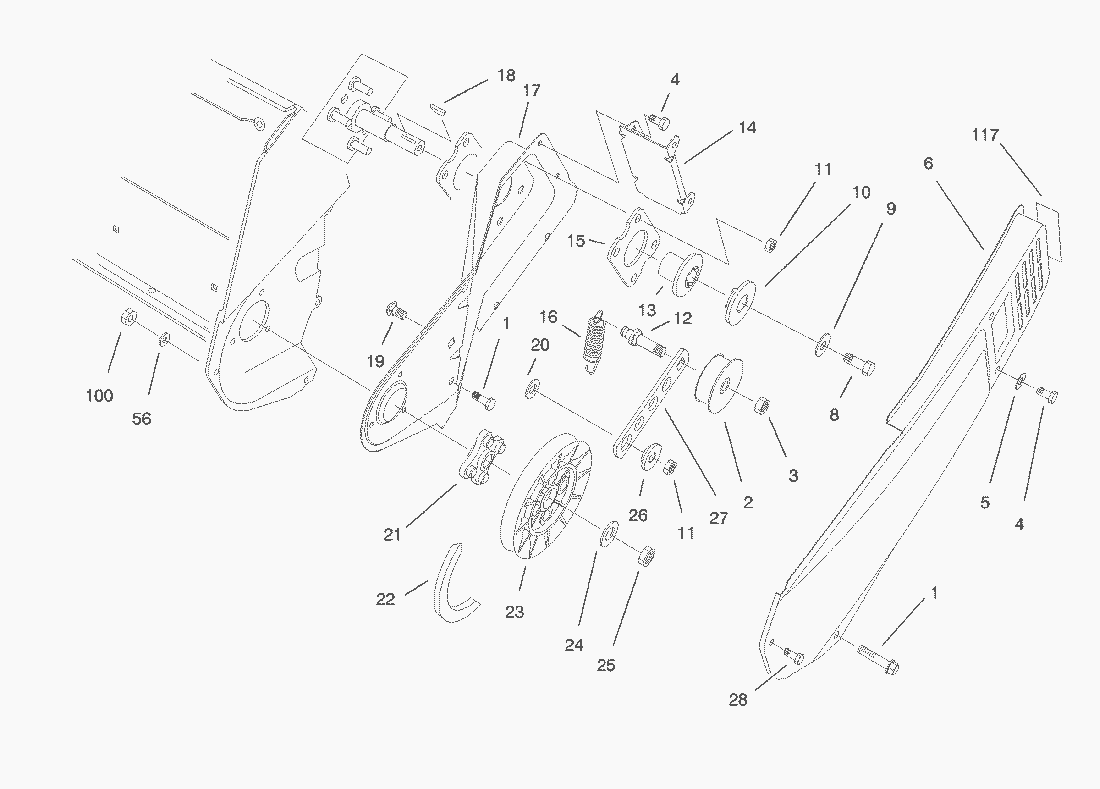

Spare Parts Lists for Toro Roth / TORO Pulley and Belt Cover Assy.

pos.	decription	spare part number
1	Screw-Hex Washer Hd.	46-8094
2	Pulley-Idler	71-5260
3	Nut-Lock	3296-59
4	Screw Thread Forming	32144-4
5	Washer-Plain	3256-1
6	Cover-Belt	75-8830
8	Screw-Locking Hex. Hd.	3235-6
9	Washer-Flat	3256-71
10	Cap-Sheave	71-5060
11	MUTTER	3296-29
12	Pin-Idler	75-8720
13	Hub-Sheave	71-5050
14	Bracket-Belt Cover	75-8870
15	Plate-Engine	71-5290
16	Spring-Idler	75-9020
17	Sideplate-L.H.	75-8810
18	Woodruff Key	3257-3
19	Screw-Carriage	3230-23
20	Washer	25-5640
21	Hub-Driven Pulley	75-8740
22	V-Belt-Drive	75-9010
23	Pulley-Driven	75-8750
24	Washer-Flat	3256-25
25	Nut-Lock	3296-38
26	Bushing-Idler	75-8700
27	Arm-Idler	75-9050
28	Screw-Hex Washer Hd.	32105-23
56	Washer	3256-14
100	Nut	3296-2
117	Decal-Hot	94-2561
