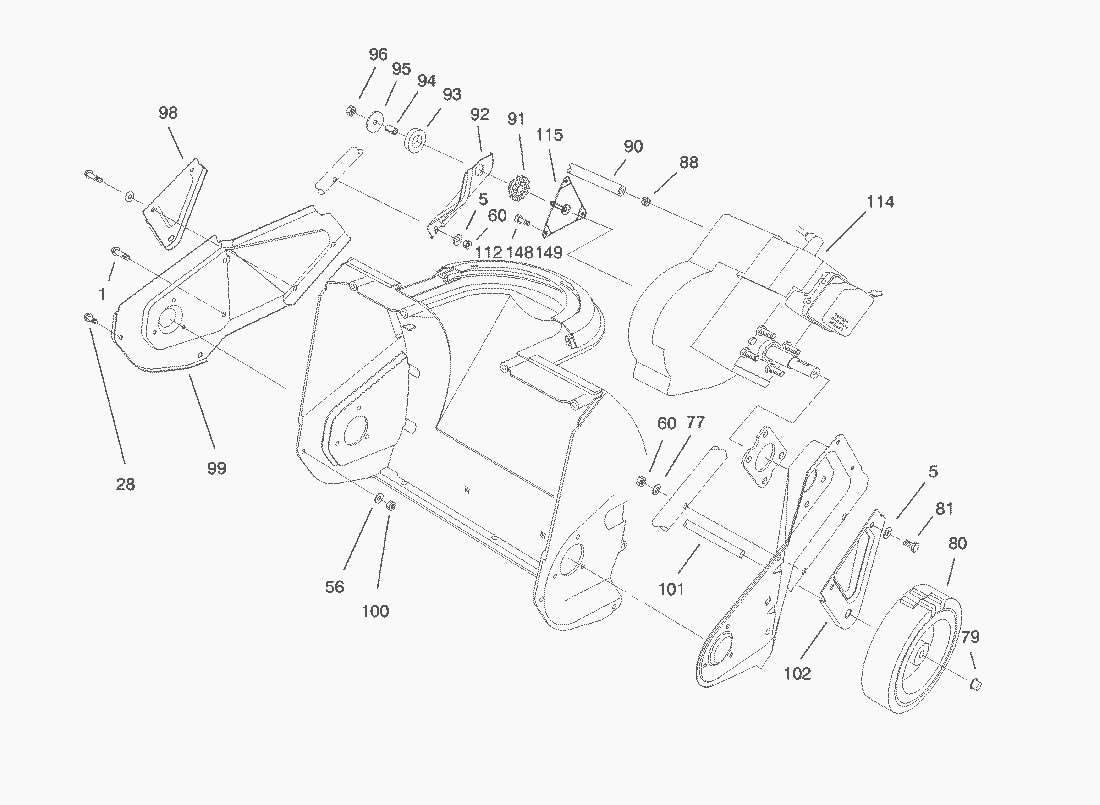

Spare Parts Lists for Toro Roth / TORO Engine and Wheel Assy.

pos.	decription	spare part number
1	Screw-Hex Washer Hd.	46-8094
5	Washer-Plain	3256-1
28	Screw-Hex Washer Hd.	32105-23
56	Washer	3256-14
60	MUTTER	3296-42
77	Washer	3-7501
79	Push-On Speed Nut	3290-320
80	Wheel	23-3250
81	Capscrew	321-10
88	Clamp-Hose	2412-98
90	Hose-Fuel	49-2483
91	Bushing-Isolation	75-9100
92	Support-Engine	75-8980
93	Ring-Isolator	95-1903
94	Spacer	80-0650
95	Washer-Fender	3256-58
96	Locknut	3296-16
98	Bracket-Wheel R.H.	75-8900
99	Sideplate-R.H.	75-8820
100	Nut	3296-2
101	Axle	27-0062
102	Bracket-Wheel L.H.	75-8910
112	Screw-Thread Forming	94-2789
114
115	Bracket-& Stud Assembly	92-6012
148	Screw	92-6031
149	Lockwasher	3255-10
