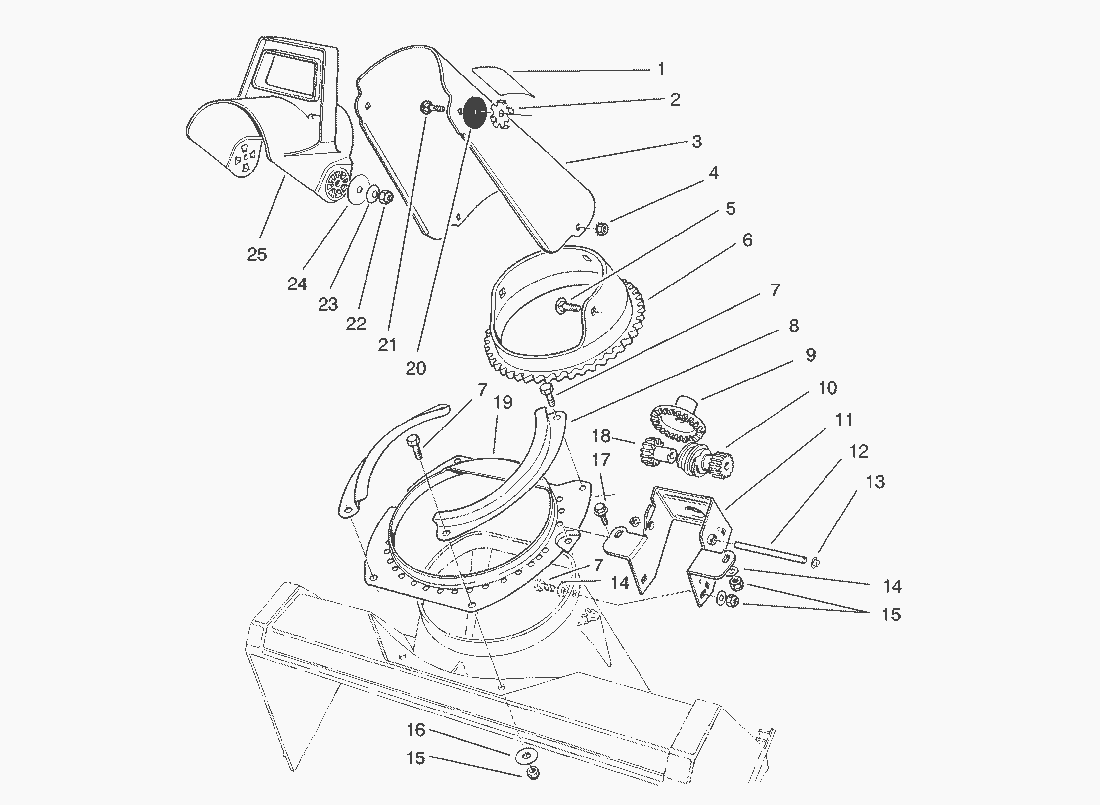

Spare Parts Lists for Toro Roth / TORO Discharge Chute Assy.

pos.	decription	spare part number
		94-2790

Lists

pos.	decription	spare part number
1	Decal-Danger	94-2900
	Decal-Danger	94-2901
2	Plate-Friction	55-8950
	Discharge Chute Assembly (Incl. Ref.	94-2791
4	Locknut	32149-1
5	Carriage Bolt	3230-18
6	Gear Ring-Chute	55-8720
7	Capscrew	321-4
8	Retainer-Chute Ring	55-8910
9	Gear-Face	55-8740
10	Gear-Worm/Spur	55-8730
11	Bracket-Chute Gears	84-5650
12	Shaft-Gear	55-9150
13	SICHERUNGSKAPPE	32112-11
14	Washer	3256-22
15	MUTTER	3296-42
16	Washer	3256-22
17	Screw-Special	46-8092
18	Spacer/Spur Gear	55-8750
19	Support-Chute Ring	55-8921
20	Washer Rubber	20-4320
21	Bolt-Carriage	3230-22
22	MUTTER	3296-29
23	Washer-Belleville	3290-456
24	Washer	3256-68
25	Deflector	56-2680
