> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 3000 > 642/38435 > 7900001 > Starter Engine & Switch Housing Assy.

Spare Parts Lists for Toro Roth / TORO Starter Engine & Switch Housing Assy.




pos.decriptionspare part number
Cord-7 Ft.28-9170
Motor Assembly84-5292

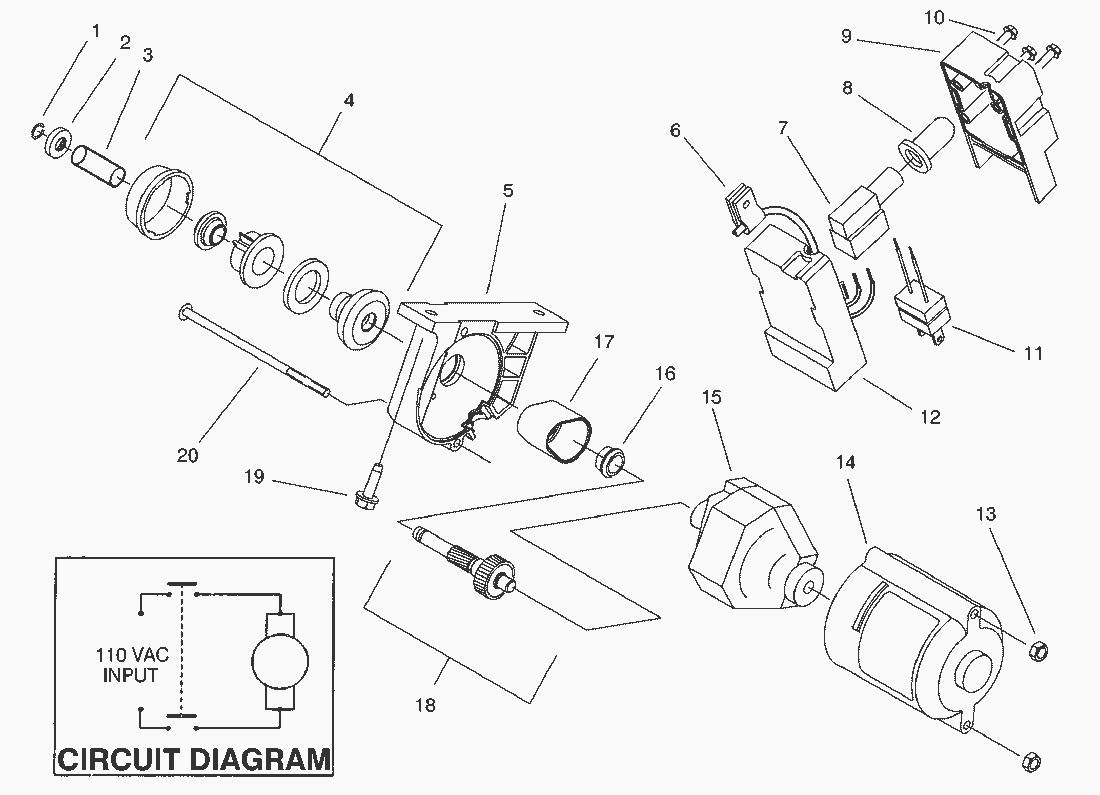

spare parts list


pos.decriptionspare part number
1Retaining Ring61-4680
2Pinion Stop61-4670
3Spring61-4690
4Pinion Assembly61-4700
5Housing-Mtg.80-0710
6Clamp-Cable (Model No. 38175 Only)2412-91
7Starter Switch61-4820
8Boot-Switch61-4810
9Cap-Switch Housing80-3740
10Thread Forming Screw32144-27
11Plug-Power94-9933
12Base-Switch Housing80-3730
13Nut3296-2
14Housing-Motor83-7350
15Starter Motor Assembly70-7801
16Bushing-upper70-7900
17Cover-Gear70-7850
18Shaft & Gear Assembly92-6003
19Screw, M856-6380
20Screw-Phillips Pan Hd32144-101
