> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 6000001 > Engine Assy.

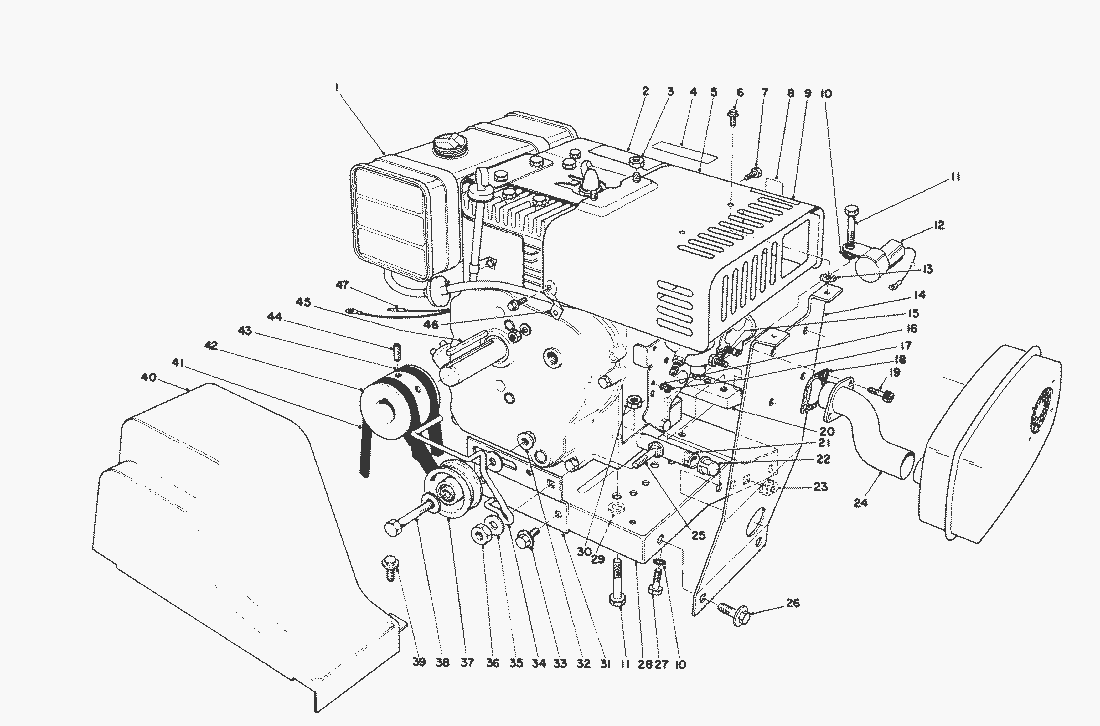

Spare Parts Lists for Toro Roth / TORO Engine Assy.

spare parts list

pos.	decription	spare part number
1	Engine	39-1821
2	Decal-Hazards Caution	54-9750
3	Nut	32153-3
4	Decal Syncro Balance	42-1740
5	Heater Box	39-1780
6	Screw Thread Forming	32144-4
7	Screw	32144-12
8	Choke Decal	29-6400
9	Decal-Hot Surface Warning	53-7680
10	Int.Tooth Lockwasher	3254-2
11	Capscrew	322-9
12	Interlock Module	41-8610
13	Washer	25-1600
14	Muffler Mounting Bracket	39-1740
15	Hex Sems Screw	32140-70
16	Internal Tooth Lockwasher	3254-10
17	Locknut	3296-54
18	Gasket	39-1810
19	Socket Screw	3274-12
20	Engine Mounting Block	22-8960
21	Pipe Nipple	289-20
22	Pipe Cap	288-4
23	Retained Nut	3290-433
24	Exhaust Pipe	39-1800
25	Carriage Bolt	3231-27
26	Capscrew	323-6
27	Capscrew	322-3
28	Engine Base	43-7510
29	Washer	3256-23
30	MUTTER	3296-29
31	Bracket-Belt Idler	41-8580
32	Locknut	3290-357
33	Hex Thread Forming Screw	32144-15
34	Belt Guide	41-8590
35	Flat Washer	3256-24
36	Locknut	3296-39
37	Pulley Idler	244-63
38	Capscrew	323-8
39	Screw Thread Forming	32144-10
40	Belt Guard	17-6550
41	V-Belt Auger	26-9670
42	Engine Pulley	21-4100
43	V-Belt Traction	17-6540
44	Set Screw	3246-14
45	Key	5-0930
46	Brace Heater Box	39-1790
47	Wire	36-7490
