> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 6000001 > Engine B&S Model No. 252416-0677-01 (Cont.)

Spare Parts Lists for Toro Roth / TORO Engine B&S Model No. 252416-0677-01 (Cont.)


spare parts list 1
spare parts list 2


pos.decriptionspare part number
66884

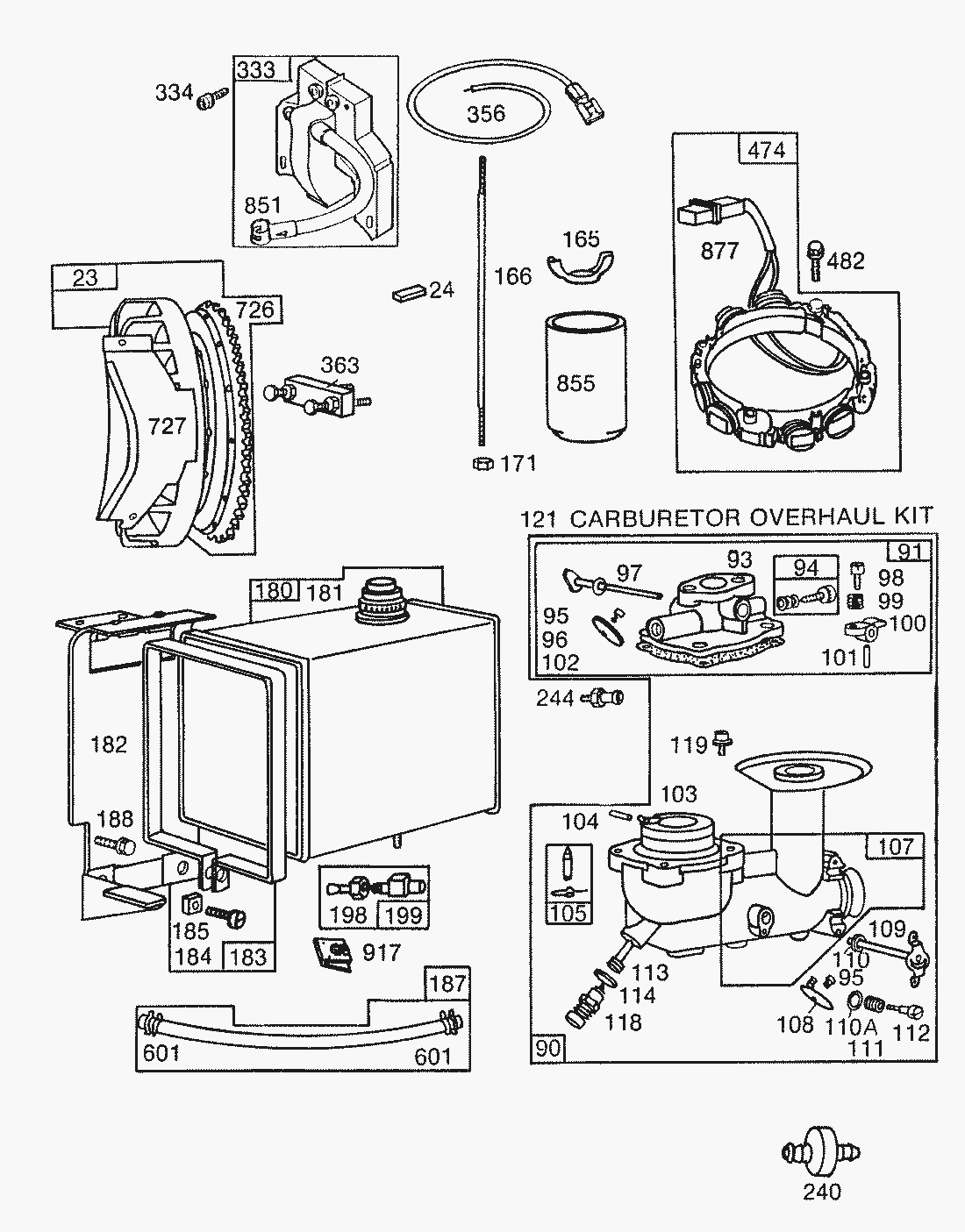

spare parts list


pos.decriptionspare part number
23Flywheel and Ring Gear Assy.-Magneto391988
24Key-Flywheel222698
90Carburetor Assembly (Manual Friction)391992
91Body Assembly-Upper Carburetor391833
93Bushing-Throttle Shaft23108
94Valve Assembly-Carburetor Idle292681
95Screw-Throttle and Choke Valve Mounting Sem93499
96Valve-Throttle221939
97Shaft and Lever-Throttle391596
9891920
99Spring-Throttle Adjustment26157
100Stop-Throttle61967
101Pin-Throttle Stop93043
102Gasket-Carburetor Body*27026
103Float-Carburetor298514
104Pin-Float Hinge230896
105Valve-Fuel Inlet394681
107Body Assembly-Lower Carburetor391829
108Valve-Choke391836
109Shaft and Lever-Choke391884
110Washer-Choke Lever222712
110Washer-Choke Lever62899
111Spring-Choke Lever26155
112Screw-Choke Lever23123
113Nozzle-Carburetor394730
114Gasket-Nozzle68667
118Valve-Needle99525
119Screw94152
121Carburetor Overhaul Kit394989
127Plug-Welch221747
165Nut-Wing93453
166Stud-Air Cleaner231007
171Nut-Hex.-1/4-2892129
180Tank Assy.-Fuel (4 Quart)290816
181Cap-Fuel Tank297866
182Bracket-Fuel Tank (4 Quart)222333
183Strap Assy. Fuel Tank291367
18491257
185Nut-Square-1/4-2090970
187Pipe-Fuel296004
188Screw-Sem93535
198Valve-Fuel Shut-Off293934
199Outlet-Fuel Tank297563
240Filter-Fuel298090
244Connector-Fuel Pipe230318
333Armature-Magneto398265
334Screw, Breaker Arm Mtg. Sem93381
356Wire-Ground39-880
363Puller-Flywheel(Optional Accessory)19203
474Stator-Alternator (Dual Circuit)393474
482Screw-Sem93621
601Clamp-Fuel Pipe93053
726Gear-Flywheel Ring (Includes Mounting Parts)392134
727Guard-Ring Gear: Uses: 93623 Screw (2); 90366 Lockwasher (2) To mount Guard221940
Screw93712
Lockwasher To mount Guard93713
851Terminal-Ignition Cable221798
855Stack-Carburetor Uses: 222726 Strap231145
877Diode and Connector Assy. (Dual Circuit)393456
917Valve Handle-Fuel Shut-Off223271
spare parts list


pos.decriptionspare part number
3Seal-Oil391086
55Housing-Rewind Starter398099
56Pulley, Rewind Starter295871
57Spring, Rewind Starter294303
60Handle-Group398101
63Spring-Ratchet260414
64Adapter-Ratchet Spring230543
65Screw-Rewind Starter93105
66Clutch Assy.-Rewind Starter394558
67Housing-Starter Clutch394897
68Ball, Clutch63770
70Ratchet-Rewind Starter Clutch298799
71Washer, Clutch Retainer221653
73Screen-Rotating221796
75Washer, Spring220865
76Washer, Ratchet Sealing68238
231Screw-Sem93064
304Housing-Blower392738
305Screw, Blower Housing Mtg.93158
373Nut-Hex.92987
608Starter Assembly-Rewind397982
655Anchor-Spring222598
682Shield-Starter Clutch211516
