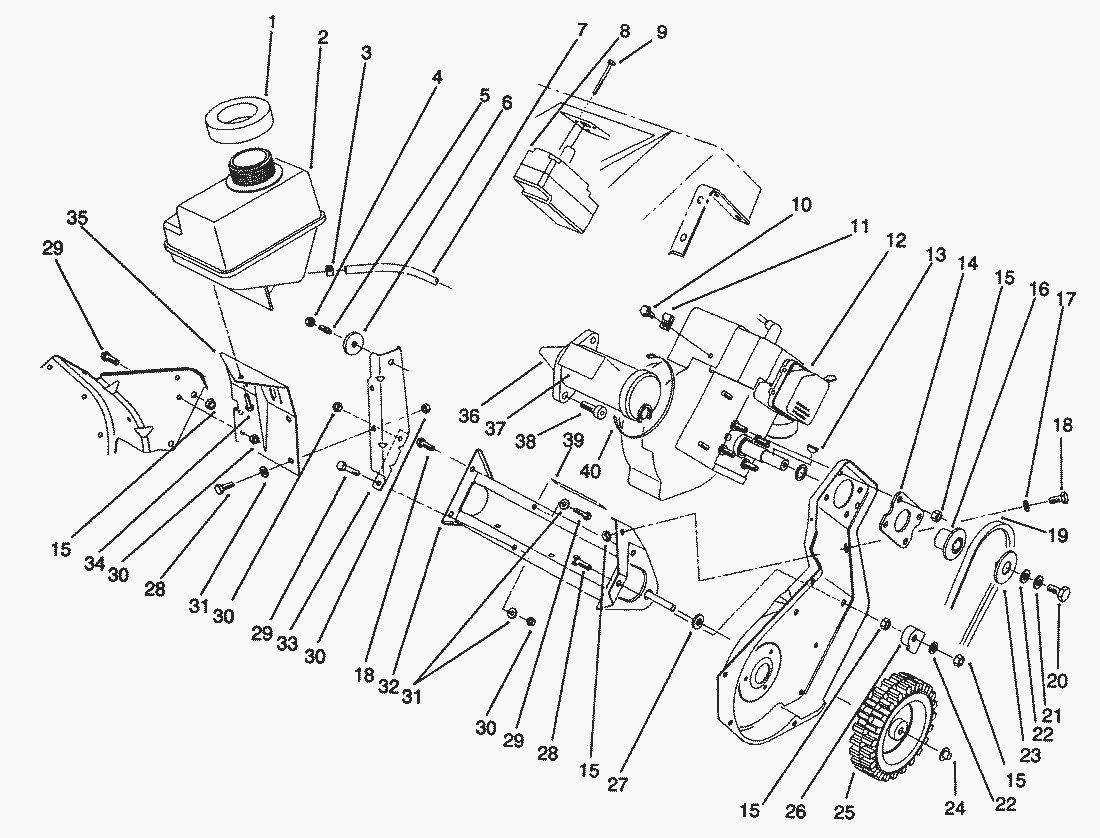

Spare Parts Lists for Toro Roth / TORO Engine Assy.

pos.	decription	spare part number
1	Seal-Tank	55-9310
2	Tank-Fuel	71-5020
3	Clamp	2412-86
4	Locknut	3296-16
5	Stud	38-8710
6	Washer-Engine Support	71-5320
7	Hose-Fuel	49-2482
8	Starter Switch Assembly	77-0401
9	Thread Forming Screw	32144-27
10	Screw Thread Forming	32144-10
11	Cable Clamp	2412-65
12
13	Woodruff Key	3257-3
14	Plate-Engine	71-5290
15	MUTTER	3296-29
16	Hub-Sheave	71-5050
17	Washer	3256-23
18	Capscrew	322-3
19	Belt-Drive	71-5380
20	Screw-Locking Hex. Hd.	3235-6
21	Washer-Belleville	3290-456
22	Washer-Flat	3256-71
23	Cap-Sheave	71-5060
24	Push-On Speed Nut	3290-320
25	Wheel	23-3250
26	Guide-Cable	71-5280
27	Spacer-Wheel	71-5440
28	Hex Hd. Capscrew	322-5
29	Capscrew	321-4
30	MUTTER	3296-42
31	Washer	3256-22
32	Frame Assembly	71-5200
33	Support-Engine	71-5210
34	Screw-Slotted Flange Hd.	32144-53
35	Bracket-Fuel Tank	71-5220
36
37
38	Screw-Button Hd. Sternantrieb (Model No. 38175 Only)	3274-88
39
40	Strap-Tie Down	3290-379
