Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CR 1000
>
603/38195
>
1000001
>
Starter Engine Assy.

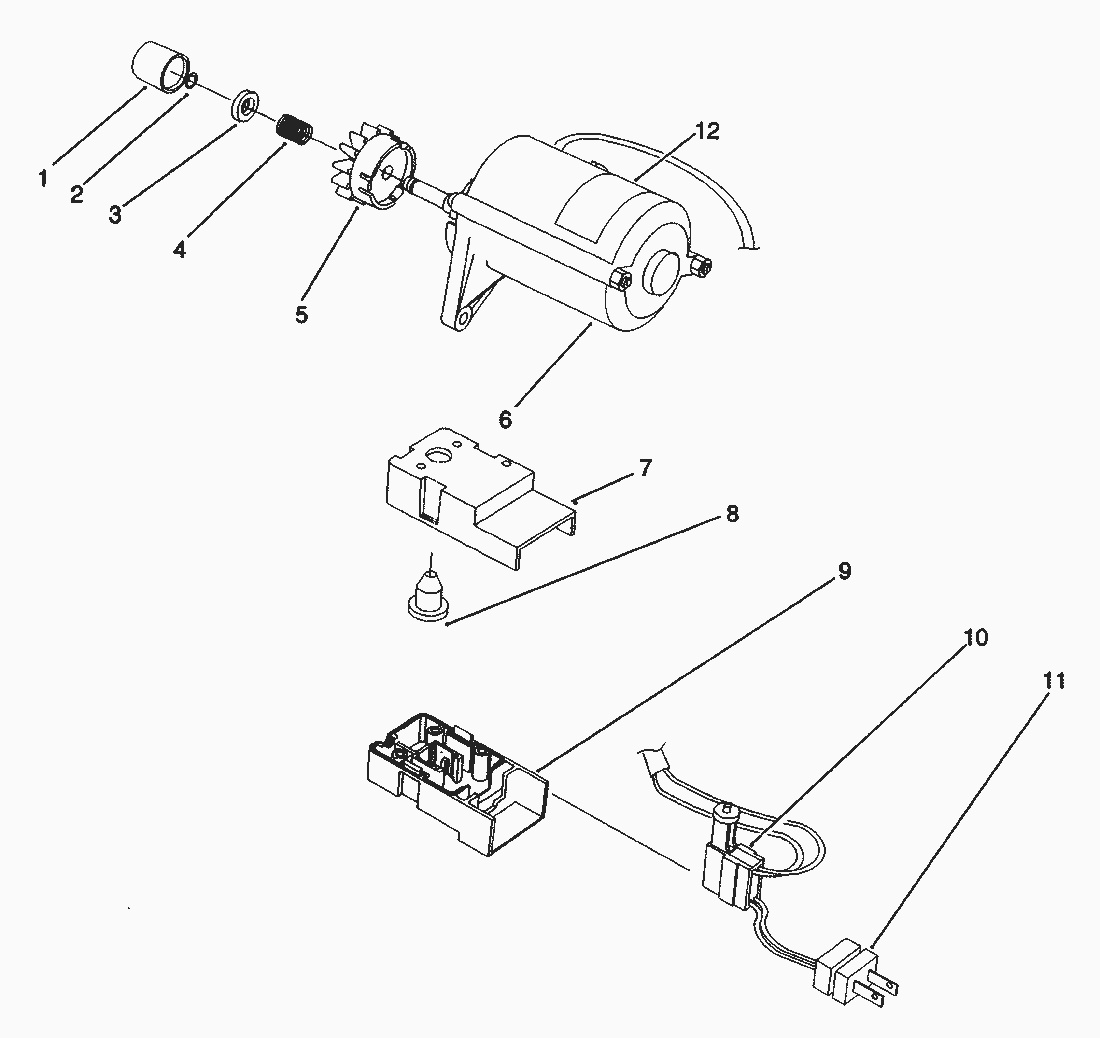

Spare Parts Lists for Toro Roth / TORO Starter Engine Assy.
pos.
decription
spare part number
Starter Switch Assembly
77-0401
pos.
decription
spare part number
1
Cap-Pinion
70-7890
2
Retaining Ring
61-4680
3
Pinion Stop
61-4670
4
Spring
61-4690
5
Pinion Assembly
80-4710
6
Starter Motor Assembly
70-7800
7
Cap-Switch Housing
80-3740
8
Boot-Switch
36-8350
9
Base-Switch Housing
80-3730
10
Switch
36-8340
11
Plug
36-8370
12
Decal-UL
77-0410
