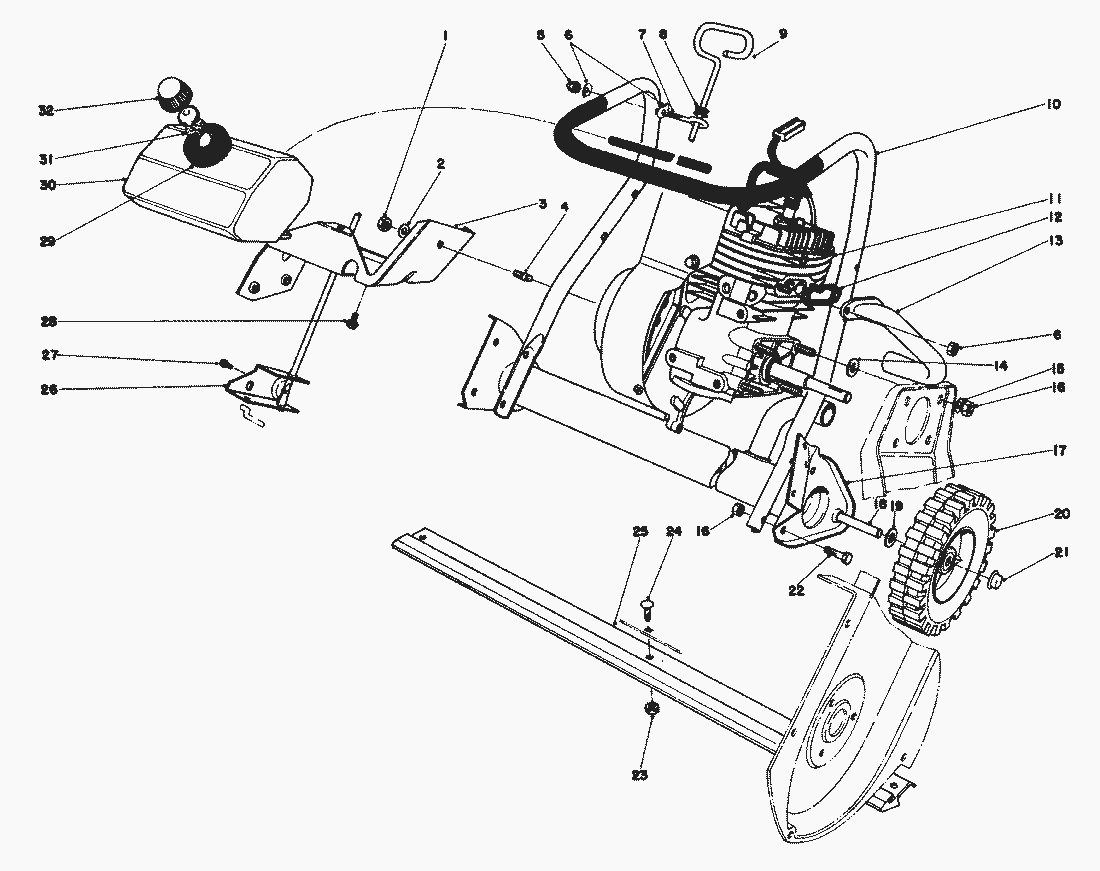

Spare Parts Lists for Toro Roth / TORO Engine Assy.

pos.	decription	spare part number
1	Locknut	32154-4
2	Washer	7-3315
3	Rear Support Engine	39-0860
4	Stud	38-8710
5	Capnut	32111-7
6	Washer	3-7501
7	Eye Bolt	3-9278
8	Grommet	237-73
9	Rod-Vane Adjustment	39-0850
10	Lower Handle	33-2120
11	Engine	221-627
12	Gasket-Exhaust Pipe	23-3810
13	Exhaust Pipe	27-0530
14	Spacer	4-2390
15	Washer	3256-23
16	MUTTER	3296-29
17	Muffler	26-6550
18	Axle	27-0060
19	Flat Washer	3256-24
20	Wheel	23-3250
21	Push-On Speed Nut	3290-320
22	Capscrew	322-3
23	Locknut	32149-2
24	Carriage Bolt	3229-1
25	Scraper	23-3170
26	Bracket-Vane Adjustment	39-0840
27	SCHRAUBE	12-5450
28	Hex Washer Hd. Thread Forming Screw	12-3270
29	Foam Pad	25-1610
30	Gas Tank	39-8670
31	Gasket	20-4620
32	Gas Cap (Incl. Ref.	42-0680
	Loose Parts	11-1459
	Decal Replacement Serial Plate	25-9150
