Spare Parts Lists for Toro Roth / TORO Shroud & Recoil Starter No. 590537

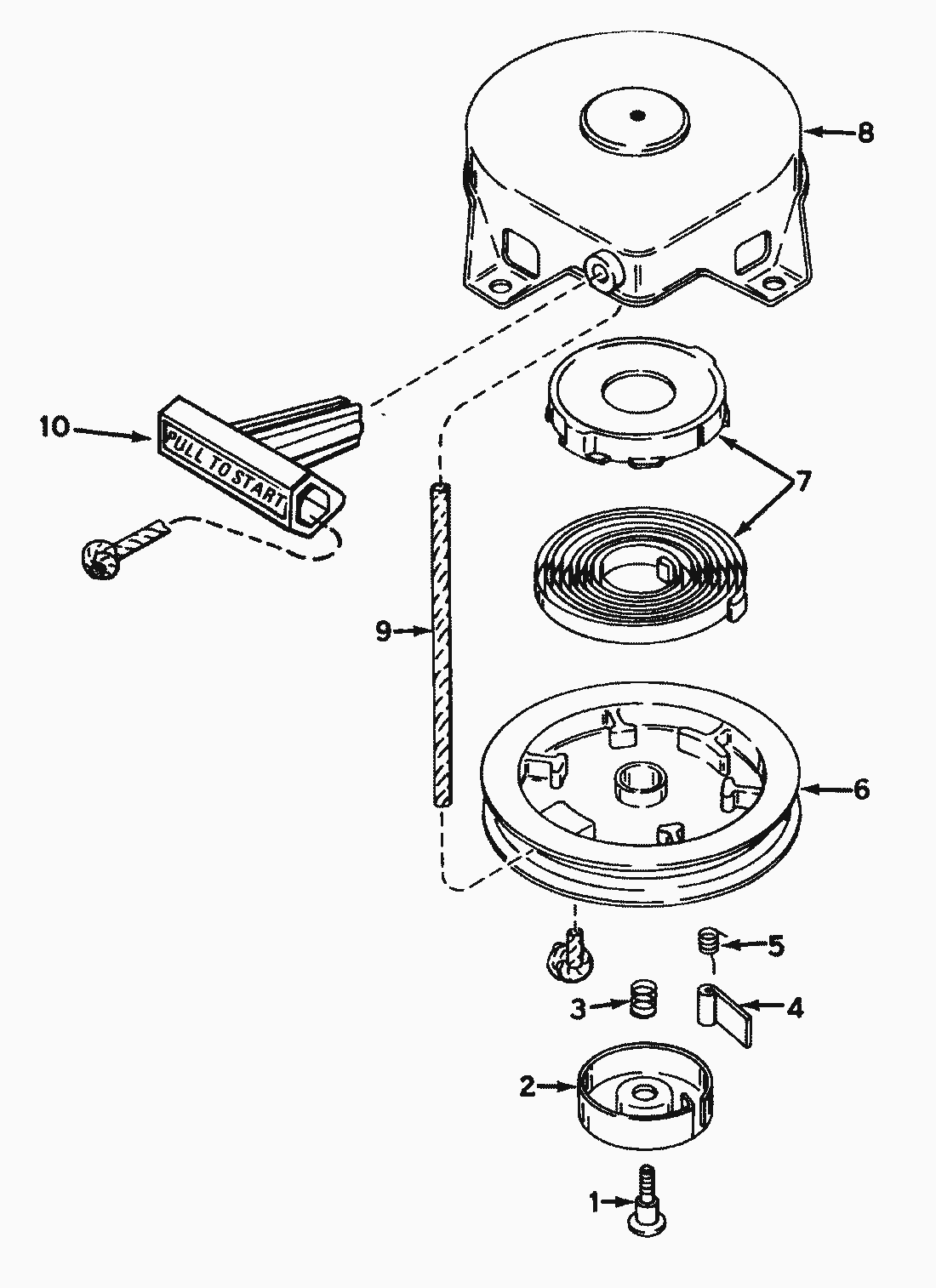

spare parts list


pos.decriptionspare part number
1Screw, Retainer590409A
2Retainer, R.H:590410
3Spring, Brake590411
4Dog, Starter590148
5Spring, R.H. Dog590412
6Pulley590413A
7Spring & Keeper Assy.590414
8Housing Assy., Starter590536
9Rope, Starter590535
10Handle Assy., Starter590452
