Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
S 200
>
609/38232
>
2000001
>
Ignition No. 610794A

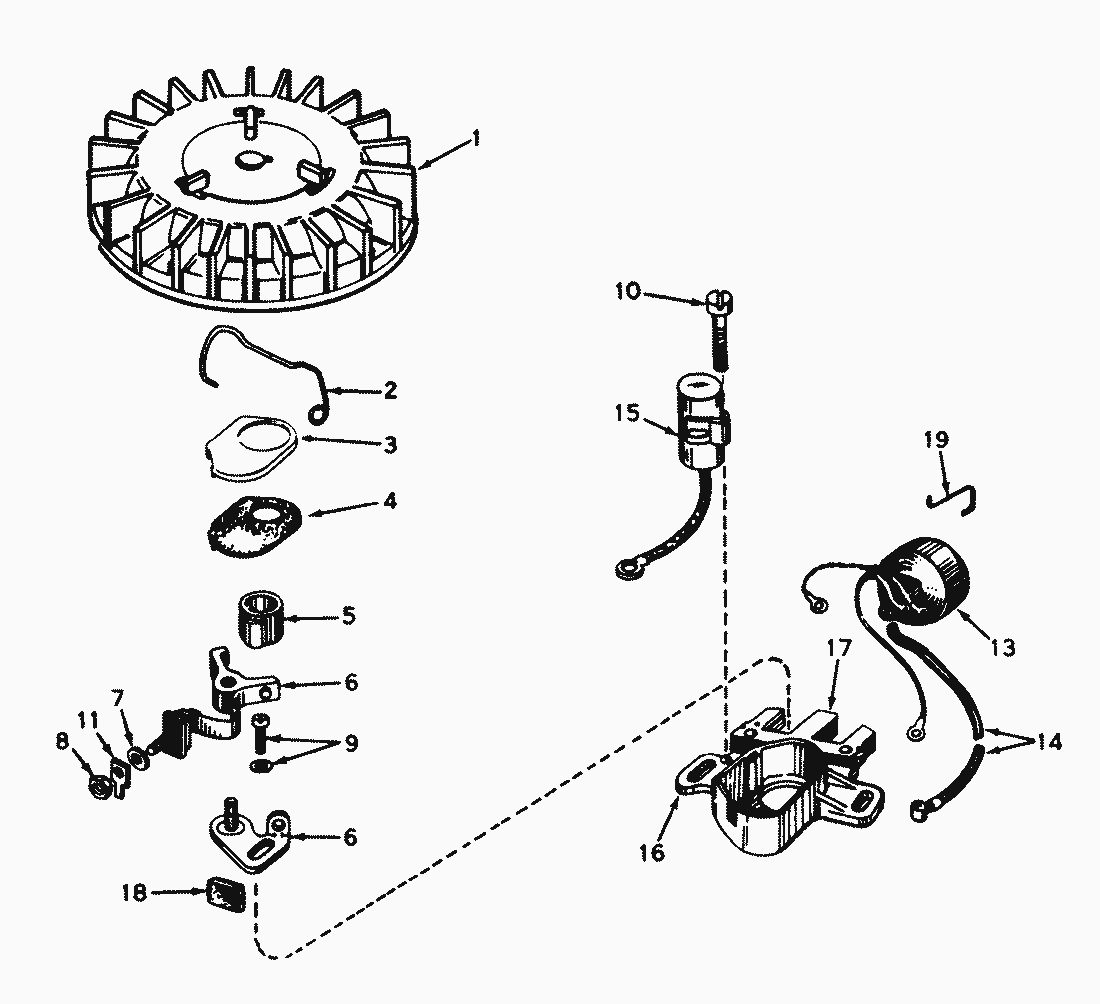

Spare Parts Lists for Toro Roth / TORO Ignition No. 610794A
pos.
decription
spare part number
610781A
30561B
30560A
pos.
decription
spare part number
2
Spring, Breaker Box Cover
30551
3
Cover, Dust
610947
4
Gasket, Dust Cover
610948
5
Cam, Breaker
30552
6
Breaker Assembly
30547A
7
Washer
610385
8
Nut
610408
9
Breaker Fastening Screw & Washer
29181
10
Condenser Fastening Screw
610593
11
Terminal, Ground
33356
14
Wire, lgnition Lead
30554
15
Condenser
30548B
16
Core & Plate Group
30545
18
Felt, Cam Wiper
30549
19
Clip, Coil Locking
31311
