> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 3000 > 643/38437 > 9900001 > Engine Assy. (Cont.)

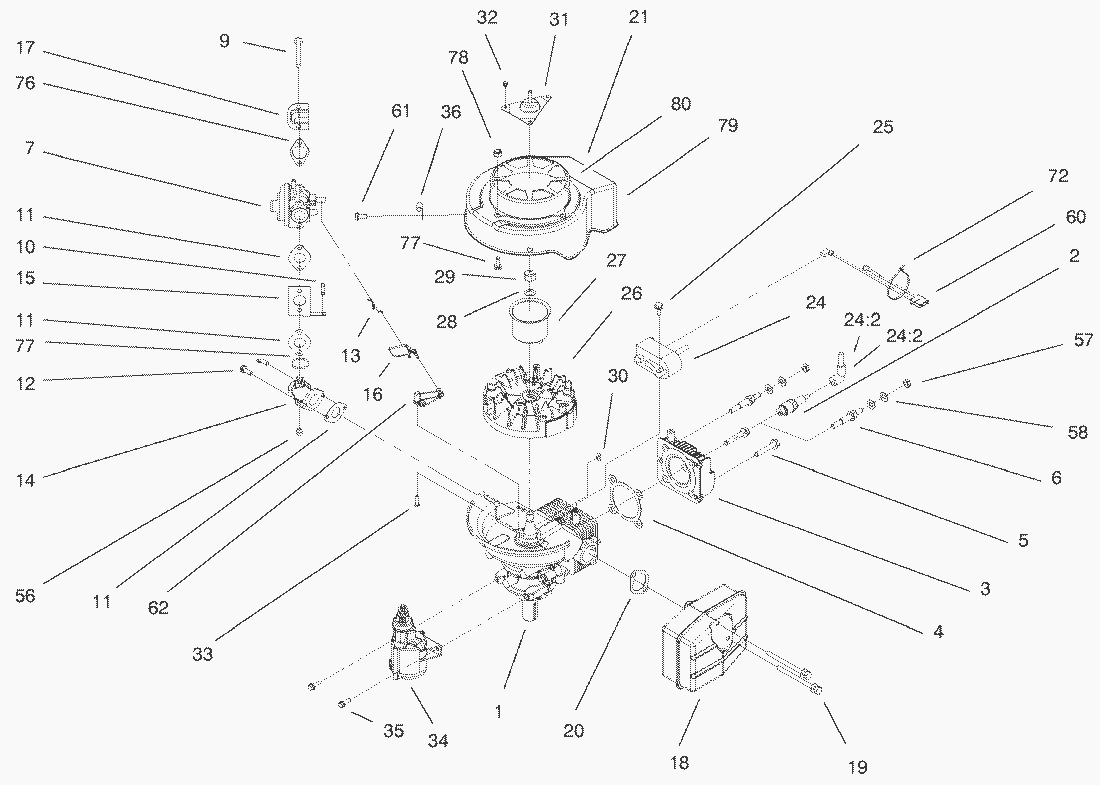

Spare Parts Lists for Toro Roth / TORO Engine Assy. (Cont.)




spare parts list


pos.decriptionspare part number
60Wire Harness95-7618
61Screw700094
62Mount-Vane95-1765
72Tie Strap317893
76DICHTUNG81-0090
77Machine Screw3290-321
78Nut3296-2
79Shroud (Model 38432, 38433)95-1780-03
79Shroud (Model 38437, 38438)95-1793-03
80Recoil95-1781
