> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 3000 > 643/38437 > 9900001 > Shroud Assy.

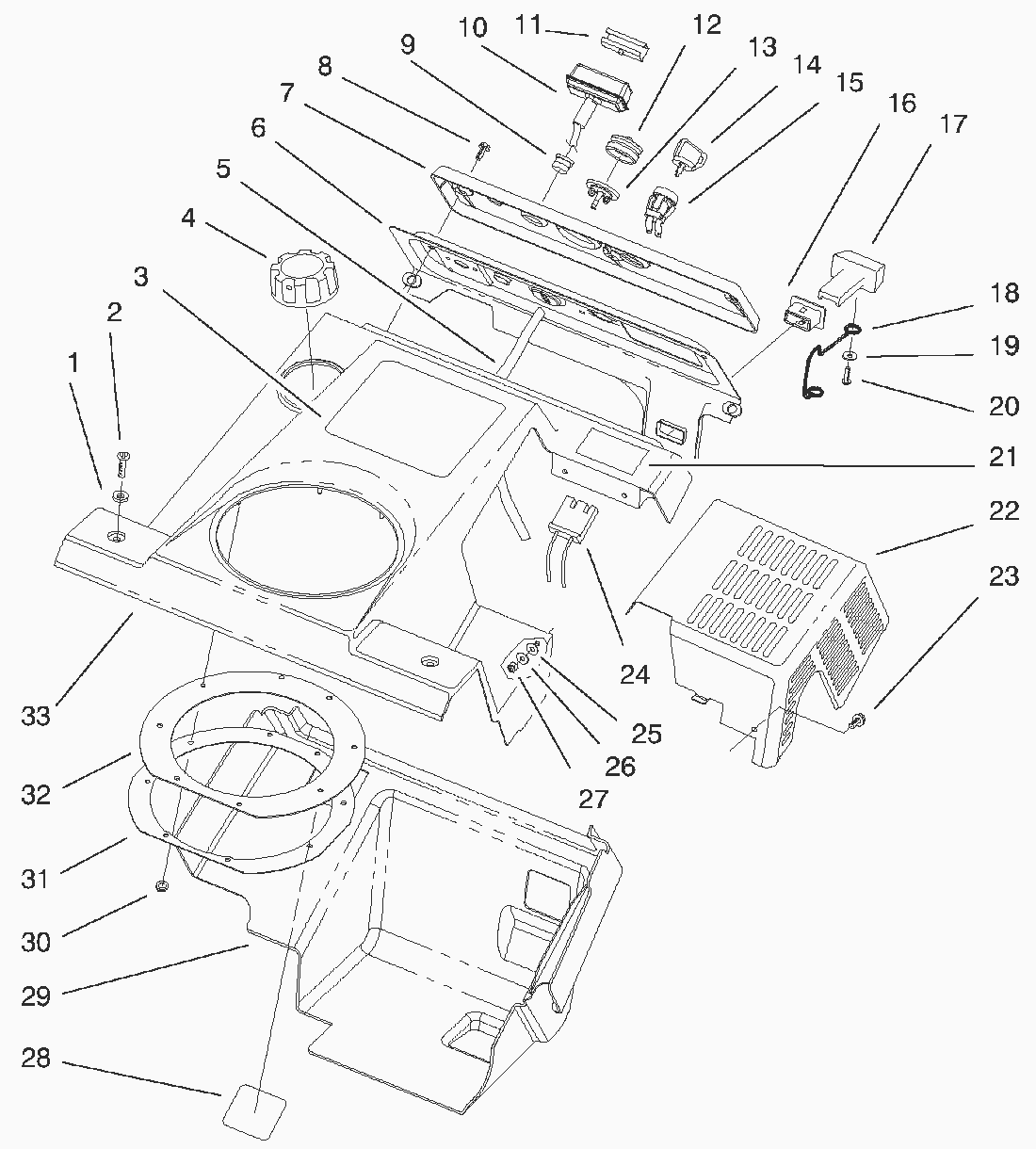

Spare Parts Lists for Toro Roth / TORO Shroud Assy.




spare parts list


pos.decriptionspare part number
1Washer3256-22
2Screw-Phillips3250-32
3Decal-Ccr3000 (Model 38432, 38433)99-3246
3Decal-Ccr3000e (M0del 38437, 38438)99-3247
4Gas Cap Assembly55-3573
5Hose-Primer98-1372
6Panel-Control55-9490-03
7Nameplate-Control (Model No. 38180)55-9350
7Name Plate Control (Model No. 38185)61-4410
7Name Plate Control (Model No. 38186)94-2569
7Nameplate-Control (Model No.38181)94-2570
8Screw-Self Tapping32144-112
9Guide-Starter Rope55-9410
10Handle-Starter612825
11Clip-Rope612824
12Bulb-Primer66-7460
13Body-Primer44-2750
14Key-Ignition63-8360
15Switch40-5940
16Fitting-Choke Control55-8820
17Control-Choke (Model No. 38180)55-8810
17Control-Choke (Model No. 38180C)55-8811
18Linkage-Choke95-7439
19Washer3256-49
20Screw-Pan Hd.32144-111
21R-Tek Decal98-1373
22Shield-Heat55-9210-03
23Screw-Hex. Hd.32105-8
24Connector Body218-532
25Washer-Rubber55-9660
26Washer3256-14
27Locknut3296-12
28Decal-Warning (Model No. 38185C)61-4790
29Shroud-Lower94-9919
30Pushnut3290-474
31Retainer-Chute Seal55-9540-03
32Seal-Chute55-9260
33Shroud-Upper55-8781
