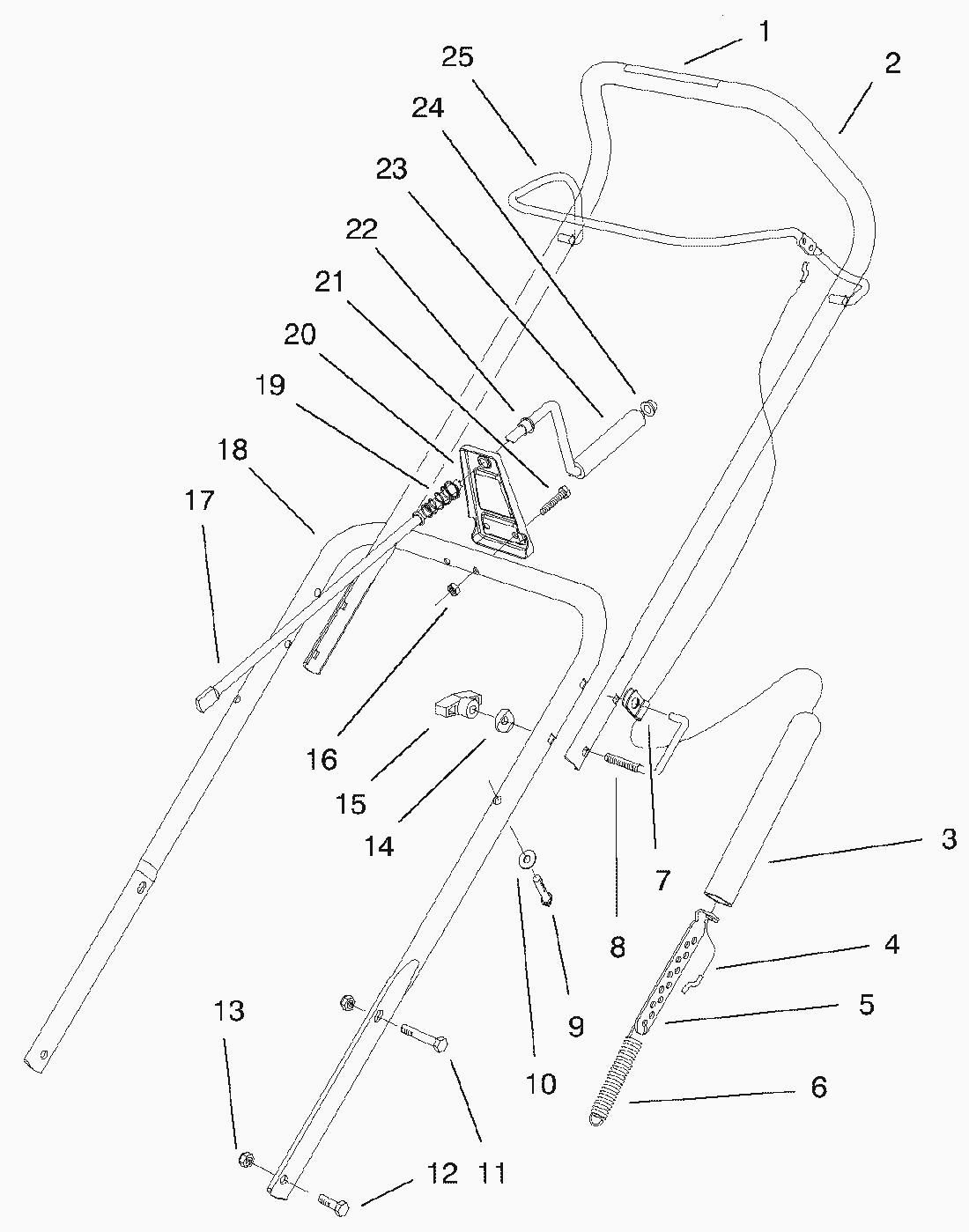

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
1	Decal-Rotor Drive	66-6870
1	Decal-Rotor Drive	94-2577
2	Upper Handle Assembly (Incl. ref.	95-2669
2	ASM-Handle (Model 38438, 38433)	98-2272
3	Cover-Spring	55-9390
4	Cable-Clutch	55-9322
5	Adjuster-Clutch Cable	55-9380
6	Spring-Extension	55-9270
7	Clamp-R	2412-112
8	Lock-Handle	98-2266
9	Machine Screw-Hex Hd.	61-8640
10	Washer	3-7501
11	Capscrew	322-9
12	Capscrew	322-3
13	MUTTER	3296-29
14	Washer-PM	75-9130
15	DREHKNOPF	19-4050
16	MUTTER	3296-42
17	Rod-Chute Crank	55-9140
18	Handle-Lower	55-9121-03
19	Spring-Compression	55-9440
20	Support-Chute Crank	55-9090
21	Screw-Hex. Hd.	321-13
22	Nyliner	256-249
23	Chute Control Grip	40-8230
24	Push-On Speed Nut	3290-320
25	Bar-control	98-2264-03
