Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CR 1000
>
603/38195
>
0000001
>

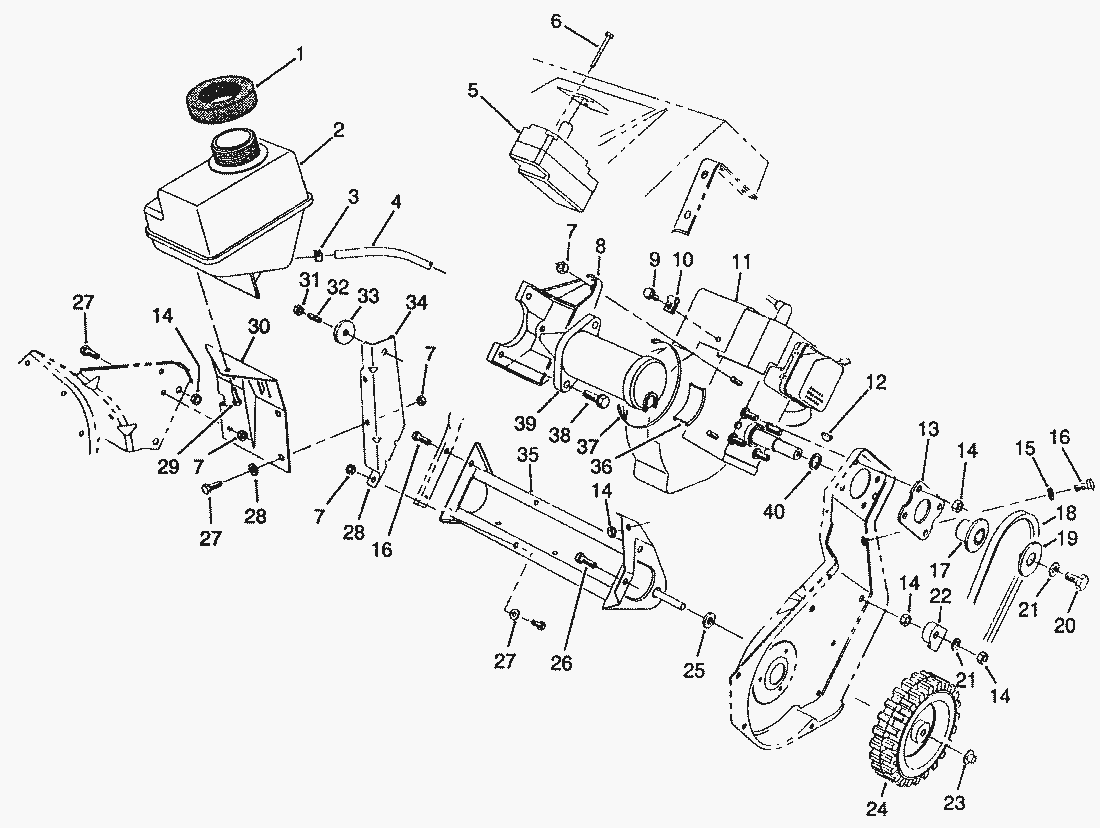

Engine Assy. (Model No. 38195 only)
Spare Parts Lists for Toro Roth / TORO Engine Assy. (Model No. 38195 only)
pos.
decription
spare part number
1
Seal-Tank
55-9310
2
Tank-Fuel
71-5020
3
Clamp
2412-86
4
Hose-Fuel
49-2482
5
6
Thread Forming Screw
32144-27
7
MUTTER
3296-42
8
Bracket-Motor Mounting
51-2990
9
Screw Thread Forming
32144-10
10
Cable Clamp
2412-65
11
12
Woodruff Key
3257-3
13
Plate-Engine
71-5290
14
MUTTER
3296-29
15
Washer
3256-23
16
Capscrew
322-3
17
Hub-Sheave
71-5050
18
Belt-Drive
71-5380
19
Cap-Sheave
71-5060
20
Screw-Locking Hex. Hd.
3235-6
21
Washer-Flat
3256-71
22
Guide-Cable
71-5280
23
Push-On Speed Nut
3290-320
24
Wheel
23-3250
25
Spacer-Wheel
71-5440
26
Hex Hd. Capscrew
322-5
27
Capscrew
321-4
28
Washer
3256-22
29
Screw-Slotted Flange Hd.
32144-53
30
Bracket-Fuel Tank
71-5220
31
Lock Nut
32152-4
32
Stud
38-8710
33
Washer-Engine Support
71-5320
34
Support-Engine
71-5210
35
Frame Assembly
71-5200
36
Motor Support-Rear
28-9120
37
Strap-Tie Down
3290-379
38
Thread Forming Screw
32144-26
39
Starter Motor Assembly (Incl. Ref.
28-9140
40
Flatwasher
7-3590
