> Roth / TORO > Hand operated > Snowthrower > Two stage > 1332 PowerShift > 630/38087 > 210000001 > Engine Assy. OHSK 130-223819C (only ON: 38087)*

Spare Parts Lists for Toro Roth / TORO Engine Assy. OHSK 130-223819C (only ON: 38087)*




pos.decriptionspare part number
35774A
Ring Set, Piston (.010 oversize)35780
Screw, Hex Washer Hd.650832
Screw, Hex Washer Hd.650833
Ring Set, Piston (.020 oversize)35781
35775A
Piston, Pin & Ring Set (.020)35778A
Piston, Pin & Ring Set (.010)35777A
Screw, Sternantrieb T-15651007
Screw651028
&rew-Hex. Flange Hd.650697A

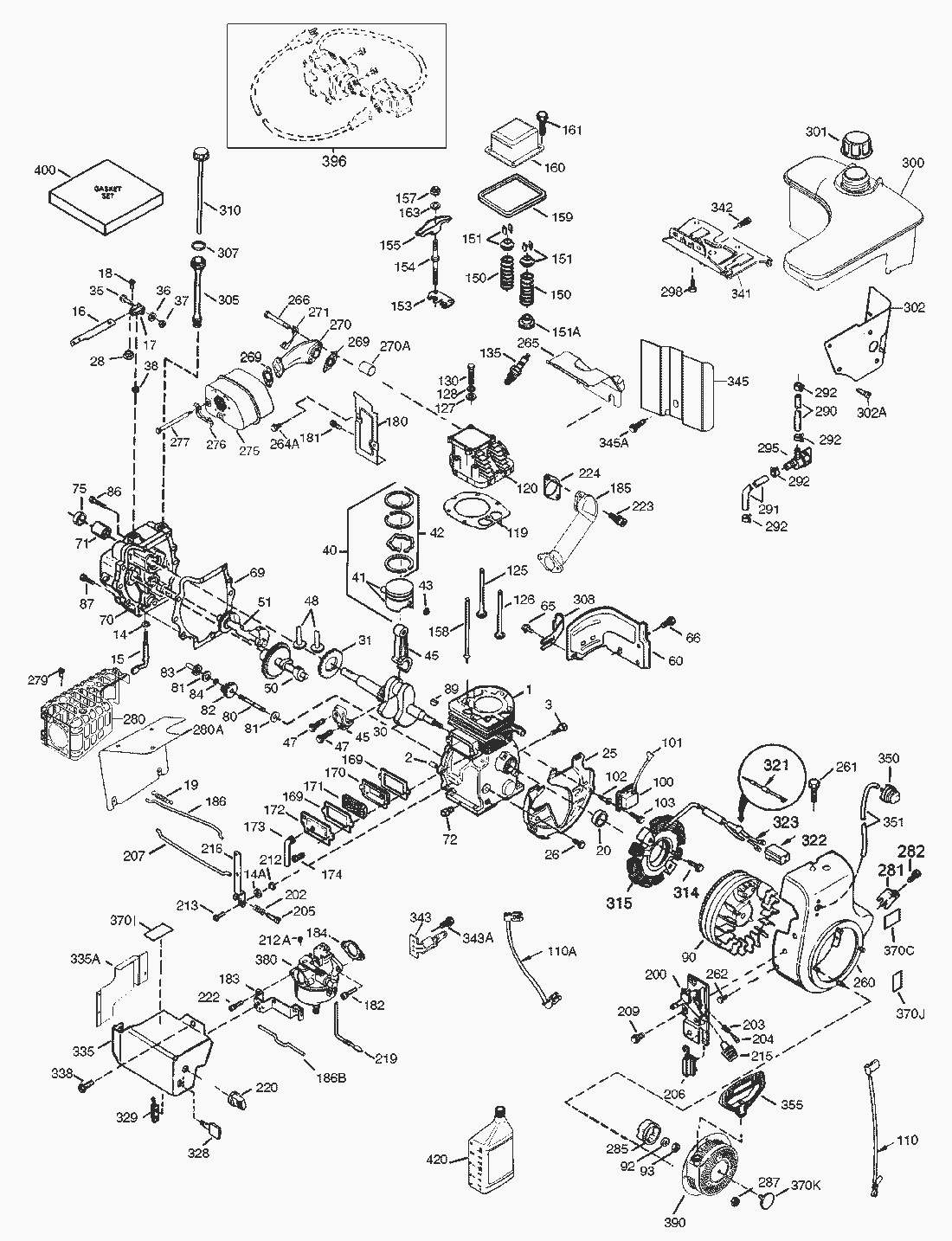

spare parts list


pos.decriptionspare part number
137083
2Pin, Dowel27652
3Screw, Hex Hd. Shoulder650820
14Washer, Flat28277
14Washer651057
15Governor Rod (Incl. Ref.35685
16Governor Lever (Incl. 212A)35686A
17Clamp, Governor Lever29916
19Spring-Extension35688
20Seal, Oil35319
25Blower Housing Baffle36460
26Screw, Hex Washer Hd.650561
28Locknut, Hex30322
30Crankshaft36706
31Gear-Counterbalance35327
35Screw, Hex Washer Hd.29826
36Lockwasher, E.T.29918
37Locknut, Hex29216
38Ring, Retaining29642
40Piston, Pin & Ring Set (Std.)35776A
4135773A
42Ring Set, Piston (Standard)35779
43Retaining Ring, Piston Pin35772
45Rod Assembly-Connecting (Incl. ref.36898
47Connecting Rod Bolt651033
48Lifter-Valve35313
50Camshaft35682A
51Weight-Counterbalance35315A
60Extension-Blower Housing35316A
65Screw, Hex Washer Hd. Self-tap.30200
66Screw, Fil. Hd. Sems30063
69Gasket-Cylinder Cover35683
7035684A
71Bushing, Crankshaft35377
72Plug, Sq. Hd. Pipe, 1/4-18 (Oil Drain)27642
75Seal, Oil35319
80Shaft-Governor35751
81Washer-Flat35479
82Gear-Asm Governor35321
83Spool-Governor35322
84Ring, Retaining29193
89Key, Flywheel32589
90Flywheel w/Ring Gear OHSK120-222023E Only611094
92Washer, Lock650880
93Nut, Flywheel650881
100Solid State Ignition35135A
101Cover, Spark Plug610118
102Solid State Mounting Stud651024
110Ground Wire35187
110Ground Wire37047
119Cylinder Head Gasket36932
120Cylinder Head (Incl. 151A)37491
125Exhaust Valve (Std.)36934
125Exhaust Valve (1/32)36936
126Intake Valve (Std.)36935
127Washer, Flat650691
128Washer-Belleville650690
135Resistor Spark Plug (RN4C)34645
150Spring-Valve33507
151Keeper-Valve Spring33508
151Seal Ass y-Intake Valve35862
153Push Rod Guide35949
154Rocker Arm Stud650945
155Rocker Arm35950
157Lock Nut650947
158Rod-Push35466
159Rocker Arm Cover Gasket35952
160Rocker Arm Housing35953A
161Screw, Fil. Hd. Sems30063
163Washer650890
169Gasket-Breather27896A
170Body, Breather28423
171Element, Breather28424
172Cover, Valve Spring28425
173Tube-Breather35350
174Screw, Fil. Hd.650128
180Blower Housing Extension35954
181Screw, Hex Washer Hd. Self-tap.30200
