> Roth / TORO > Hand operated > Snowthrower > Two stage > 1332 PowerShift > 630/38087 > 210000001 > Handle and Control Assy.

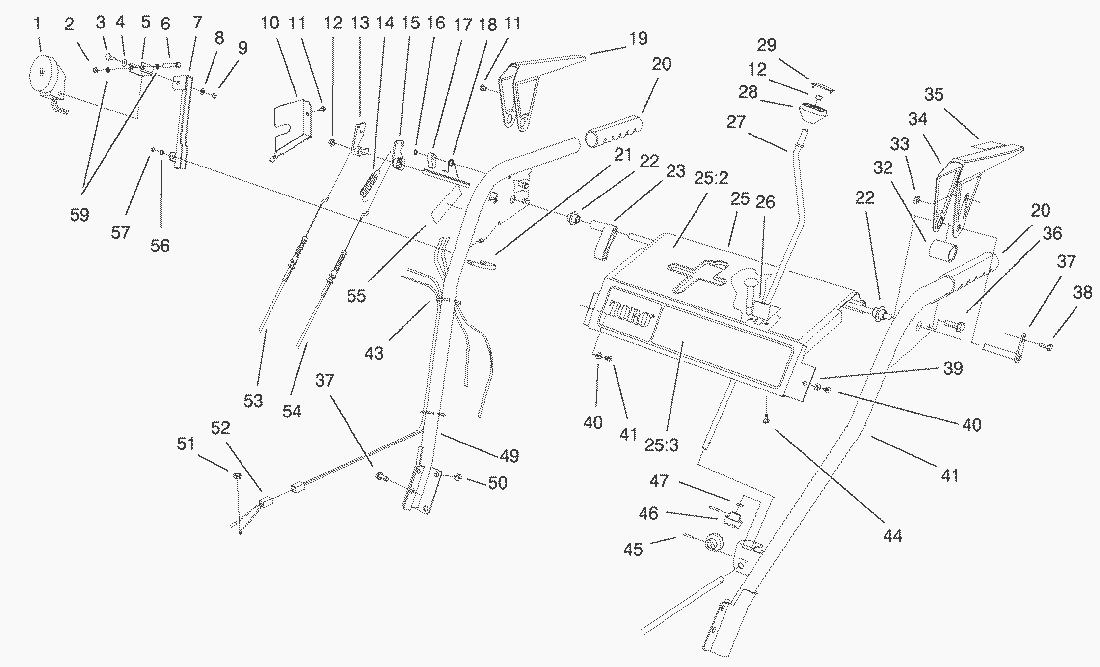

Spare Parts Lists for Toro Roth / TORO Handle and Control Assy.




spare parts list


pos.decriptionspare part number
1Headlamp Assembly Complete (Incl. Ref.54-9871
2Nut-Flange Lock32128-35
3Bolt-Carriage3231-2
4Washer3256-26
5Bracket-U218-556
6Screw-Hex. Flange Hd.322-13
7Mount-Light (Model 38559)68-7110-03
8Washer-Lock3253-21
9Nut-Hex3217-7
10Cover-Lock, Lever63-2170-03
11Screw2210-250
12Push-On Speed Nut3290-320
13Tang-Locking62-0300
14Spring-Extension88-0810
15Cam-Release62-0290
16Ring-Retaining32151-66
17Latch-Lock62-0280
18Spring-Torsion63-2910
19Lever-Traction, RH62-1050-03
20Handlegrip66-7850
21Bolt-U68-7140
22Bushing-Lever62-1070
23Lever-Trip62-1640
25Control Panel ASM (only on: 38087)100-3579
25Control Panel ASM (only on: 38592)100-3578
252Decal-Control (Only On: 38546)99-3229
252Decal-Top, Panel (Only On: 38542)99-3230
253Decal-Front Panel (only on: 38087)100-3440
253Decal-Panel Front (only on: 38592)100-3337
26Plate-Guide62-1490
27Rod-Chute Crank63-2160
28Knob-Chute Control62-1320
29Cover-Knob62-1520
32Spacer-Traction Lever63-3380
33Nut3296-2
