Headlamp Assy. No. 54-9871 (only ON: 38087)

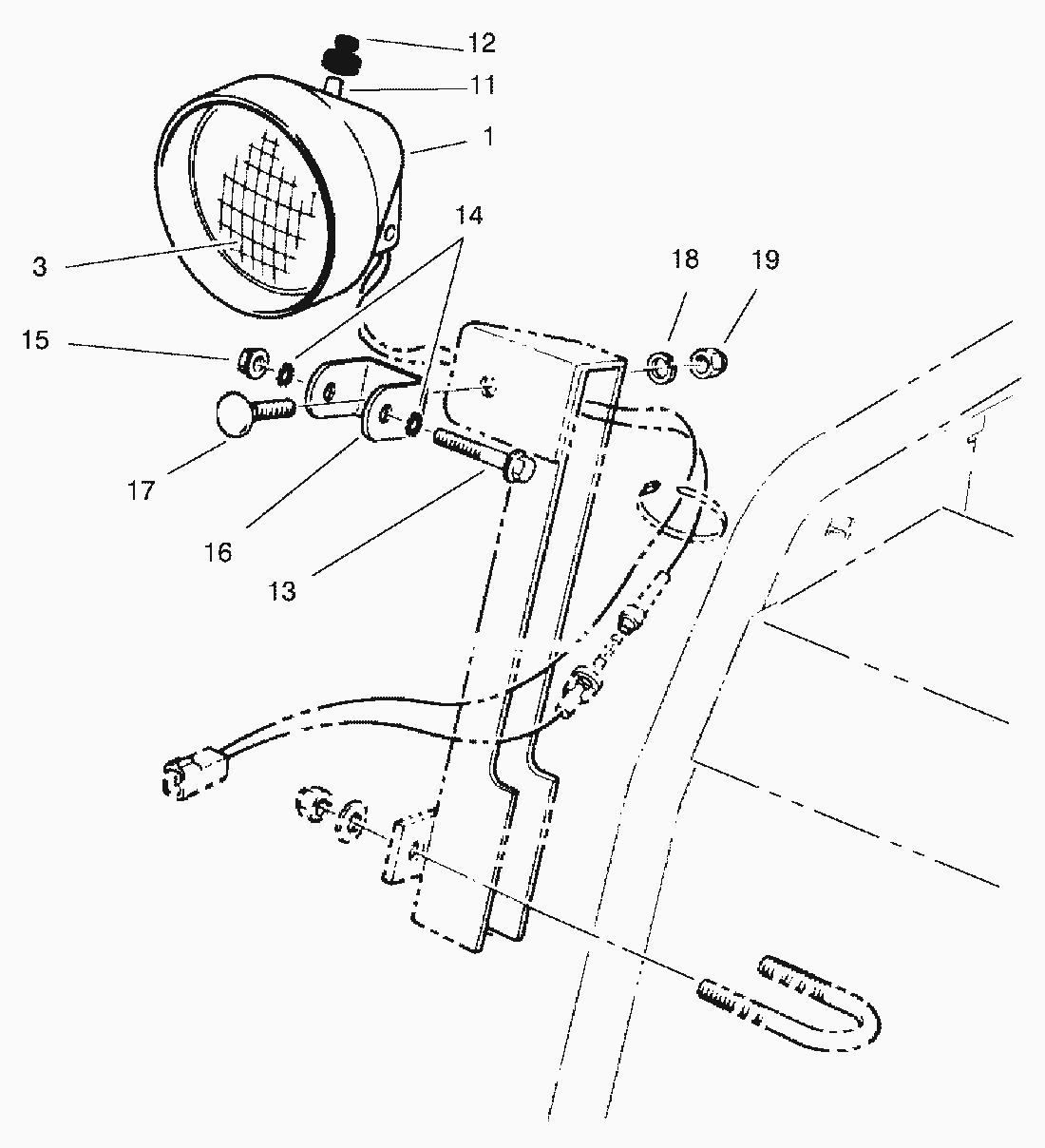

Spare Parts Lists for Toro Roth / TORO Headlamp Assy. No. 54-9871 (only ON: 38087)
pos.
decription
spare part number
1
Bucket-Headlamp
218-552
3
Lens-Sealed Beam
218-16
11
Switch Assembly
218-553
12
Boot-Switch
92-6033
13
Screw-Hex. Flange Hd.
322-13
14
Lockwasher
3255-8
15
Nut-Flange Lock
32128-35
16
Bracket-U
218-556
17
Carriage Bolt
3231-22
18
Washer-Lock
3253-21
19
Nut-Hex
3217-7
