Spare Parts Lists for Toro Roth / TORO Engine Assy. OHSK90-221412A (only ON: 38079)(Cont.)

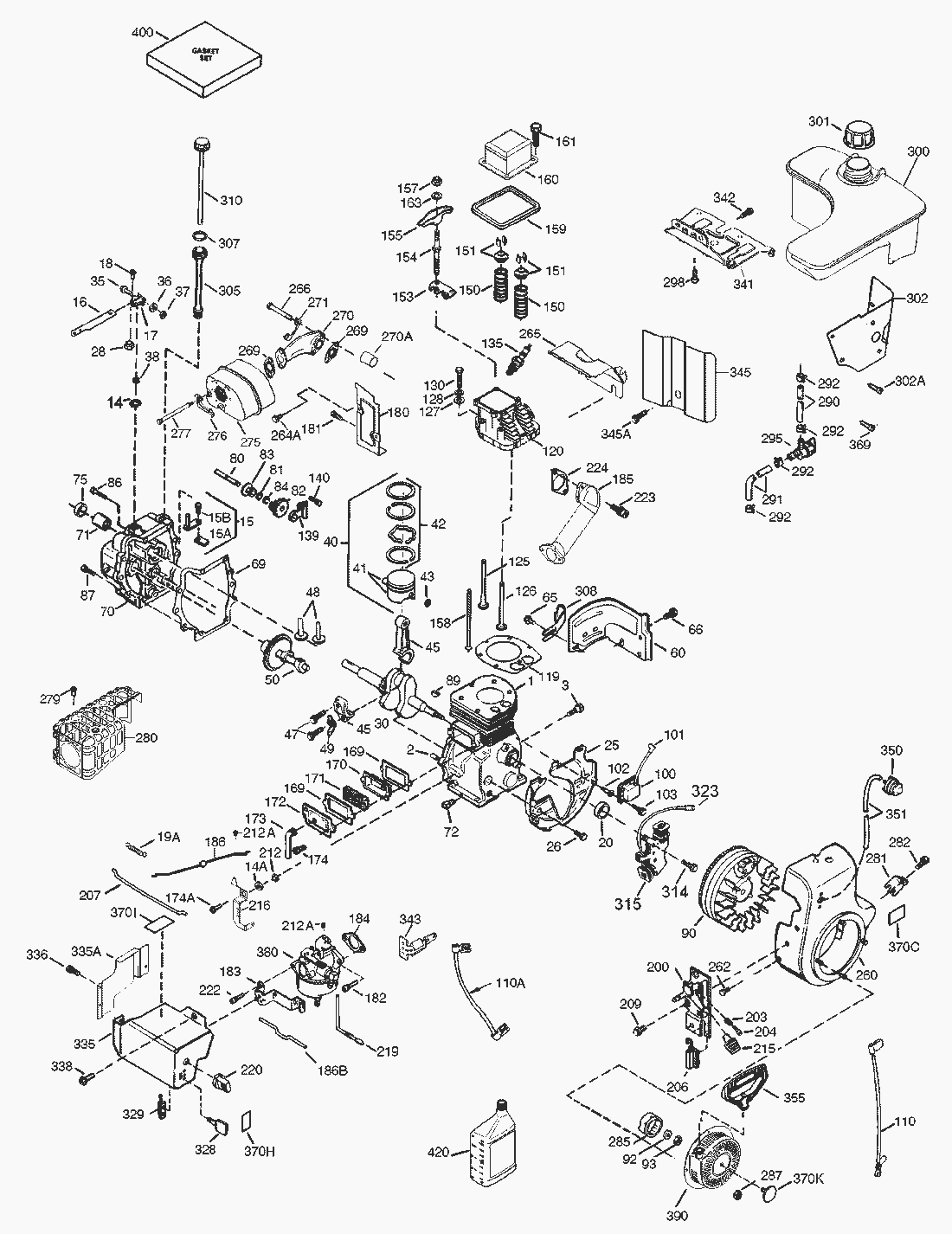

spare parts list


pos.decriptionspare part number
186Spring-Choke36653
200Bracket-Control (Incl. Ref.35702
203Spring, Compression31342
204Screw651029
206Terminal Assy.610973
207Throttle Link37262
209Screw, Hex Washer Hd. Thread Cutting650821
212Bushing30773A
212Throttle Link Bushing36288
215Knob-Control35440
216Bellcrank Lever37260
219Rod-Choke35689
220Knob, Choke35438
222Screw, Fil. Hd.28820
223Screw650971
224Gasket-Pipe33515A
260Blower Housing37092A
262Screw, Phil. Hex Hd.29747B
264Screw, Hex Washer Spinlock Hd., Thread Forming650738
265Cylinder Head Cover37086
266Screw650876
269Gasket-Exhaust35762
270Exhaust Manifold37263
270Exhaust Port Liner35829A
271Plate-Locking35293
275Muffler37264
276Locking Plate36348
277Screw650877
279Screw (Model 38591 Only)651011
280Heat Shield37106
281Cover, Starter Bubble33013
282Screw, Pan Hd. Taptite650760
285Starter Cup35985B
287Nut & Lockwasher29752
290Line-Fuel30962
291Line, Fuel29774
292Clamp, Fuel Line26460
295Valve-Shut-Off35857
298Screw, Hex Washer Hd., Self-tap650665
300Fuel Tank (Incl. Ref.37099
301Cap-Fuel Tank36246
302Fuel Tank Extension37098
302Screw, Hex Washer Hd. Thread Cutting650821
305Tube-Oil Fill35574
307O Ring35499
308Clip-Oil Fill35539
310Dipstick35700
314Screw-Hex. Hd.650873
315Alternator Coil Assembly611111
323Terminal611118
328Ignition Keys35062
329Terminal Assy.610973
335Carburetor Cover, Front37096
335Carburetor Cover37087
336Screw, Hex Washer Hd. Thread Cutting650821
338Screw, Hex Washer Hd. Thread Cutting650821
341Bracket-Fuel Tank37093
342Screw792028
343Key Switch Bracket35079
345Heat Baffle37097
345Screw, Hex Washer Hd. Thread Cutting650821
350PrimerAsm.570682A
351Line-Primer32180C
355Handle-Mitten Grip Starter590574
370Primer Decal36501
370Choke Decal37226
370Warning Decal37119
380Carburetor (Incl. Ref.640169
390Rewind Starter (Optional)590749
400Gasket Set37257
420SAE 5W30 4-Cyc. Eng. Oil730226A
