> Roth / TORO > Hand operated > Snowthrower > Two stage > 924 PowerShift > 628/38079 > 200000001 > Lower Traction Assy.

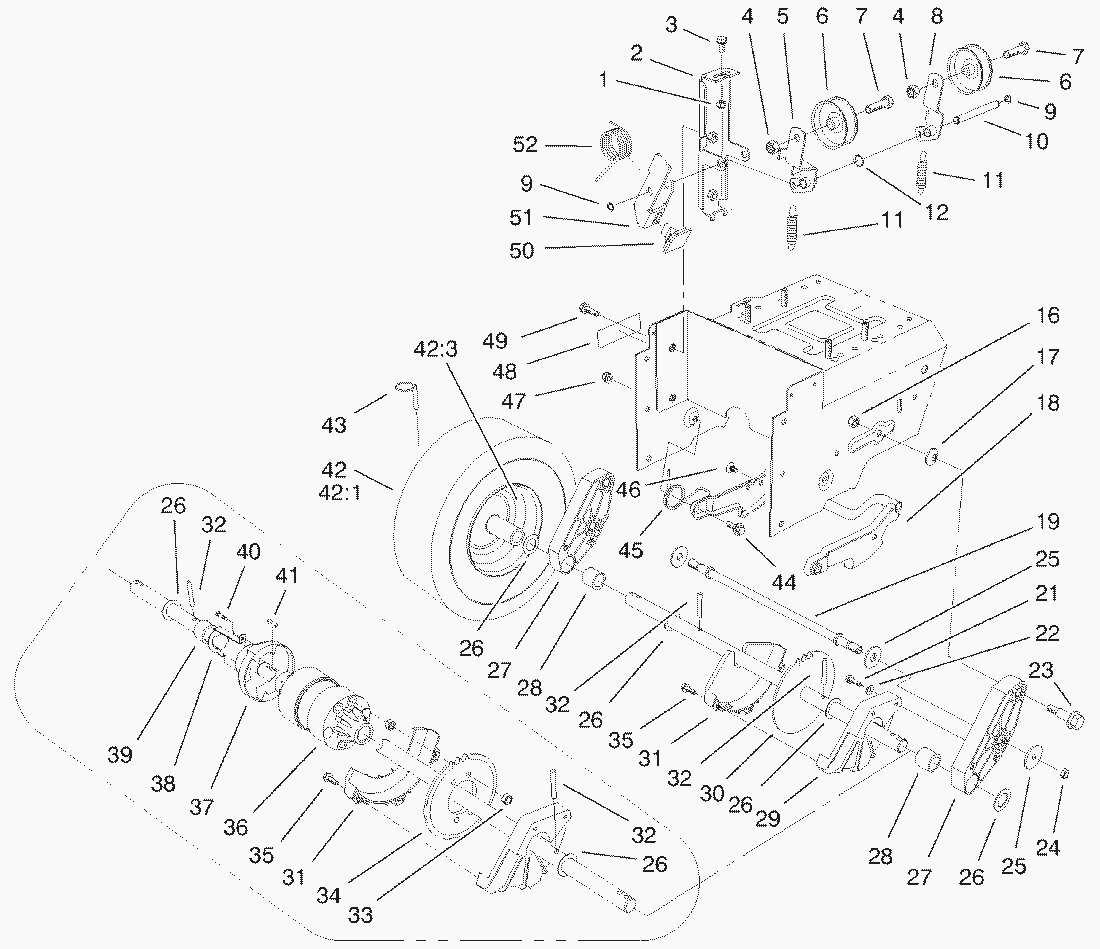

Spare Parts Lists for Toro Roth / TORO Lower Traction Assy.




spare parts list


pos.decriptionspare part number
1MUTTER3296-42
2Bracket-Idler Arm63-2850
3Hex Flange Capscrew3234-13
4Nut-Lock3296-59
5Arm-Impeller Idler93-8046
6Pulley Idler3-4244
7Screw-Cap Hex Hd.323-7
8Arm-Traction Ider93-8045
9Ring-Retaining32120-46
10Pin-Idler62-0970
11Spring-Extension63-2870
12Bushing-Idler3256-38
16Locknut3296-39
17Washer-Belleville3290-461
18Latch ASM62-0470-03
19Rod-Latch66-7720
21Screw Thread Forming32144-4
22Washer-Plain3256-1
23Bolt-Shoulder62-1330
24Nut-Lock3296-23
25Washer63-3340
26Thrust Washer252-80
27Pivot Arm Assembly (Incl. Ref.66-7740
28Bushing-Axle63-2250
29Guard-Chain L.H.62-1010
30Axle Assembly63-2111
31Guard-Chain R.H.62-1000
31Guard-Chain R.H.68-9310
32Roll Pin32121-9
33Nut-Lock3296-47
34Sprocket-27T (Used on Models 38510, 38513, 38540 & 38543)68-9271
35Screw94-4496
36Housing-L.H. (Model 38590 Only)68-9200
37Coupling-Differential68-9250
38Spring-Lockout68-9260
39Spacer (Model 38590 Only)95-7930
40Screw-Hex. Washer Hd.32144-73
41Key-Woodruff3257-41
42
