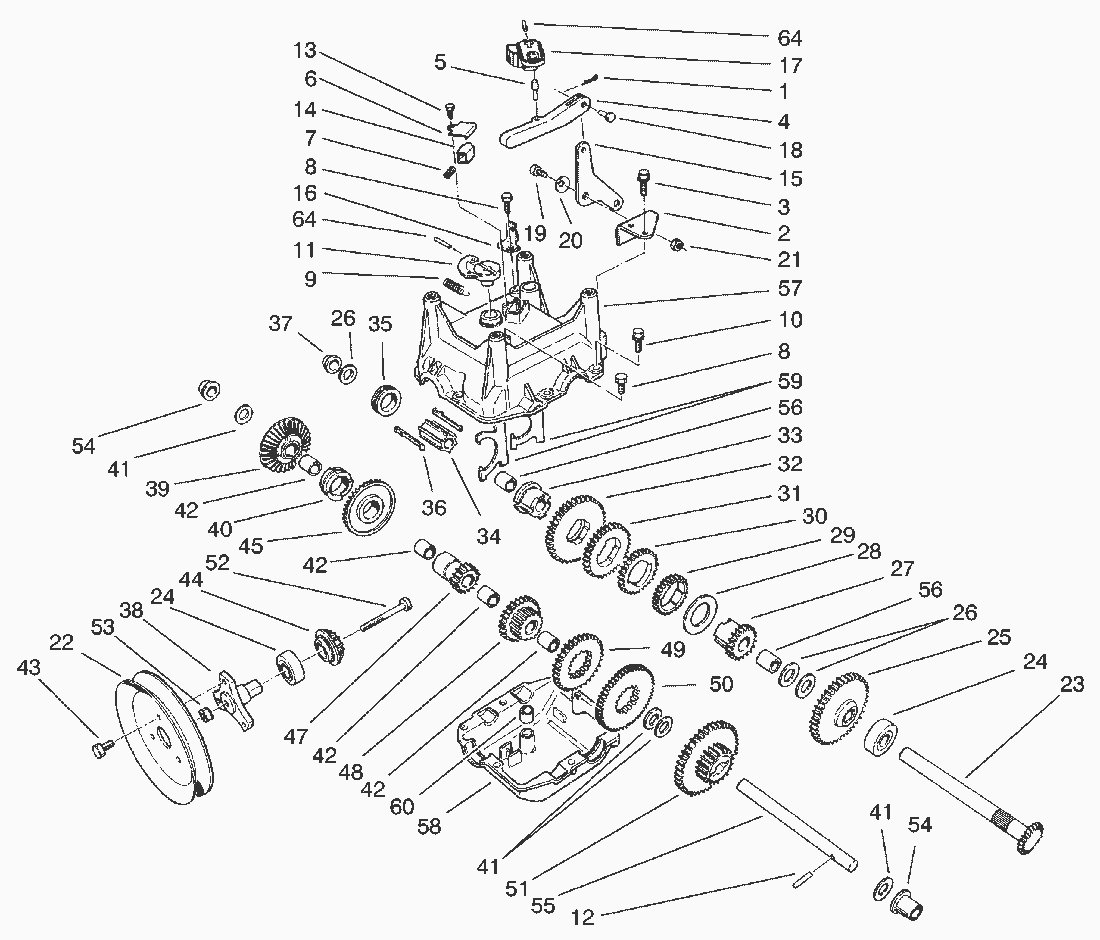

Traction Gearcase Assy. No. 66-8030 (Cont.)
Spare Parts Lists for Toro Roth / TORO Traction Gearcase Assy. No. 66-8030 (Cont.)
pos.
decription
spare part number
53
Flange Locknut
32128-32
54
Bushing-Flange
62-1170
55
Shaft-Intermediate
62-0330
56
Bushing-Output
62-1350
57
Gear Case-Upper
62-0490
58
Gear Case-Lower
62-0480
59
Yoke-Shift
62-1040
60
Bushing-Yoke
29-9570
64
Pin-Roll
32121-120
